Summary of Contents for Soluna 10K Pack HV
-

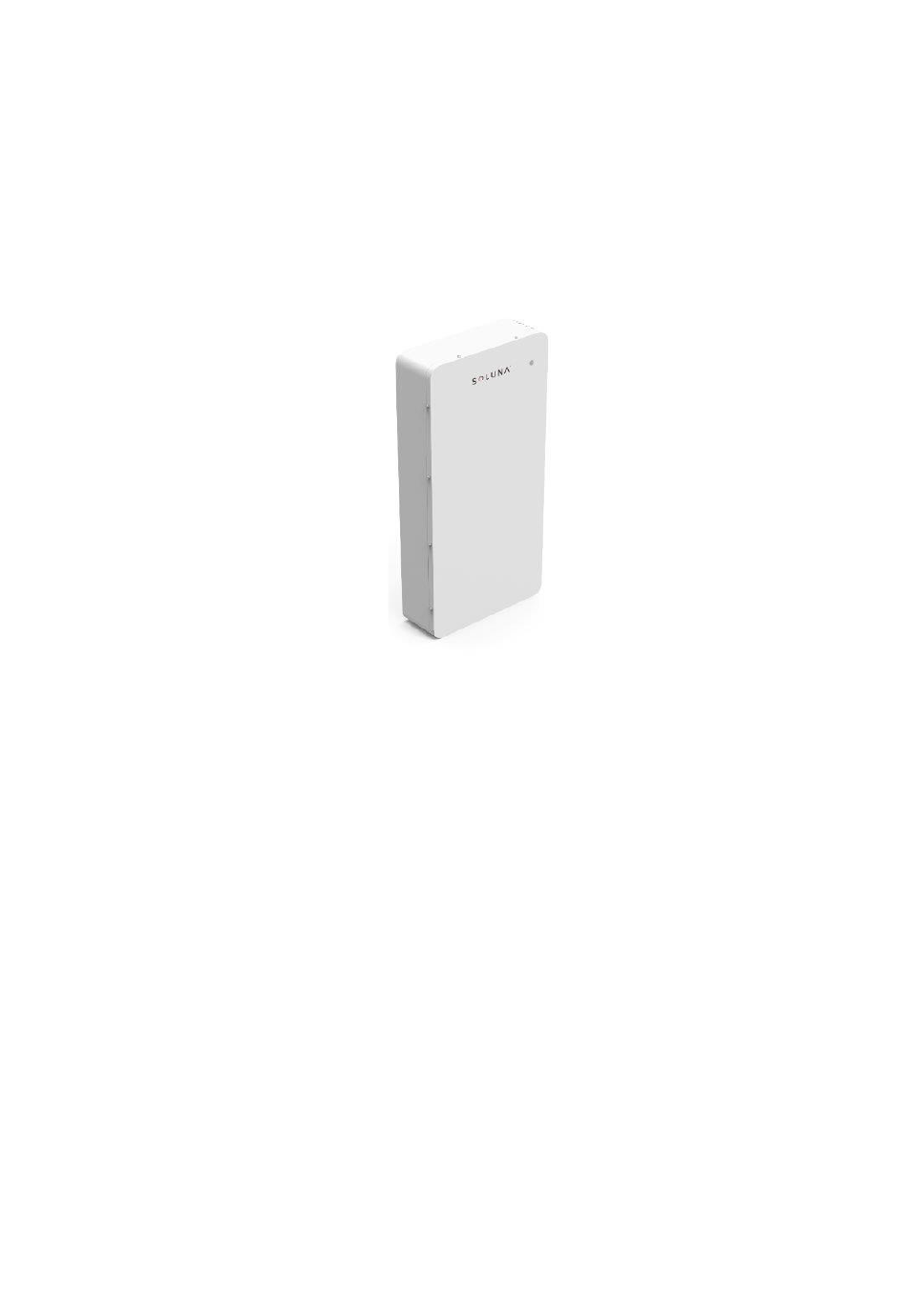

Page 1: Installation Manual

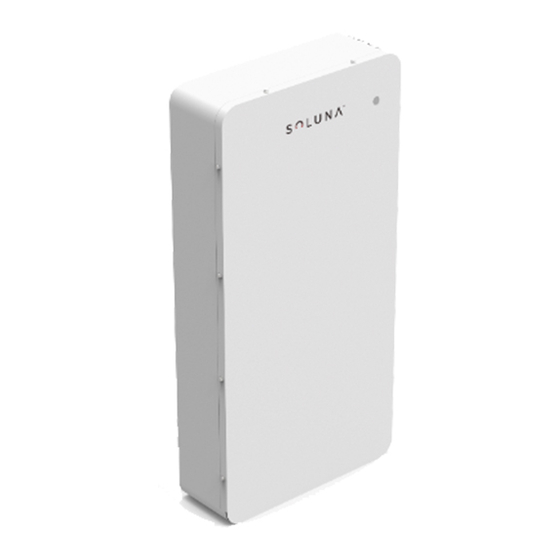

Lithium Battery Pack SOLUNA 10K Pack HV Suitable for indoor installation Soluna Australia Pty Ltd ACN 634 963 296 February 2021 Version 2.1 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 1 of 26 Published date: February 2021... -
Page 2: About This Manual
About this manual This manual describes how to install the Soluna 10K PACK HV battery system (hereafter referred to as 'the BS'). Please read the manual in its entirety before installing the BS and follow all instructions throughout the installation process. -
Page 3: Table Of Contents
LECTRICAL CONNECTION LECTRICAL CONNECTION PROCEDURES PERATING INSTRUCTIONS ONSUMER TART UP HUT DOWN PROCEDURE ARE AND MAINTENANCE IRMWARE UPGRADE ROUBLESHOOTING ONTACT US 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 3 of 26 Published date: February 2021... -
Page 4: Safety Precautions
The BS should be recycled, not be disposed of with household waste, at the end of its working life. For more information, contact Soluna Australia. There is a risk of physical injury or damage to the BS if the installation requirements are not followed and/or the BS is mishandled. -
Page 5: Safety Instructions
Do not subject the BS to any strong force. Do not insert foreign objects into any part of the BS. Do not use solvents to clean the BS. 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 5 of 26... -
Page 6: Response To Emergencies
Response to emergencies The Soluna 10K PACK HV BS comprises multiple batteries that are designed in such a way as to prevent hazards resulting from failures. However, Soluna Australia cannot guarantee the absolute safety of the BS. Leaking batteries If the BS leaks electrolyte, avoid contact with the leaking liquid or gas. The electrolyte is corrosive –... -
Page 7: Accredited Installers
The following safety gear should be worn when dealing with the BS. Item Photo Name Insulated gloves Safety goggles Safety shoes 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 7 of 26 Published date: February 2021... -
Page 8: Product Introduction
2. Product introduction The Soluna 10K PACK HV is an NCM-type lithium battery product with a battery management system ('BMS'). This high-voltage BS features CAN communication, as well as under-voltage, over-voltage, over-current, over-temperature and under-temperature protection functions. It is characterised by high energy density, long life, safety and reliability and is environmentally sustainable. -
Page 9: Packing List
Note: retain packaging for future storage or transportation. Packing list The following table lists each item and the numbers of these included. If anything is damaged or missing, contact Soluna Australia or your distributor. Item Name Remark... -
Page 10: Installation Tools
All tools should be appropriately insulated to prevent accidental electric shock or short circuits. Use adjustable tools and measuring instruments that are certified for precision and accuracy. 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 10 of 26... -
Page 11: Outline Dimensions (Mm)
Figure 2.1 – outline dimensions. Depth Width Width (mm) 647 ±2 Depth (mm) 227 ±2 Height (mm) 905 ±3 Weight (kg) 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 11 of 26 Published date: February 2021... -
Page 12: Technical Data
Cell – UL1642; Battery – IEC62619 & UL1973 Certificates AS/NZS 60950 Hazardous materials classification Class 9 Transportation UN38.3 Ingress rating IP54 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 12 of 26 Published date: February 2021... -
Page 13: Appearance
Name Remark ① Cable entry ② Power ON/OFF ③ Upper handle ④ Lower handle ⑤ Grounding ⑥ Grounding ⑦ Power light 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 13 of 26 Published date: February 2021... -
Page 14: Wiring Port
Wiring port The Soluna 10K PACK HV's wiring port is visible once the cover cap has been opened (see diagram below for details). Figure 2.3 – Wiring port. Number Name Remark ① CAN 1 port For external communication (inverter) ②... -
Page 15: Installation
Note: for detailed requirements concerning the width of the maintenance channel, escape routes, etc., refer to applicable standards for the country/region in which the BS is installed. 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 15 of 26... -
Page 16: Installation Requirements
Installation requirements The Soluna 10K Pack HV should be installed against a wall, with eight holes drilled into that wall to fix the BS mounting brackets. See the following diagram for details. Step 3: install the battery module. Step 1: drill holes in the wall. -
Page 17: Can Communication Interface (Can 1 And Can 2)
— — Note: CAN 1H/CAN 1L used for external communication (inverter); CAN 2H/CAN 2L used for internal communication (battery CAN ports). 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 17 of 26 Published date: February 2021... -
Page 18: Electrical Connection
Electrical connection Please refer to the following diagram for details for double pole isolation of the 10k pack HV battery systems. DP 40a 500VDC 10mm 10mm POS + BAT + NEG - 10mm 10mm BAT - CAN 1 Inverter CAN 1... -
Page 19: Electrical Connection Procedures
10mm x 5mm with a wire crimping tool. Heat-shrink sleeve should be applied to the exposed conductive crimp lug. 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 19 of 26 Published date: February 2021... - Page 20 3NM torque. Step 4. Lock the cover. Lock the terminal cover plate with a hexagon wrench (2.5 mm). 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 20 of 26 Published date: February 2021...
- Page 21 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 21 of 26 Published date: February 2021...
- Page 22 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 22 of 26 Published date: February 2021...
-
Page 23: Operating Instructions
To turn the BS off, push the breaker down. Note: CAN 1 is connected to the inverter for communication. 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 23 of 26 Published date: February 2021... - Page 24 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 24 of 26 Published date: February 2021...
-
Page 25: Care And Maintenance
5. Care and maintenance Keep the area around the BS clear of debris. The Soluna 10K Pack HV BS does not require pre-scheduled preventative maintenance – it is NOT designed to be opened. The unit will be replaced if a failure is diagnosed. -
Page 26: Troubleshooting
Within Australia 1300 126 888 Outside Australia +64 9886 9685 Email service@soluna.com.au www.soluna.com.au Head office 1/677 Murray Street Perth WA 6005 10K Pack HV Installation Manual © 2021 Soluna Australia Pty Ltd Page 26 of 26 Published date: February 2021...
