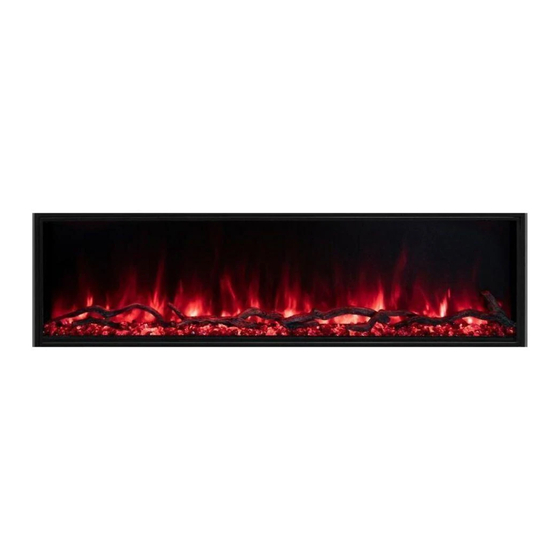

- Page 1 Landscape Pro Slim Series LPS-4414/INT • LPS-5614/INT • LPS-6814/INT LPS-8014/INT • LPS-9614/INT WORLD INSTALLATION/OWNERS MANUAL CE RATED FOR 220-240VAC 50/60HZ INSTALLATIONS SERIAL NUMBER:________________________________________...
- Page 2 USER INSTRUCTIONS LANDSCAPE PRO SLIM SERIES LPS - 4414/INT • LPS - 5614/INT • LPS - 6814/INT • LPS - 8014/INT • LPS - 9614/INT SAFETY INFORMATION AND OPERATIONS MANUAL Read these instructions completely before beginning installation. Failure to follow them could cause a heater malfunction resulting in serious injury and/or property damage.
-
Page 3: Table Of Contents
USER INSTRUCTIONS TABLE OF CONTENTS Important Instructions Service Parts Power Data Troubleshooting Product Guide Frequently Asked Questions Box Contents Cleaning and Maintenance Instructions Installation Wiring Diagram Operation IMPORTANT INSTRUCTIONS When using electrical heaters, basic 1. Read all instructions before installing or precautions should always be followed to using this heater. -
Page 4: Power Data
USER INSTRUCTIONS POWER DATA LPS-4414/INT LPS-5614/INT LPS-6814/INT LPS-8014/INT LPS-9614/INT Voltz/HZ AC 220-240V AC 220-240V AC 220-240V AC 220-240V AC 220-240V Amps 50/60Hz 9 Amps 50/60Hz 9 Amps 50/60Hz 9 Amps 50/60Hz 9 Amps 50/60Hz 9 Amps AC 220-240V AC 220-240V AC 220-240V AC 220-240V AC 220-240V... -
Page 5: Box Contents
INSTALLATION BOX CONTENTS 1 Fire Unit 1 Remote L-Metal Mounting 1 Glass Face Brackets 1 Trim Kit Logs 1 Owner’s Manual Acrylic Media Suction Cup... -
Page 6: Installation
INSTALLATION INSTALLATION WARNING: If the information in these To reduce the risk of fi re do not store or instructions is not followed exactly, a fi re use gasoline or other fl ammable vapors in or explosion may result causing property the vicinity of this or any other heater. - Page 7 INSTALLATION Fully recessed installation Model LPS-4414/INT 1130mm 613mm 153mm LPS-5614/INT 1436mm 613mm 153mm LPS-6814/INT 1741mm 613mm 153mm LPS-8014/INT 2046mm 613mm 153mm LPS-9614/INT 2452mm 613mm 153mm 1. This installation is optimized for a 2x6 framed wall. Prepare the framed opening according to the chart above.
- Page 8 INSTALLATION Half recessed installation 1. This installation is optimized for a 2x4 framed wall. Prepare the framed opening according to the chart on page 7. Provide a 13 amp (EU) or 10 amp (AU/NZ) circuit for hard wire install at the top right of the framed opening.
-
Page 9: Operation
. If the fi replace is on, this button will act as a reset and bring all Reset colors back to the default Modern Flames' signature color. This will cycle the heater between high, low and off . Heat All zones of the fi... -
Page 10: Service Parts
MAINTENANCE SERVICE PARTS ITEM PHOTO DESCRIPTION PRINTED CIRCUIT BOARD CONTROLS LOW MF-PRO-PCB VOLTAGE AND HIGH VOLTAGE FUNCTIONS AND TRANSFORMER WIFI MF-PRO-WIFI WIFI BOARD MF-PRO-HF-230 HEATER FAN 220-240V MF-PRO-PTC PTC HEATER 220-240V 1000/2000 WATTS MFSM230 SPINDLE MOTOR 220-240V 50/60 HZ MF-PRO-RC PRO SERIES RF REMOTE CONTROL OPTIONAL MF-PRO-WTC... - Page 11 MAINTENANCE SERVICE PARTS ITEM PHOTO DESCRIPTION MF-PRO-PIB POWER INDICATOR BOARD MF-PRO-NTC THERMOSTAT SENSOR MF-LPS-TK-44 MF-LPS-TK-56 MF-LPS-TK-68 TRIM KIT MF-LPS-TK-80 MF-LPS-TK-96 MF-LPS-F/LED-44 MF-LPS-F/LED-56 MF-LPS-F/LED-68 RGB FLAME LED BAR MF-LPS-F/LED-80 MF-LPS-F/LED-96 MF-LPS-EB/DL-44 MF-LPS-EB/DL-56 MF-LPS-EB/DL-68 RGB EMBER BED/DOWNLIGHT LED STRIP MF-LPS-EB/DL-80 MF-LPS-EB/DL-96 MF-LPS-SR-44 MF-LPS-SR-56 MF-LPS-SR-68 SPINDLE ROD FOR FLAME OR EMBER BED...
-
Page 12: Troubleshooting
MAINTENANCE TROUBLESHOOTING Problem Possible Cause Corrective Action A. Breaker tripped or circuit has A. Reset breaker, test circuit for no power power B. Turn power off at the main B. Internal component is frozen breaker for 60 seconds. Turn and needs to be reset Nothing comes on (touch screen, power back on. -
Page 13: Frequently Asked Questions
A. No, only the actual remote requires batteries. The rest of the fi replace runs entirely off of the main power supply. Q. How do I install the Optional Wall Control and Wi-Fi App? A. Optional wall control & Wi-Fi app instructions available for download on Modern Flames’ website, www.modernfl ames.com... -
Page 14: Cleaning And Maintenance Instructions
MAINTENANCE CLEANING AND MAINTENANCE INSTRUCTIONS There is very little maintenance involved with your electric fi replace. Please follow the few points below: • On a semi-annual basis unplug the machine from it’s power source, wait for the heating element to cool and dust the fi... - Page 15 MAINTENANCE DO NOT RETURN TO STORE! STOP STOP CALL US FIRST For immediate help with installation, product information or if your product arrives damaged, please call our toll free number at: AUSTRALIA/NEW ZEALAND 07 5630 6837 (Monday - Friday, 9:00AM - 4:00PM, AEST) Or email us at: info@modernfl...
- Page 16 ©2019 www.modernfl ames.com Please dispose of properly.
