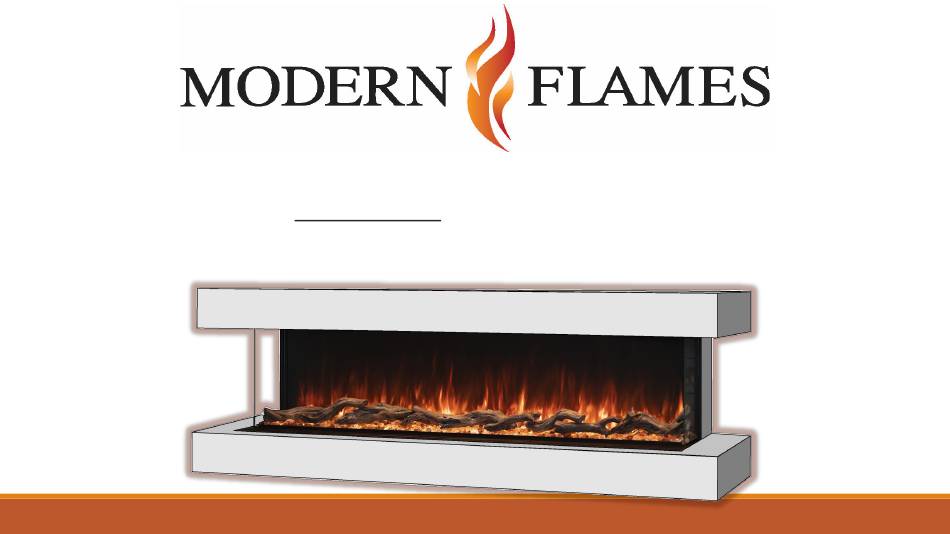

- Page 1 STUDIO SUITES WALL MOUNT SUITE INSTALLATION WMC-44LPM-ESP * WMC-44LPM-RTF * WMC-56LPM-ESP * WMC-56LPM-RTF * WMC-68LPM-ESP * WMC-68LPM-RTF * WMC-80LPM-ESP * WMC-80LPM-RTF REVISED 07/17/2020...
- Page 2 WHAT’S IN THE BOX? (WALL MOUNT SUITE) • 1x TOP & 1x BOTTOM CABINET -WALL-MOUNT OPTION, TOP WILL HAVE A NOTCH ON RIGHT SIDE INSIDE FOR ELECTRICAL (FOR READY TO FINISH MUST PAINT PRIOR TO INSTALL) • 2x MATCHING SIDE PIECES (FOR READY TO FINISH MUST PAINT PRIOR TO INSTALL) •...
- Page 3 WALL MOUNT BRACKET (x1) TOP CABINET (x1) MATCHING SIDE PIECES (x2) BOTTOM CABINET (x1) CABINET MOUNT BRACKET (x4) 120 VAC POWER CORD (x1) #8 X ½” SELF DRILLING(x4) #8 X 1-5/8”(x8) M3-0.5 X 12(X10) (STYLE MAY VARY) WALL TOUCH UP PAINT (x1) #8 X 1”(x8) ANCHORS(x8) (ESPRESSO ONLY)
-
Page 4: Tools Needed
TOOLS NEEDED: • TAPE MEASURE • STUD FINDER • LEVEL • P2 PHILLIPS SCREW DRIVER • PENCIL/MARKER • DRILL WITH P2 PHILLIPS BIT • DRYWALL SAW • TOWELS OPTIONAL: -1/8” DRILL BIT FOR PILOT HOLES -GLOVES -VACCUUM RECOMMENDED 2 PERSON INSTALLATION... -
Page 5: Wall Mount Dimensions
OVERALL SUITE DIMENSIONS ONCE INSTALLED WALL MOUNT DIMENSIONS: 44 = 58.5”W x 28”H x 14.5”D 56 = 70.5”W x 28”H x 14.5”D 68 = 82.5”W x 28”H x 14.5”D 80 = 94.5”W x 28”H x 14.5”D... - Page 6 STEP 1 Select a suitable location for your fireplace suite. Consider the type of installation and the running of your electrical when choosing the location. Electrical connects to the top right side of the fireplace. (see figure 1) Take into consideration your overall suite dimensions when selecting an area.
- Page 7 STEP 2 After you have selected a suitable location for wall mounting, locate the studs on the wall. You must be able to secure a minimum of 2 studs for proper installation of bracket. (see figure 2) FAILURE TO DO SO CAN RESULT IN PERSONAL INJURY AND/OR DAMAGE TO EQUIPMENT.
- Page 8 STEP 2 CONTINUED HARDWIRE OR OUTLET LOCATION TOP OF BRACKET IS 0.75” LOWER THAN RIGHT SIDE OF BRACKET OVERALL HEIGHT. 2.25” AWAY FROM BRACKET SPACE AVAILABLE 4”W x 4.5”H 0.75”(¾”) 2.25” 4.5” 4” Provide a dedicated 15 amp 120 volt circuit or dedicated 4 wire 240 volt circuit for plug in installation Figure 3...
- Page 9 STEP 3 • It is optional but with an 1/8” drill bit (NOT INCLUDED) pre-drill the holes for all of your marks • Install wall anchors prior to installing bracket. It is recommended that wall anchors be installed with a Phillips tip screw driver. (figure7) •...
- Page 10 STEP 4 • Locate the slots on the back of the fireplace (see figure 8), they are on the back top left and right of the fireplace. This is where the hooks (see figure 9) on the bracket will hook into. •...
- Page 11 STEP 4 CONTINUED CONNECT POWER CORD TO THE FIREPLACE BY RUNNING THROUGH SIDE ELECTRICAL ACCESS REFERENCE MANUAL FOR CONNECTION EXAMPLE OF SECURING FIREPLACE TO WALL MOUNT BRACKET Figure 10 Figure 11...
- Page 12 STEP 5 • Locate your cabinet mount brackets and M3-0.5 x 12 screws. • These will be installed onto your fireplace drywall stops. (see figure 12 & 13) It is recommended you do one at a time. The M3-0.5 screws will take place of the original screws securing the drywall stop. (see figure 14) •...
- Page 13 STEP 5 CONTINUED EXAMPLE OF INSTALLATION BEST TO LEAVE HARDWARE LOOSE UNTIL BOTH SCREWS ARE STARTED FOR EASE OF INSTALLATION BRACKET STAND OUT TOWARDS FRONT ¾” GAP Figure 14 Figure 15...
- Page 14 STEP 6 Reference fireplace install manual for additional information INSTALL DESIRED MEDIA INSTALL SIDE GLASS FIRST INSTALL FRONT GLASS GLACIER CRYSTALS LOG SET Figure 16 Figure 18 Figure 17...
- Page 15 STEP 7 • Secure the bottom cabinet and align left and right onto brackets, see figure 19. Cabinet will slide in between the bracket and drywall stops. MAKE SURE TO INSERT CABINET LEVEL & EVENLY TO AVOID DAMAGING CABINET. IF TOO TIGHT REMOVE CABINET, LOOSEN BRACKETS, MAKE SPACING LARGER AND RE-TIGHTEN BRACKETS;...
- Page 16 STEP 7 CONTINUED CABINET SLIDING IN BETWEEN CABINET MOUNT & DRYWALL STOP. KEEP LEVEL AND MAKE SURE LEFT & RIGHT Figure 21.1 Figure 21.2 GO IN EVENLY...
-
Page 17: Bottom Cabinet
STEP • Locate your two matching side pieces. Starting at drywall stop, slide the side piece in then push the remaining of side piece into place. NOTE: These are friction fit. If there is not enough friction a construction adhesive or double sided tape may be used to help secure it. TOP CABINET SIDE PIECE FIREPALACE... - Page 18 WALL MOUNT INSTALL COMPLETE Question or concerns feel free to contact Modern Flames Customer Service Monday – Friday 08:00 am – 05:00 pm AZ MTN STD 1-877-246-9353 or email customerservice@modernflames.com...
