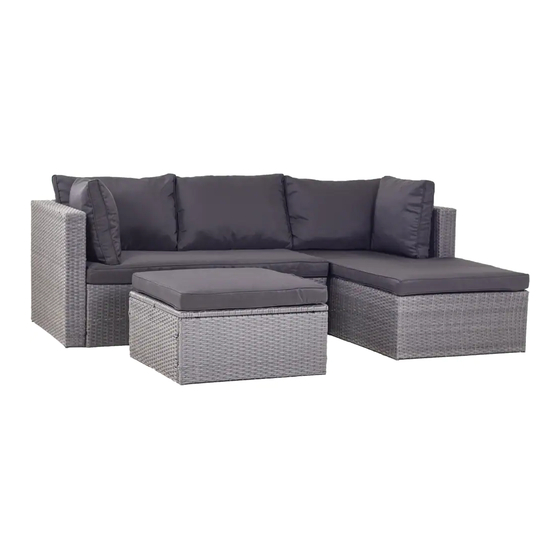

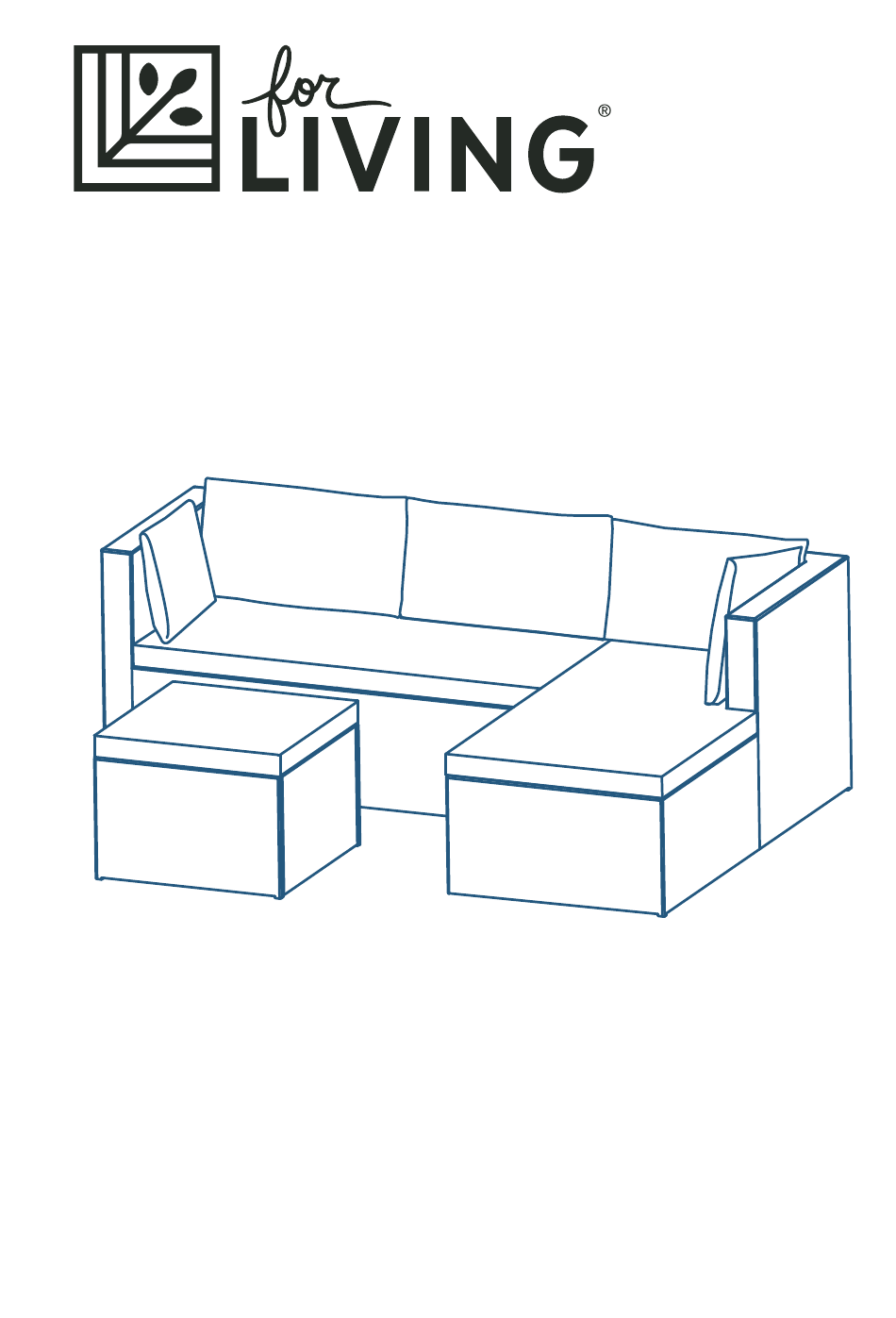

- Page 1 Sable 3-piece Sectional Set Model No. 399-4006-6 Assembly Instructions Toll-free: 1-877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference.
- Page 2 Made in China Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8...
- Page 3 Important Safety Instructions Parts List Assembly Cleaning and Maintenance Technical Data Warranty , read the following safety instructions before assembling and using the sectional set. Always keep children under close supervision while they are using or around this product. Never leave children unattended. flat, horizontal ground.
- Page 4 Model No. 399-4006-6 M6 x 30 mm Seat base Table short panel Bolt Backrest Table cushion 16x1.0 mm*M6 Flat washer Hex nut Armrest Pillow Hex key Seat base Pillow Wrench Armrest Cushion Connector Backrest Cushion M6 x 60 mm Table top...
- Page 5 Caution! Proper placement of your sectional set is essential. sectional set if any parts are missing. Let us help you! DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST! 1-877-483-6759 or have damaged or missing parts, please call our customer service toll-free helpline. .
- Page 6 Model No. 399-4006-6 Step 1 A, D, E, F, G, 1, 2 Assemble seat base 1 into armrest 2 . Secure with three M6x60 bolts A, six flat washers D, and three M6 nuts E using hex key F and wrench G. Only attach the bolts 80%.
- Page 7 3, B, D, E, F, G Attach the armrest 3 to backrest 2 and seat base 1. Secure with four M6x55 bolt B, eight M6 flat washers D, and four M6 hex bolts E using hex key F and wrench G. Only attach the bolts 80%.
- Page 8 Model No. 399-4006-6 Tighten all 100%. bolts 100% 4, 5, B, D, E, F, G Attach the armrest 5 to seat base 4. Secure with three M6×55 bolts B, six M6 washers D and three nuts E using hex key F and wrench G.
- Page 9 Step 7 4, 5, 6, B, D, E, F, G Attach backrest 6 into the armrest 5 and seat base 4. Secure with four M6×55 bolts B, 8 washers D and 4 nuts E using hex key F and wrench G. Only attach the bolts 80%. M6x55 16x1.0 Step 8...
- Page 10 Model No. 399-4006-6 Step 9 Tighten all bolts 100%. 100% Step 10 7, 8, C, D, F Attach the table top 7 to long panels 8. Secure with four M6x30 bolts C and four M6 washers D using hex key F. Only attach the bolts 80%.
- Page 11 7, 8, 9, C, D, F Attach the short panels 9 to long panels 8 and table top 7. Secure with ten M6x30 bolts and ten M6 washers D using hex key F. Only attach the bolts 80%. M6x30 16x1.0 Tighten all 100%.
- Page 12 Model No. 399-4006-6 Step 13 Attach the connectors H to the benches. Step 14 10, 11, 12, 13, 14 Place the cushions 13 and 14 on top of the benches first, and then place the pillows 11 and 12 as shown. Place cushion 10 as shown.
- Page 13 Check all bolts and unts periodically for tightness, tightening them again as required. Disassemble the sectional set in the reverse order of the assembly steps. Always disassemble the sectional set completely. A partially disassembled sectional set is not stable enough to resist wind and bad weather, and therefore can be damaged and/or cause damage.
- Page 14 Model No. 399-4006-6 This For LIVING product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear...
