CDVI ROFU BKC-5000B Instructions Manual

R FU O
a Company

Features:

Applicable card mode : EM Card / Key Fob
1 Administrator and 200 Users
200 Proximity Cards / Key Fobs
Access Modes : Use Bluetooth smartphone,
Card / Key Fob or enter passcode to access
Built-in Tamper alarm and Buzzer (85dB)
User Management : Add / Delete / View user
data, Grant user access for specific dates or
time periods, Change user passcode
Ability to add proximity card / fob to the
ADMIN or a user by reading the card instead
of typing the numbers (See page 8)
Audit trail logs for last 1,000 events
Alarm output to notify that tamper alarm has
been triggered
Overhead LEDs and Backlit keys for easy use
in the dark
Wrong code lockout : if an incorrect passcode
is entered 3 times in a row, the keypad will
lock down for 60 seconds
Copyright All Rights Reserved ROFU Security International Corp. ROFU BKC-5000B. Published: February 12, 2020

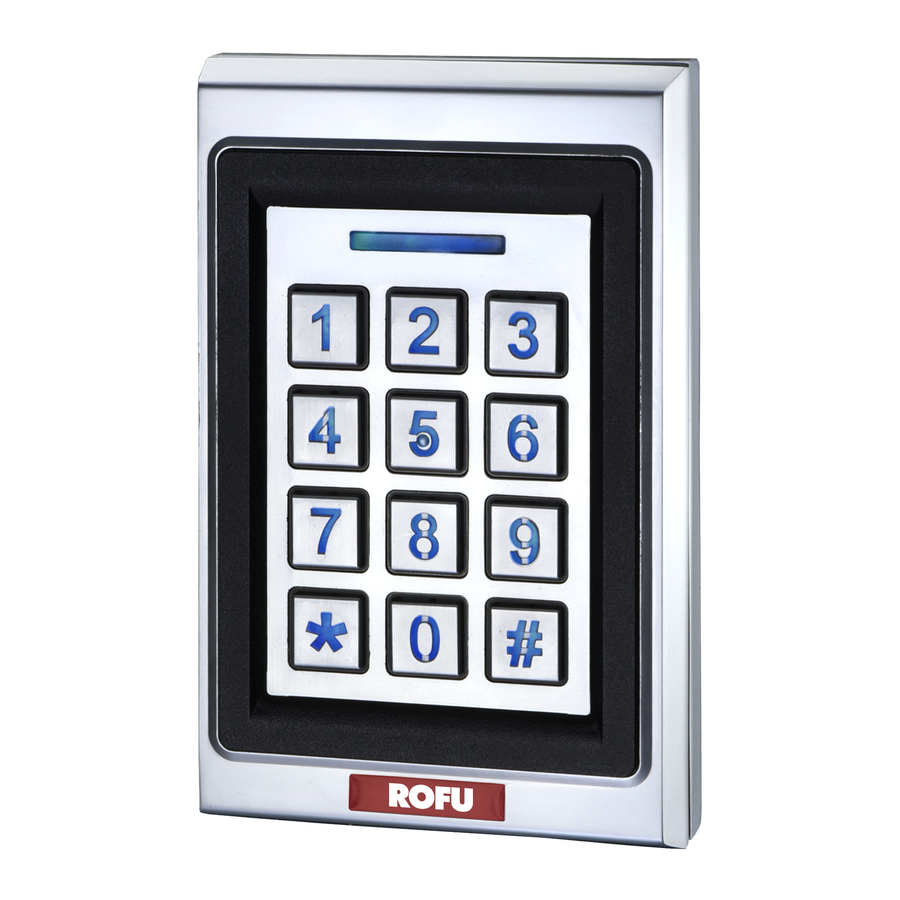

ROFU BKC-5000B Bluetooth Access
Control Keypad Instructions

Specifications:

Operating Voltage : 12VDC / 24VDC
Bluetooth Module : BLE 4.2 Bluetooth Low Energy
Current Draw :
Standby Current:
52mA@12VDC; 30mA@24VDC
Working Current:
62mA@12VDC; 35mA@24VDC
Read Range : 3.5cm
Frequency : EM 125KHz
Bluetooth Operating Distance :
Up to 50 meters (164 ft) without blocking by metal
or concrete wall / door frames
Smartphone Compatibility : Android 5.0 and up,
iOS 9.0 and up
Working Temperature :
-20°C~+50°C (-4°F~+122°F)
Dimension : 123 (L) x 79 (W) x 23 (D) mm
Finish : Zinc Alloy
1
