CDVI 500-LADJ Quick Start Manual

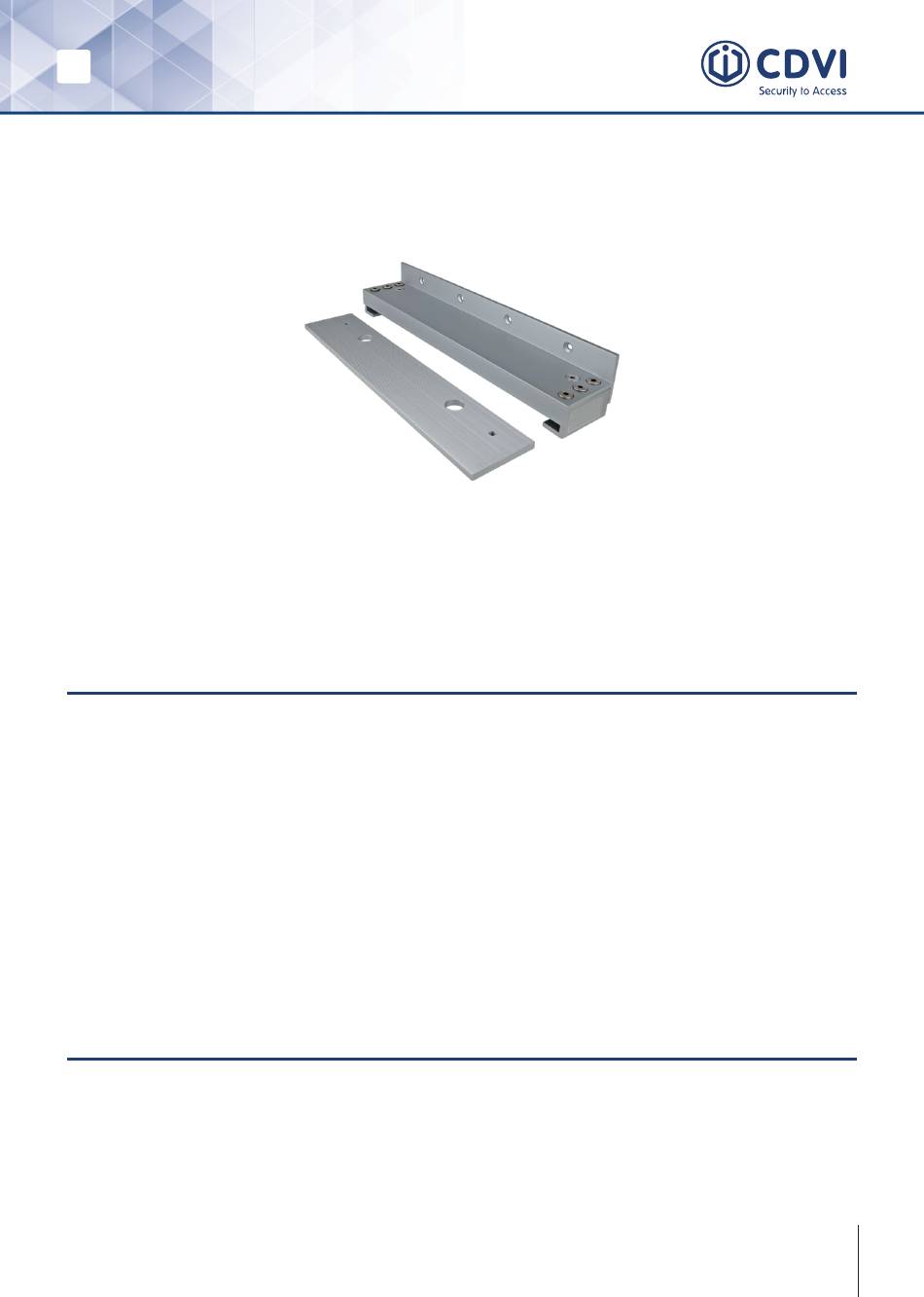

Electromagnetic lock bracket

Table of Contents

Download this manual

The bracket comes completely assembled. Mount the bracket, fit the mag to the slider

plate, line up with the armature, wire up, power up, tighten up and walk away.

Note: Each 500-LADJ bracket is bespoke to each maglock type and size. Please ensure

you have the correct bracket for the relevant mag lock.

What is this bracket for?

• The 500-LADJ bracket is useful when the maglock cannot directly fit under the tran-

som and where you would normally use an "L" bracket.

• This bracket allows infinite adjustment and positioning of the maglock. It can then

meet the armature perfectly with minimal effort.

• Depending on the size of the magnet you can slide the plate forward or backward

and even angle it, if that is what is needed.

• There is a cavity and a cut out in the bracket to make cabling easier, without

exposing or pinching the cable.

• It allows you to adjust the position of the magnet easily even after mounting.

The 500-LADJ is easy to fit:

1. Fit the main body to the transom and the armature to the door.

2. Secure the magnet to the sliding plate.

3. Slide the plate into the bracket and line it up to the armature plate.

4. Tighten the screws.

Electromagnetic Lock Bracket

Instructions of Use

Quick Start Guide

500-LADJ

Table of Contents

Do you have a question about the 500-LADJ and is the answer not in the manual?

Page 1 What is this bracket for? • The 500-LADJ bracket is useful when the maglock cannot directly fit under the tran- som and where you would normally use an “L” bracket.
Page 2 500-LADJ Electromagnetic Lock Bracket Package Contents & Components 2 x M6x22 6 x M6x22 for guide 1 x Allen key 4 x self-tapping for sliding plate channels to transom fixings body Installation STEP I 1. Remove the slide plate from the main body - On top of the main body bracket there are 3 fixings at either end.
Page 3 500-LADJ Electromagnetic Lock Bracket 3. Mount the magnet to the flat sliding plate in the same way you would for a stand ard “L” bracket (see diagram below) and secure through the 2 or 4 pre-drilled holes, depending on the magnet you are using.
Page 4 500-LADJ Electromagnetic Lock Bracket STEP III Make a hole in the transom using the cut out at the back of the main body as a guide in order to make a clean cable route from the magnet through the transom.
Page 5 • Ensure that the supplied fixings are not exchanged otherwise this will affect the performance of the bracket • It is essential to follow CDVI’s guidelines on how to mount the electromagnetic lock. • The thread lock must be applied to all fixings.
Page 6 Internal Reference Code: CDVI_500-LADJ_QS_01_EN_A4_C For queries visit our website www.cdvi.co.uk or contact us at sales@cdvi.co.uk +44 1628 531300 CDVI UK, Unit B1, Knaves Beech Business Centre, Davies Way, Loudwater, High Wycombe, HP10 9QR...
