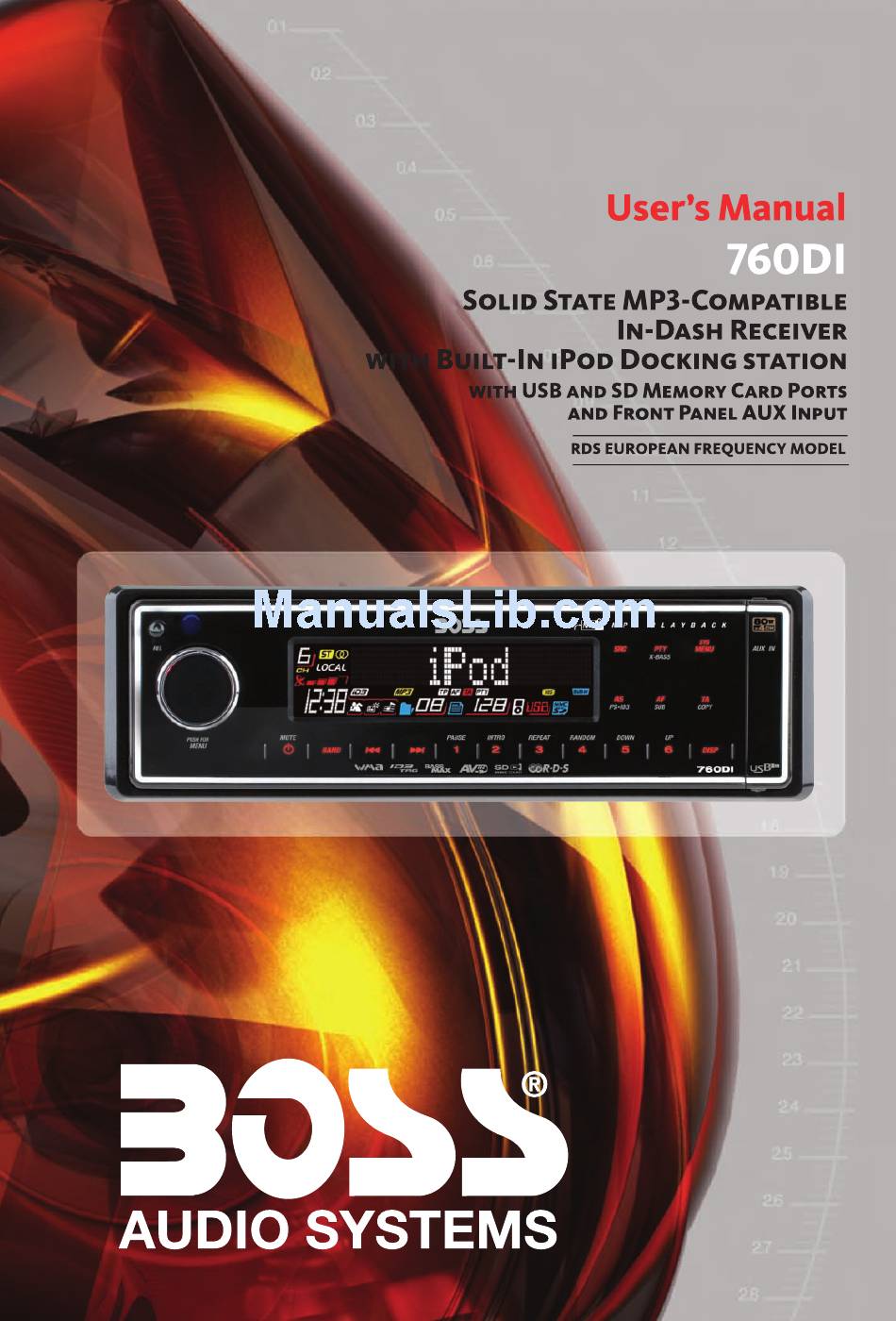

Summary of Contents for Boss Audio Systems 760DI
- Page 2 This radio is equipped with the most advanced "TOUCH SENSE PANEL", so that it is easy and convenient to use while driving. Tips; Here are some tips to show you how easy it is to use this touch sense panel: Tips Using a very light touch on the radio panel will activate that feature.
-
Page 3: Installation
1. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. - Page 4 Removing the unit Trim Plate Installation: Push the trim plate against the chassis until it is fitted. You must do this before you install the front panel, otherwise it can't be attached. DIN REAR-MOUNT (METHOD B) Installation using the screw holes on the sides of the unit. Fastening the unit to the factory radio mounting bracket.
-
Page 5: Detachable Control Panel (D.c.p .)
2. DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). PANEL RELEASE BUTTON Attaching the DCP CAUTION DO NOT insert the D.C.P from the left side. Doing so may damage it. The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks. - Page 6 3. WIRING DIAGRAM (20 PIN + ISO PLUG) FUSE Figure 2 ISO CONNECTOR 4PIN+8PIN FEMALE WITH MALE TERMINAL ISO CONNECTOR WIRING CHART WIRE COLOR FUNCTION/LABEL YELLOW CONSTANT 12 VOLTS BLUE POWER ANTENNA/REMOTE TURN ON IGNITION(ACC) BLACK GROUND VIOLET RIGHT REAR SPEAKER (+) VIOLET/BLACK RIGHT REAR SPEAKER (-) GREY...
-
Page 7: Control Panel Function
4. CONTROL PANEL FUNCTION OPERATIONS: SYSTEM Short Long Press Press Mute Power Audio Menu Mode Encoder Volume Sub-W Copy ix-Bass Display Seek Up System Menu TUNER MP3/WMA Short Long Short Press Press Press 3.5mm AUX In jack Panel release button Enter File/Folder Band... -
Page 8: Ipod Operation
5. iPod OPERATION INSTALLING iPod INTO THE BUILT-IN iPod DOCKING Always follow the below steps to install the iPod into the docking station. Incorrect or improper installation may cause permanent damage to the docking or the iPod unit. Step 1 Press down the button as indicated below to unlock the iPod docking. - Page 9 REMOVE iPod FROM THE BUILT-IN iPod DOCKING To take out the iPod from the docking station, user can first detach the front panel, and repeat step 1 to step 8 to take out the iPod & return the iPod docking inside the unit’s cabinent. Step 1 Press the button as indicated below to unlock the iPod docking.
- Page 10 iPod FULL CONTROL / OPERATION This unit is equipped with iPod Ready function which allow end user to have direct control of the iPod on the front panel control button and display iPod song information on the unit's LCD display. Please read below for more details operation.
- Page 11 Playlist Artist Album Song Genre Once selected the desire searching method, within 10 second press the AUDIO button as confirm & access into the searching mode, then turn the rotate encode volume knob to navigate thru the Album or Artist or Song contained in the iPod. Press the AUDIO button to confirm & play the selected song.
-
Page 12: Basic Operations
6. BASIC OPERATIONS PANEL RELEASE BUTTON (REL) Press this button to remove the control panel. POWER ON/OFF BUTTON ( Press POWER button or any other button on the front of the radio to turn the unit on. Press POWER button again to turn the unit off. MUTE BUTTON (MUTE) Press the mute button momentarily to mute the audio volume, and "Mute"... -
Page 13: Menu Operation
7. MENU OPERATION 22) MENU FUNCTION LIST (SYS MENU) Press SYS MENU to access the menu. will appear in the display momentarily. Navigate the menu by pressing SYS MENU momentarily to move forward to the next option. The menu can also be navigated by using the Tuning Up or Tuning Down Button to move to the next or previous option. -
Page 14: Audio Operation
8. AUDIO OPERATION Audio Menu Press “AUDIO button to access the Audio Menu. User can navigate thru the Audio Menu items by ” pressing the “AUDIO” button repeatedly, or by pressing the Tuning Up or Tuning Down Button. Once the desired menu item appears on the display, adjust that option by using the Volume Up or Down button within 5 seconds. -
Page 15: Tuner Operation
9. TUNER OPERATION BAND BUTTON (BAND) Press BAND to change between FM bands and AM(MW)bands. 20-21) TUNING UP/DOWN BUTTON ( Manual Tuning Press the Up Tuning or Down Tuning button for more than 3 seconds to move the radio frequency number up or down one step. Auto Seek Tuning Press the Up Tuning or Down Tuning button for less than 3 seconds to move to next station automatically. -
Page 16: Rds Operation
10. RDS OPERATION RDS functions The unit is equipped with the following RDS function: AF Alternative Frequencies CT Clock Time EON Enchanced other Network PI Program identifications PS Program service name PTY Program Type REG Regional Change TA Traffic Announcement TP Traffic program 1. -
Page 17: Operation
11. MP3/WMA MUSIC FILES OPERATION OPERATION PAUSE BUTTON Press the pause button to suspend file play. Press the pause button again to resume file play. 20-21) FILE SELECT Press the Up Tuning or Down Tuning button ( to the next file, The selected file number will appear on the display. Press and hold the Up Tuning or Down Tuning button ( reverse through the file. - Page 18 Entering File and Folder Names Names using the code list characters are the only file names and folder names that can be entered and displayed. Using any other character will cause the file and folder names to be displayed incorrectly. The unit recognizes and plays only files with the MP3/WMA extension. A file name entered with characters not on the code list may not play correctly.
- Page 19 FILE/FOLDER PLAY There are three different play methods as following: File/Folder Intro play: Press M2 button more than 3 seconds during playing MP3/WMA file for “intro play” all files of the current folder. Intro play should restart from the first song of the current folder, after all files in the current files have been intro-played.
-
Page 20: Usb Operation
12. USB OPERATION The unit can support USB Host Function. It can playback MP3 and WMA Audio format which are stored into USB Memory Stick or USB interface Music Player. Please read below before you start the operation of USB HOST Function. Inserting and Removing USB Drive Inserting the USB stick Mode change to USB HOST... -
Page 21: Memory Card Operation
13. MEMORY CARD OPERATION The unit can support playback MP3 and WMA Audio format which are stored into Memory Card . Please read below before you start the operation of Memory Card. Inserting and Removing a SD or MMC card on the main unit Detach the Front Panel Detach the... -
Page 22: Music Files Transferring
14. MUSIC FILES TRANSFERRING Thanks for the most useful and convenient files transferring function of this unit, user can easily transfer music files between USB Stick, SD or MMC Memory card. Please read below for the details operation of this function: TRANSFERABLE MEDIA Files are transferable within the following media: Removable USB Stick... - Page 23 TRANSFER MP3 OR WMA MUSIC FILES BETWEEN MEDIA DEVICES Select a device by mode button and playback the music file need to be transfer: 1. Long press the COPY button to activate the transfer mode. 2. The LCD will display thru >...
-
Page 24: Music Files Erasing
15. MUSIC FILES ERASING You can erase files from the USB Stick or Memory Card. Please read below for the details operation of this function: ERASABLE MEDIA USB Stick and Memory Card. ERASING MUSIC FILES ON THE MEDIA There are THREE different methods for erasing files; 1.Erase while the Music File is playing. - Page 25 Short Press the AUDIO to enter into the ERASE mode Once enter into the erase mode. User can rotate the encoder to select “ erase or rotate the volume knob to select “ ” to cancel the ERASE mode. If no further button is press within a 5 second time out.
-
Page 26: Files Manager
16. FILES MANAGER The advance “File Management.” System of this unit can help to well you organize all the music files just like a PC . Please read below for details: FOLDERS MANAGEMENT This unit will automatically self-create the below default folders onto any USB /SD / MMC media device, once these devices are inserted into the unit. - Page 27 17. REMOTE FUNCTION(RDS +iPod) OPERATIONS: SYSTEM Short Long Press Press Power Display Menu Source Mute Volume Up Volume Down Audio Menu Sub-W Copy ix-Bass TUNER CD/MP3/WMA Short Long Short Press Press Press Track/File Seek Up Tune Up Seek Tune Track/File Down Down Down...
-
Page 28: Specifications
18. SPECIFICATIONS MEDIA SECTION USB Host Memory Card Support Type of Memory Card RADIO SECTION Frequency Range Intermediate Frequency Usable Sensitivity Stereo Separation S/N Ratio AM/MW Frequency Range Intermediate Frequency Usable Sensitivity S/N Ratio GENERAL Power Supply Polarity Speaker impedance Power Output REMARK : Specifications subject to change without notice. -
Page 29: Troubleshooting
19. TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause The car ignition is not on. No power The fuse is blown. Volume is in minimum. - Page 30 10 R - 02 0896...
