Hydrofarm Active Aqua AARBTS1 User Manual

Rolling bench trellis support kit

U S E R M A N UA L

ROLLING BENCH TRELLIS SUPPORT KIT

AARBTS1

(ROLLING BENCH SOLD SEPARATELY)

Table of Contents

Need help?

Do you have a question about the Active Aqua AARBTS1 and is the answer not in the manual?

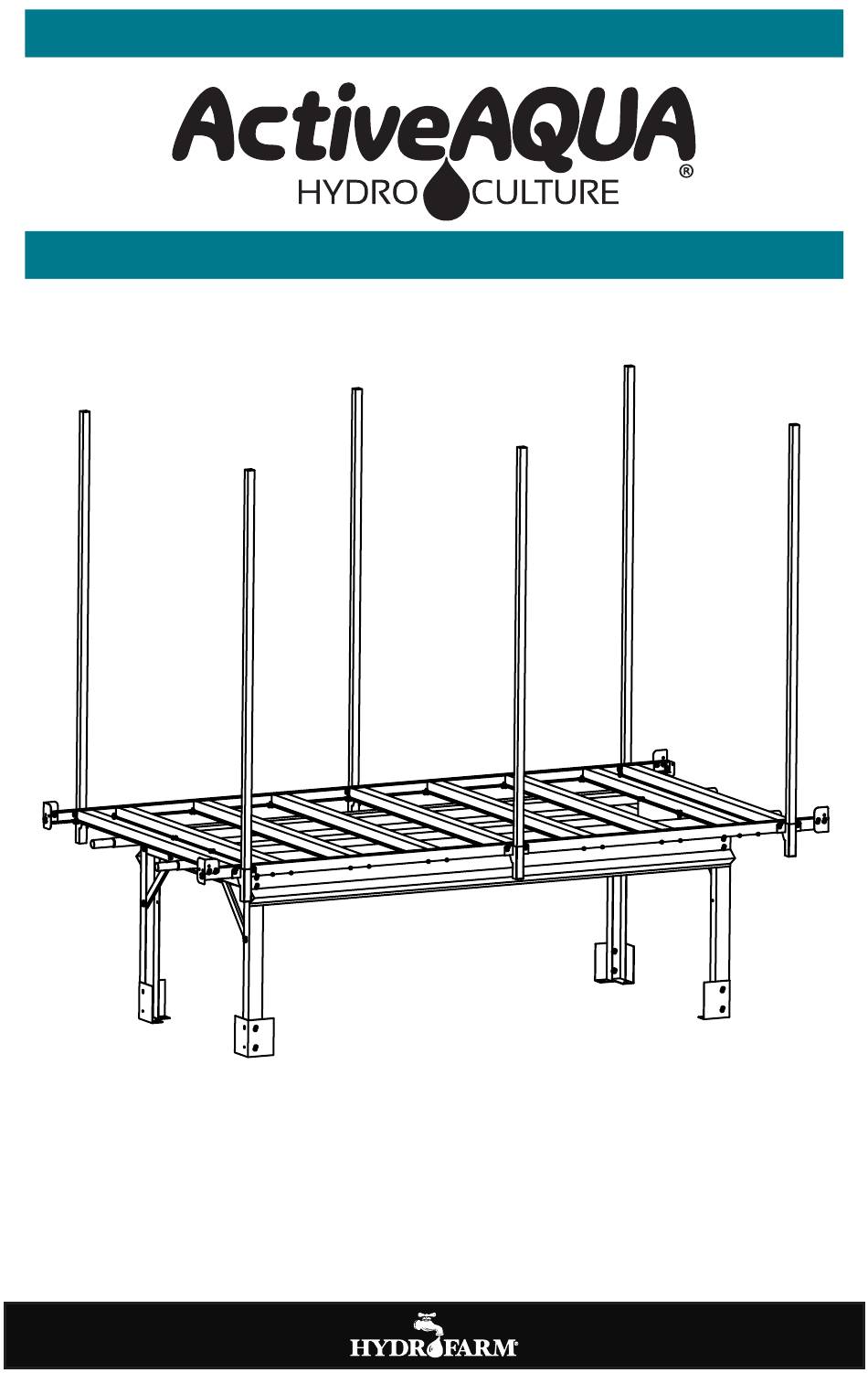

Page 1 U S E R M A N UA L ROLLING BENCH TRELLIS SUPPORT KIT AARBTS1 (ROLLING BENCH SOLD SEPARATELY)
Page 2 PART LIST Part Qty Description Part Description x 12 Nut Support Bracket x 12 Bolt Trellis Poles Also includes assembly tools: Hex wrench (x1) and open-ended wrench (x1) ASSEMBLY STEP 1: PLACE SUPPORT BRACKETS. Remove the existing nuts ( ) and bolts ( ) from the support bars circled in blue below.
Page 3 ASSEMBLY STEP 2: ATTACH SUPPORT BRACKETS. Reattach the nuts ( ) and bolts ( you removed in Step 1, and add two more on the side of the table to secure the brackets as shown. STEP 3: INSERT TRELLIS POLES INTO SUPPORT BRACKETS.
Page 4 Thank you for choosing Active Aqua by Hydrofarm. For further information about Active Aqua products, videos, and technical information, please visit Hydrofarm.com Get Connected with the Hydrofarm Community: Like us on Facebook, follow us on Twitter, and check out Hydrofarmtv on YouTube and Instagram! AARBTS1_Trellis_Support_Kit_Aug2020.indd | Revised - August 13, 2020 4:25 pm...
