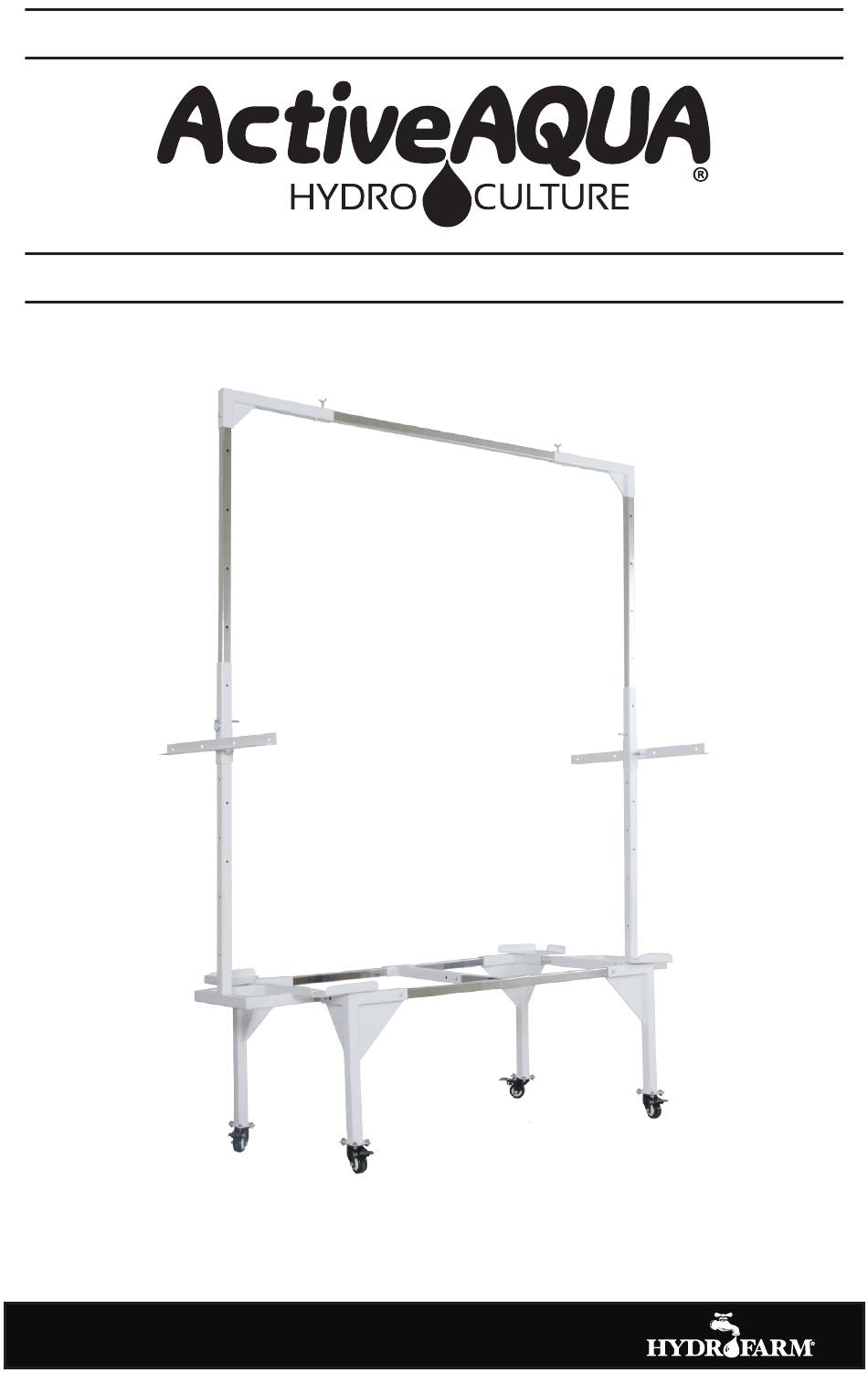

- Page 1 INSTRUCTIONS LOW PROFILE TRAY STAND - SMALL AASFT24S – Low Profile Tray Stand AASLH24 – Light Hanger (optional)
- Page 2 A - Corner Leg, Low Profile Height w/casters (2) B - Corner Leg, Low Profile Height w/casters (2) C - Side Rail (2) D - End Rail (2) E - Center Support Rail Assembly (1) F - Corner Retainer (2) G - Corner Retainer (2) FIGURE 1 www.Hydrofarm.com...
- Page 3 INSTRUCTIONS ASSEMBLY INSTRUCTIONS (FOR BOTTOM STAND ONLY AASFT24S) Remove all of the parts from the packaging and set the hardware aside. Group all of the stand parts together based on type for ease of locating and assembly, i.e. corner legs together, side rails together, end bars together, etc.
- Page 4 LIGHT HANGER PARTS LIST (AASLH24) A1 - Vertical Light Bar (2) B1 - Trellis Bar (2) C1 - Horizontal Light Bar (2) D1 - Butterfly Thumb Screw (4) E1 - Center Light Bar (1) F1 - Lynch Pin (4) www.Hydrofarm.com...
- Page 5 INSTRUCTIONS You’ve already begun assembling the Tray Stand by installing the Side Rails C into the Corner Legs A and B ( ). Now you will assemble the Light Hanger and connect it to the Tray Stand. IMAGE 1 1. Install the End Rails D into the foundation squares of the Vertical Light Bars A1 ( IMAGE 5 Secure each end rail and foundation square together with one of the butterfly thumb screws D1.
-
Page 6: Limited Warranty
Hydrofarm will, at our discretion, repair or replace the AASFT24S covered under this warranty if it is returned to the original place of purchase. To request warranty service, please return the AASFT24S, with original sales receipt and original packaging, to your place of purchase.
