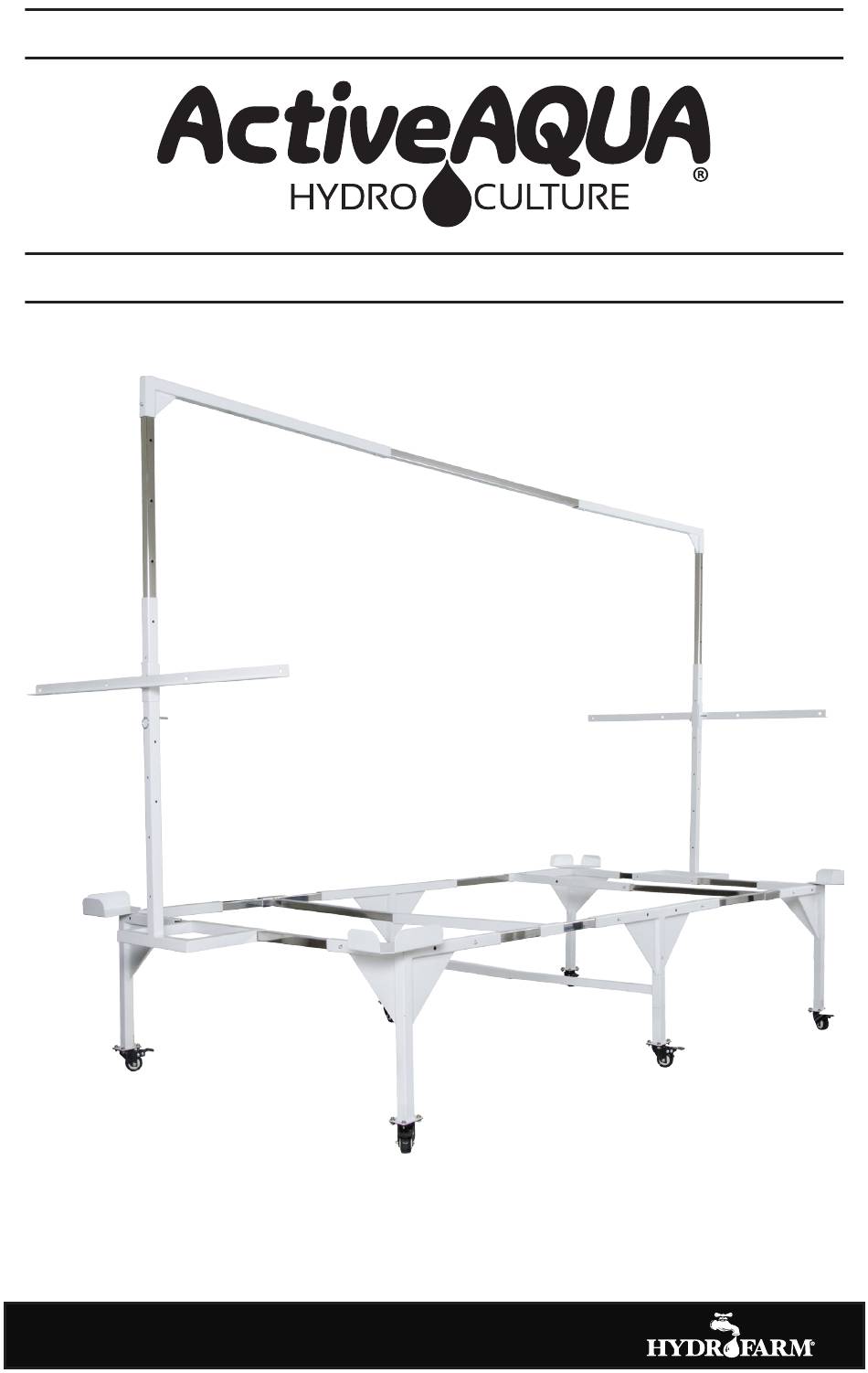

- Page 1 INSTRUCTIONS LOW PROFILE TRAY STAND - LARGE AASFT48S – Low Profile Tray Stand AASLH48 – Light Hanger (optional)
- Page 2 D - End Rail (2) E - Center Support Rail Assembly (2) F - Corner Retainer (2) G - Corner Retainer (2) H - Center Leg, Low Profile Height w/casters (2) I - Center Rail Top (2) Figure 1 www.Hydrofarm.com...
- Page 3 INSTRUCTIONS ASSEMBLY INSTRUCTIONS (FOR BOTTOM STAND ONLY AASFT48S) Remove all of the parts from the packaging and set the hardware aside. Group all of the stand parts together based on type for ease of locating and assembly, i.e. corner legs together, side rails together, end bars together, etc.
- Page 4 IMAGE 4 Assemble the remaining 2-Piece Center Support Rails (Part E), locking them at proper length with their spring buttons, and center them over the Side Rails (Part C) ( SEE IMAGE 5 IMAGE 5 www.Hydrofarm.com...
- Page 5 INSTRUCTIONS ASSEMBLY INSTRUCTIONS (WITH OPTIONAL LIGHT HANGER AASLH48) Remove all of the parts from the packaging and set the hardware aside. Check to be sure that the hardware contains the four (4) Lynch Pins and six (6) Butterfly Thumb Screws. Group all of the stand parts together based on type for ease of locating and assembly, i.e.
- Page 6 6. Complete the assembly by inserting the Corner Retainers F and G, placing them as shown . Be sure to place the Corner Retainers F at corners diagonally opposite to each IMAGE 4 other, and the Corner Retainers G at the remaining corners, as shown in Figure 1. www.Hydrofarm.com...
- Page 7 INSTRUCTIONS NOTE: This stand can also be easily adjusted to accommodate both 4' x 6' and 3' x 6' size flood tables. To adjust for 4' x 6' tables, depress the spring buttons on either end of the Side Rails (Part B) and slide (collapse) the side rails all the way toward the corners until the spring buttons lock in the innermost holes in the Corner Legs.
-
Page 8: Limited Warranty
Hydrofarm will, at our discretion, repair or replace the AASFT48S covered under this warranty if it is returned to the original place of purchase. To request warranty service, please return the AASFT48S, with original sales receipt and original packaging, to your place of purchase.
