Summary of Contents for Hydrofarm Active Aqua AASFT48

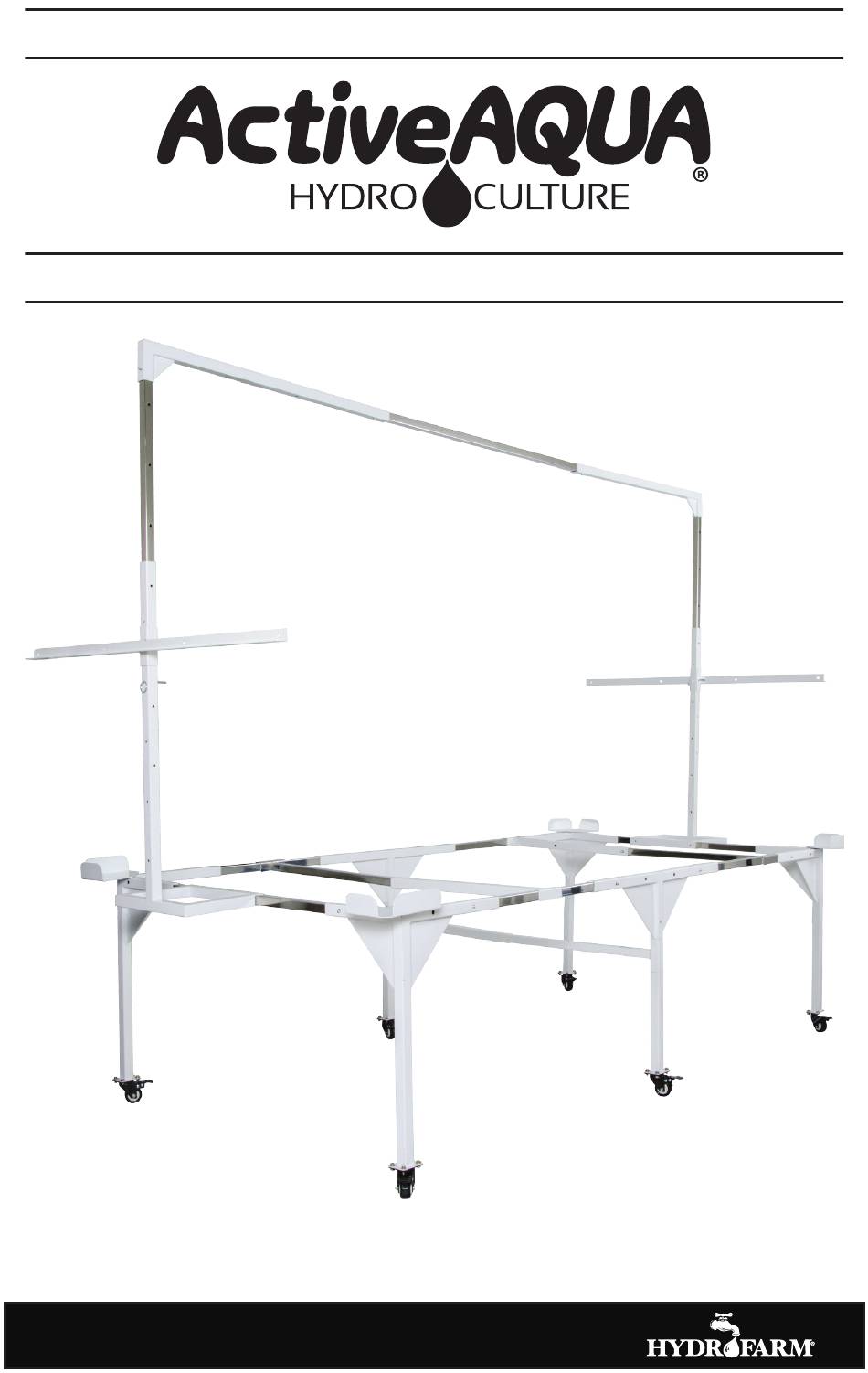

- Page 1 INSTRUCTIONS UNIVERSAL TRAY STAND - LARGE AASFT48 AASLH48 AASLP48...
- Page 2 E - Corner Leg standard height w/casters V2 (2) F - End Rail (2) G - 2-Piece Center Support Rail (2) H - Corner Retainer V2 (2) I - Corner Retainer V1 (2) J - 2-Piece Center Leg Support Bar (1) www.Hydrofarm.com...
- Page 3 INSTRUCTIONS ASSEMBLY INSTRUCTIONS (FOR BOTTOM STAND ONLY): Remove all of the parts from the packaging and set the hardware aside. Group all of the stand parts together based on type for ease of locating and assembly, i.e. corner legs together, side rails together, end bars together, etc. All parts will be marked with a letter corresponding to the parts list above.
- Page 4 Image 4 5. Assemble the remaining 2-Piece Center Support Rails (Part G), locking them at proper length with their spring buttons, and center them over the Side Rails (Part B) (See Images 5 and 5a). Image 5a Image 5 www.Hydrofarm.com...
- Page 5 INSTRUCTIONS LIGHT HANGER PARTS LIST (AASLH48) A1 - Vertical Light Bar (2) B1 - Trellis Bar (2) C1 - Horizontal Light Bar (2) D1 - Butterfly Thumb Screw (6) E1 - Center Light Bar (1) F1 - Lynch Pin (4) ASSEMBLY INSTRUCTIONS (INCLUDING LIGHT HANGER) Remove all of the parts from the packaging and set the hardware aside.
- Page 6 7. Complete the assembly by inserting the Corner Retainers V1 and V2 (Parts F & G), placing them as shown in Image 4 (be sure to place the Corner Retainers V1 at opposite corners to each other and the Corner Retainers V2 at opposite corners to each other as you did with the legs). Image 10 www.Hydrofarm.com...
- Page 7 INSTRUCTIONS NOTE: This stand can also be easily adjusted to accommodate both 4' x 6' and 3' x 6' size flood tables. To adjust for 4' x 6' tables, depress the spring buttons on either end of the Side Rails (Part B) and slide (collapse) the side rails all the way toward the corners until the spring buttons lock in the innermost holes in the Corner Legs.
- Page 8 Hydrofarm’s warranty liability extends only to the replacement cost of the product. Hydrofarm will not be liable for any consequential, indirect, or incidental damages of any kind, including lost revenues, lost profits, or other losses in connection with the product.
