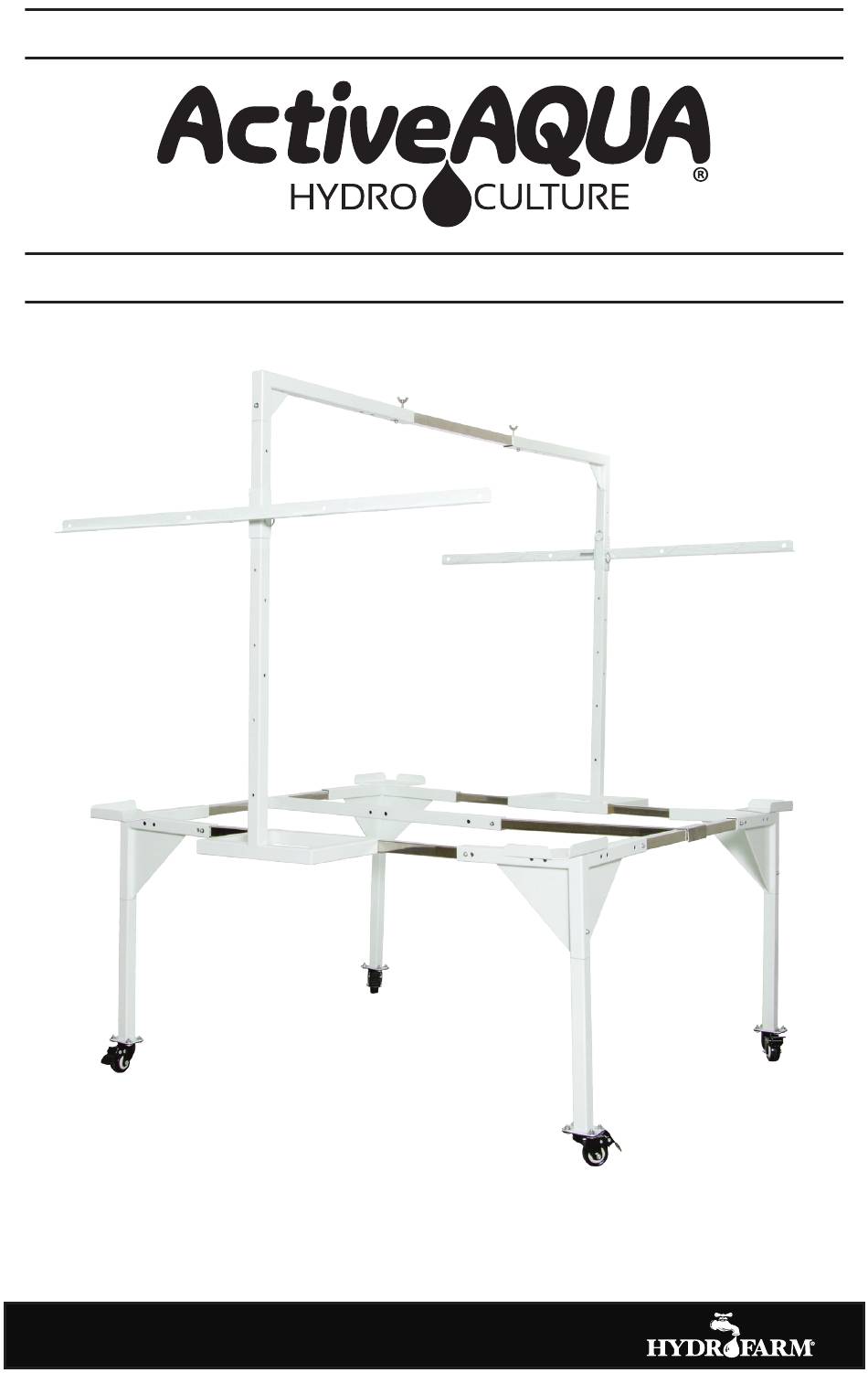

- Page 1 INSTRUCTIONS UNIVERSAL TRAY STAND - MEDIUM AASFT44 AASLH44 AASLP44...
- Page 2 B - Corner Leg standard height w/casters V2 (2) C - Side Rail (2) D - End Rail (2) E - Center Support Rail Assembly (1) F - Corner Retainer V1 (2) G - Corner Retainer V2 (2) FIGURE 1 www.Hydrofarm.com...
- Page 3 INSTRUCTIONS ASSEMBLY INSTRUCTIONS - FOR BOTTOM STAND ONLY AASFT44 Remove all of the parts from the packaging and set the hardware aside. Group all of the stand parts together based on type for ease of locating and assembly, i.e. corner legs together, side rails together, end bars together, etc.
- Page 4 Corner Legs. Then collapse/adjust the End Rails (Part D) on both sides in the same manner. This will reduce the length and width dimensions of the stand from 4' x 4' to 3' x 3'. www.Hydrofarm.com...
- Page 5 INSTRUCTIONS ASSEMBLY INSTRUCTIONS (INCLUDING LIGHT HANGER AASLH44) Remove all of the parts from the packaging and set the hardware aside. Check to be sure that the hardware contains the Lynch Pins (quantity: 4) and Butterfly Thumb Screws (quantity: 4). Group all of the stand parts together based on type for ease of locating and assembly, i.e. corner legs together, side rails together, end bars together, etc.
- Page 6 Image 4 (be sure to place the Corner Retainers V1 at opposite corners to each other and the Corner Retainers V2 at opposite corners to each other as you did with the legs). Image 8 Image 7 www.Hydrofarm.com...
- Page 7 INSTRUCTIONS INSTALLING THE LOW PROFILE LEG KIT NOTE: The below instructions assume that you have already used the standard sized legs and are switching to the low profile legs. If you want to assemble the stand with the low profile legs from the start, simply use the Short Corner Legs V1 and Short Corner Legs V2 in place of the standard length corner legs when assembling the bottom tray stand.
- Page 8 Hydrofarm’s warranty liability extends only to the replacement cost of the product. Hydrofarm will not be liable for any consequential, indirect, or incidental damages of any kind, including lost revenues, lost profits, or other losses in connection with the product.
