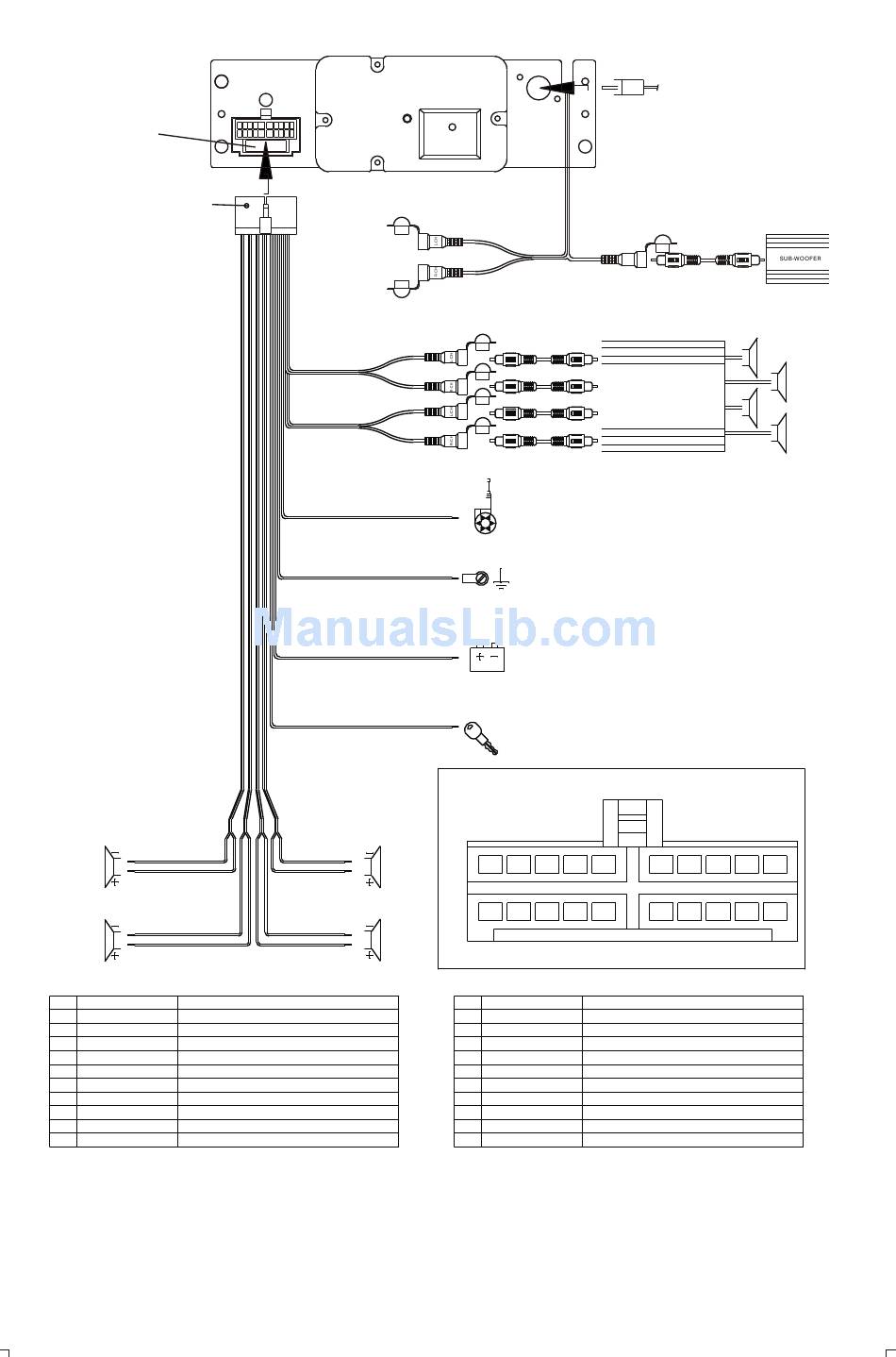

5. WIRING DIAGRAM (20 PIN HARNESS PLUG)
FUSE
20-PIN
AUDIO/POWER
HARNESS
(See Figure 1)
LEFT FRONT
WHITE-BLACK LF-
WHITE LF+
LEFT REAR
- -
GREEN-BLACK LR
GREEN LR+
WIRE COLOR
PIN
RIGHT FRONT SPEAKER (-)
1 GREY/BLACK
RIGHT FRONT SPEAKER (+)
2 GREY
RIGHT REAR SPEAKER (+)
3 VIOLET
RIGHT REAR SPEAKER (-)
4 VIOLET/BLACK
5
6 GREEN LEFT REAR SPEAKER (+)
LEFT REAR SPEAKER (-)
7 GREEN/BLACK
IGNITION(ACC)
8 RED
9 BLACK REAR PRE-AMP LINE OUT COMMON
10 RED RIGHT REAR PRE-AMP LINE OUT
AUX IN
REAR LINE OUT
GREY
FRONT LINE OUT
BLACK
RIGHT FRONT
GREY-BLACK RF-
GREY RF+
RIGHT REAR
VIOLET-BLACK RR-
VIOLET RR+
FUNCTION/LABEL
WHITE
SUB WOOFER
YELLOW
RED
RCA-TO-RCA CABLES
(not supplied)
WHITE
RED
WHITE
RED
Power Antenna Connect to power antenna or amplifier, If
not used,Tape bare end of wire.
BLUE
Ground Connect to ground terminal or
Clean unpainted metal part of chassis
BLACK
Memory/Battery
YELLOW
Connect to battery or 12 volt power source that is always live.
The radio will not work if this wire is not connected
RED
Accessory/Ignition Connect to existing radio wire or radio fuse.
20-PIN AUDIO/POWER HARNESS
1 2 3 4
11 12 13 14
Figure 1
WIRE COLOR
PIN
11 WHITE
12 WHITE/BLACK
13
14 BLUE
15 YELLOW
16 BLACK
17 WHITE
18 RED
19 BLACK
20 WHITE
E - 6
ANTENNA JACK
ANTENNAPEXT
ENDERP
CABLE
RCA-TO-RCA CABLES
(not supplied)
BLUE
WHITE
AMP
5 6 7 8 9
15 16 17 18 19
Pin View
FUNCTION/LABEL
LEFT FRONT SPEAKER (+)
LEFT FRONT SPEAKER (-)
POWER ANTENNA
BATTERY(+)
CHASSIS GROUND
LEFT FRONT PRE-AMP LINE OUT
RIGHT FRONT PRE-AMP LINE OUT
FRONT PRE-AMP LINE OUT COMMON
LEFT REAR PRE-AMP LINE OUT
10
20
