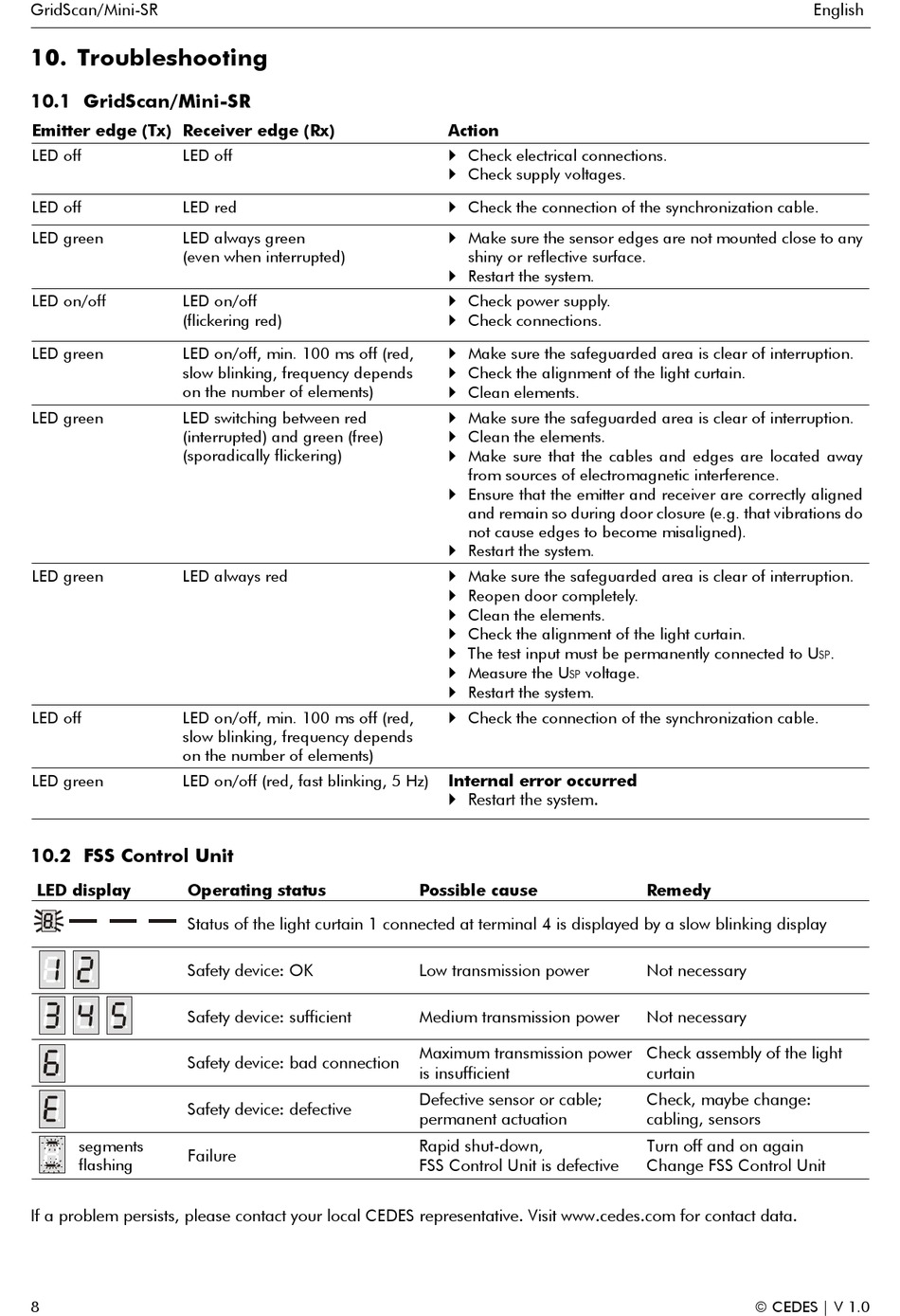

10. Troubleshooting

10.1 GridScan/Mini-SR
Emitter edge (Tx) Receiver edge (Rx)
LED off LED off
LED off LED red
LED green LED always green
(even when interrupted)
LED on/off LED on/off
(flickering red)
LED green LED on/off, min. 100 ms off (red,
slow blinking, frequency depends
on the number of elements)
LED green LED switching between red
(interrupted) and green (free)
(sporadically flickering)
LED green LED always red
LED off LED on/off, min. 100 ms off (red,
slow blinking, frequency depends
on the number of elements)
LED green LED on/off (red, fast blinking, 5 Hz)

10.2 FSS Control Unit

LED display Operating status
Status of the light curtain 1 connected at terminal 4 is displayed by a slow blinking display
Safety device: OK
Safety device: sufficient
Safety device: bad connection
Safety device: defective
segments
Failure
flashing
If a problem persists, please contact your local CEDES representative. Visit www.cedes.com for contact data.
