GridScan/Mini-SR
5. Installation
NOTICE
Mechanical damage to the
GridScan/Mini-SR
Do not drill additional holes into the light
curtain
Do not over-tighten the mounting screws
Mount the edges on a plane surface
It is recommended to carry out the system installation
according to the following steps:
1. Switch off main power and mark clearly that this
elevator is out of service.
2. Mount the receiver edge on one side of the door at
the door frame .

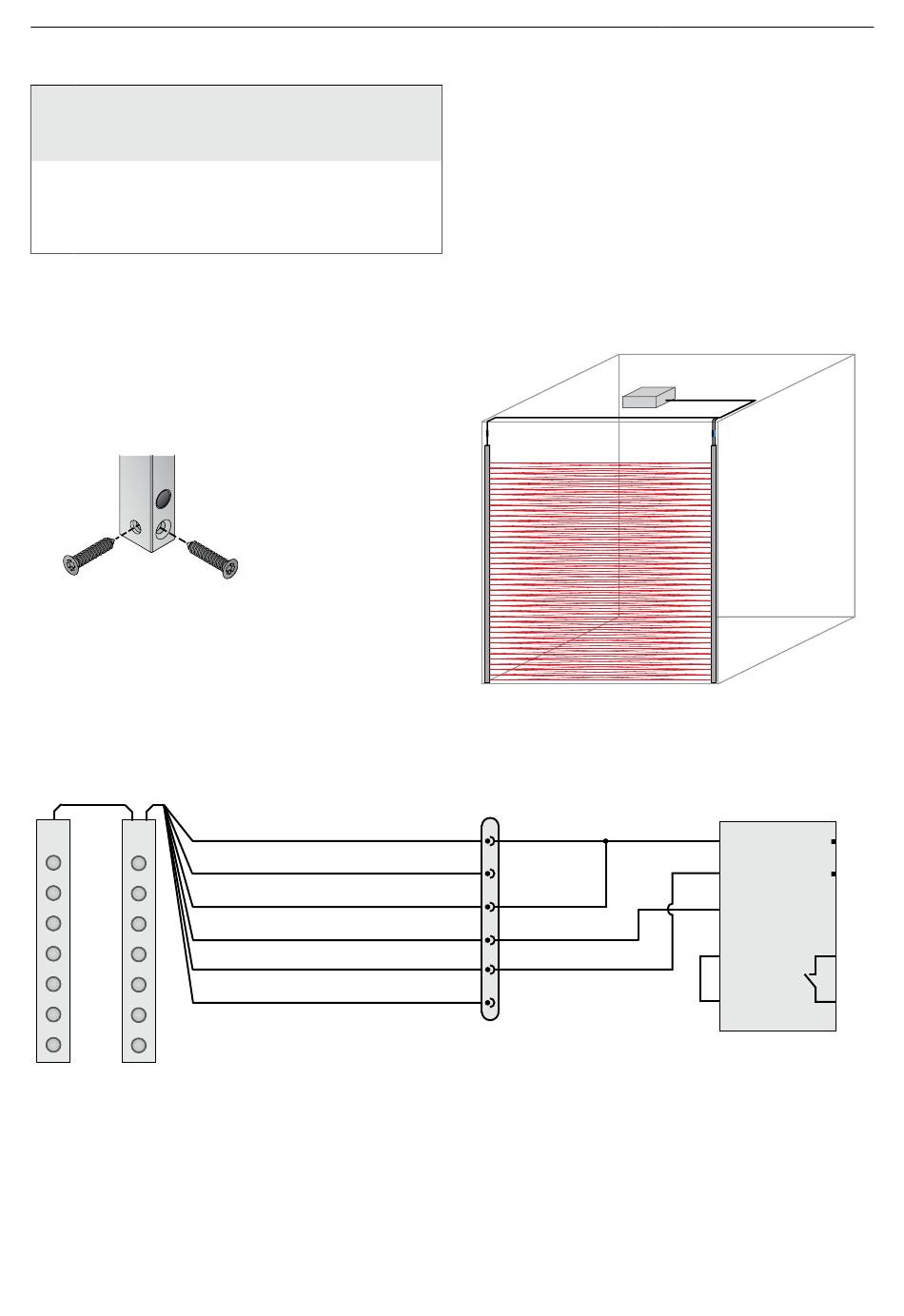

Figure 3:
Front and side mounting
6. Electrical connection
Synchronization
cable
Tx
Rx
Figure 5:
Connection diagram semiconductor output
Important: There has to be a bridge between connector 5 and 6 of the FSS Control Unit. Any unconnected (not used)
wire must be separated and isolated.
6
U
edges
SP
Not used
Test input
Output (FSS)
GND (0 V)
Not used
3. Mount the emitter edge across from the receiver
edge. Make sure the optical elements are facing each
other.
4. Connect the emitter and receiver edges using the
synchronization cable.
5. Mount the FSS Control Unit with two (2) screws onto
the elevator cab.
6. Plug the connection cable into the blue plug on the
receiver edge and connect it to the FSS Control Unit.
7. Connect the FSS Control Unit with the elevator door
controller.
8. Cover both screw heads with the cover caps provided
and close the cover of the FSS Control Unit.
Figure 4:
Mounting of FSS Control Unit
M8, 6-pin
1
brown
2
gray
3
white
4
black
5
blue
6
green
English
FSS Control Unit
1
BN
A1
U
SP
WE
A2
2
4
GN1
33
5
6
34
© CEDES | V 1.0
