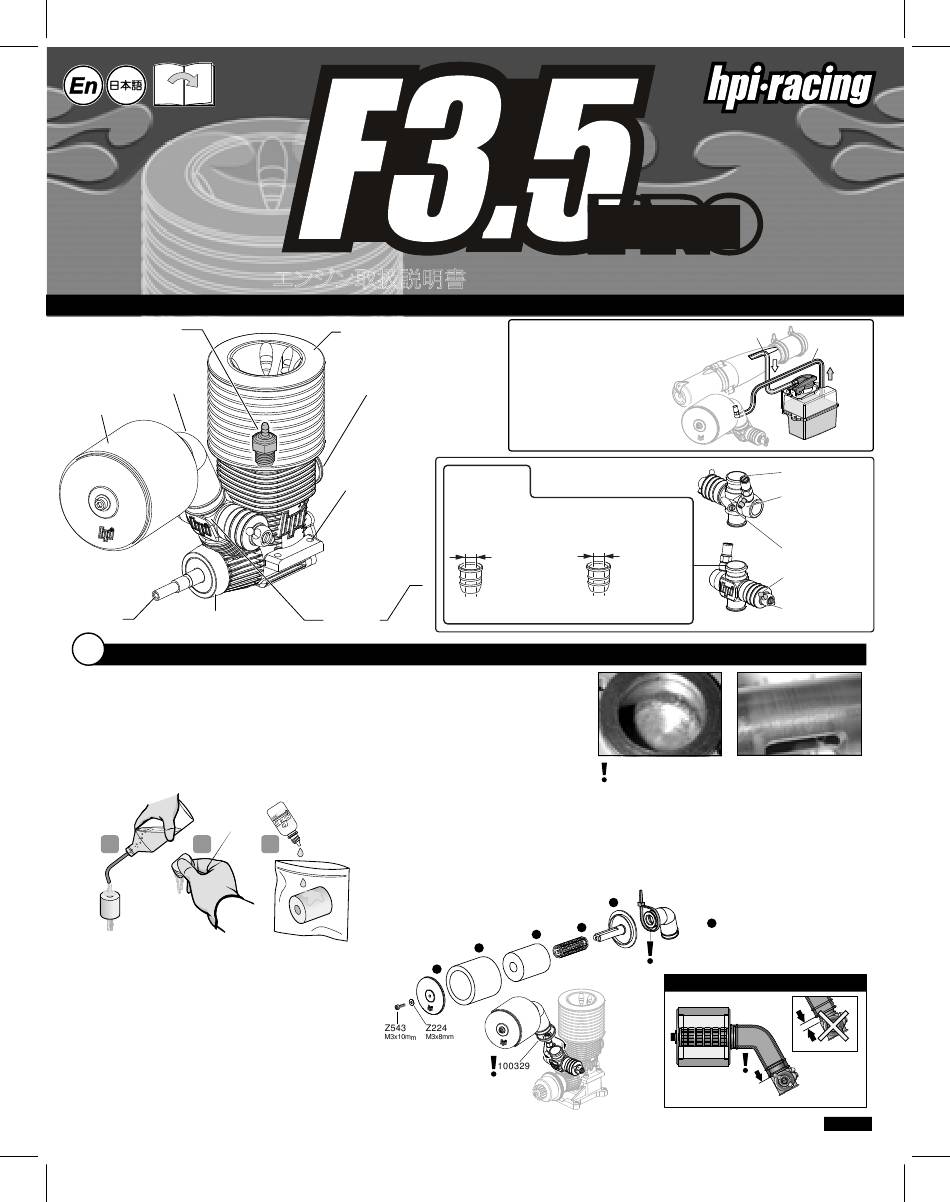

Engine Manual
エンジン解説
Engine Features
Turbo Glow Plug
ターボグロープラグ
Air Filter Boot
#87198
エアフィルターブーツ
Air Filter
エアフィルター
Crankshaft
Crankcase
クランクシャ フト
クランクケース
1
イントロダクション
Introduction
Proper Air Filter Maintenance:
Dirt is the biggest enemy of a nitro engine and proper air filter maintenance is one of the most important factors
that will effect your engines longevity. If you are using the air filter supplied with your kit, we recommend cleaning the
element after every run. If you are using an after market air filter, please follow the manufacturers recommendations.
Regardless, it is always a good habit to check the element after every run to make sure it is properly seated in the
filter body and that the body is fully seated on the carburetor. Never run the engine without the airfilter!
エアフィルターのメンテナンス
エンジンにとって大敵である泥やホコリからエンジンを守るために、 エアフィルターのメンテナンスを正しく行ってください。 キットに付属のエアフィ
ルターをご使用の場合は、 一回の走行が終了するごとにエアフィルターの洗浄を行うことをお勧めします。 他社製のエアフィルターをご使用の場合は
、 他社製品の説明書にしたがってください。 走行ごとにエアフィルターの状態 (フィルターの汚れ具合、 エアクリーナーの取り付け状態) を確認される
ことをお勧めします。 エアフィルターを付けない状態では、 決してエンジンをかけないでください!
1
2
Reinstalling The Air Filter:
After properly cleaning the filter element make sure it is reinstalled
correctly. If you are using the filter that came with your kit, follow the
illustration to reinstall the filter element in the filter body. Make sure
there are no gaps between the element and body. Make sure the
filter is fully seated on the carburetor and secure it with a tie strap
(HPI part #100329). Never run the engine without the air filter!
エアフィルターの取り付け
エアフィルターの洗浄後、 エアフィルターを正しく付け直します。 キット付属のエアフィル
ターをご使用の場合は、 付属の説明書を参考にエアフィルターの再装着を行ってくださ
い。 フィルターを取り付ける際には、 エアフィルターエレメントとエアクリーナー本体の間
に隙間がないように十分注意してください。 そして、 エアフィルターがキャブレター本体
にしっかりと取り付けられているか確認し、 ストラッ プ(HPI製品番号#100329)で固定して
ください。 エアフィルターを付けない状態では、 決してエンジンをかけないでください!
エンジン取扱説明書
Heat Sink
ヒートシンクヘッド
Exhaust Outlet
排気口
Mounting Points
エンジンマウント
Carburetor
キャブレター
Cleaning The Filter Element:
Z190
Remove and clean the air filter with nitro fuel when soiled. Spray fuel through the clean side to ensure proper dirt
Air Filter Oil
removal.Squeeze the filter to remove excess fuel. To re-coat the air filter with oil, place the element in a plastic bag
エアフィルターオイル
with several drops of air filter oil. Using your fingers, work the oil into the element making sure it is evenly distributed.
3
エアフィルターの洗浄
エアフィルターが汚れた場合には、 フィルターエレメントをエアフィルター本体から外して走行用燃料で洗います。 フィルターエレメントのきれいな側か
ら走行用燃料をかけ、 汚れを流し落としてください。 そして、 フィルターエレメントを絞り余分な燃料を取り除きます。 洗い終わったフィルターエレメント
に市販のエアフィルターオイルを数滴注ぎ、 ビニール袋等にいれ指先で揉むようにしてオイルをフィルターエレメント全体にいきわたらせてください。
a
87199
Page 1
P
Fuel Line System
The Fuel Line supplies fuel to
the engine. The Pressure line
pressurizes the fuel tank to
keep the fuel flow even.
燃料系統
燃料チューブは、 燃料をエンジンに供給
します。 エアプレッシャーチューブは、
燃料タンクに圧力をかけ燃料の供給が
安定して行われるようにします。
Option
オプション
You can change the engine characteristics by installing
a restrictor.
レデューサーを交換することでエンジンの特性を変更できます。
8.0mm (Installed)
7.0mm
Restrictor 8.0mm
Restrictor 7.0mm
レデューサー
レデューサー
For better fuel consumption More top end power
パワーが出やすくなります。
燃費が良くなります。
Never run the engine without the air filter!
エアフィルターを付けない状態では、 決してエンジンをかけないでください!
87199
c
87199
b
87204
b
87204
a
R
O
Pressure Line
エアプレッシャーチューブ
High Speed Needle
Carburetor
メインニー ドル
キャブレター
Fuel Inlet
燃料取入れ口
Idle Adjustment Screw
アイ ドリング調整ネジ
Throttle Linkage
スロッ トルリンケージ
ボールジョイン ト
Low Speed Needle
スローニー ドル
100329
87199
d
Note:
Hinweis:
重 要
OK!
Fuel Line
燃料チューブ
101980
