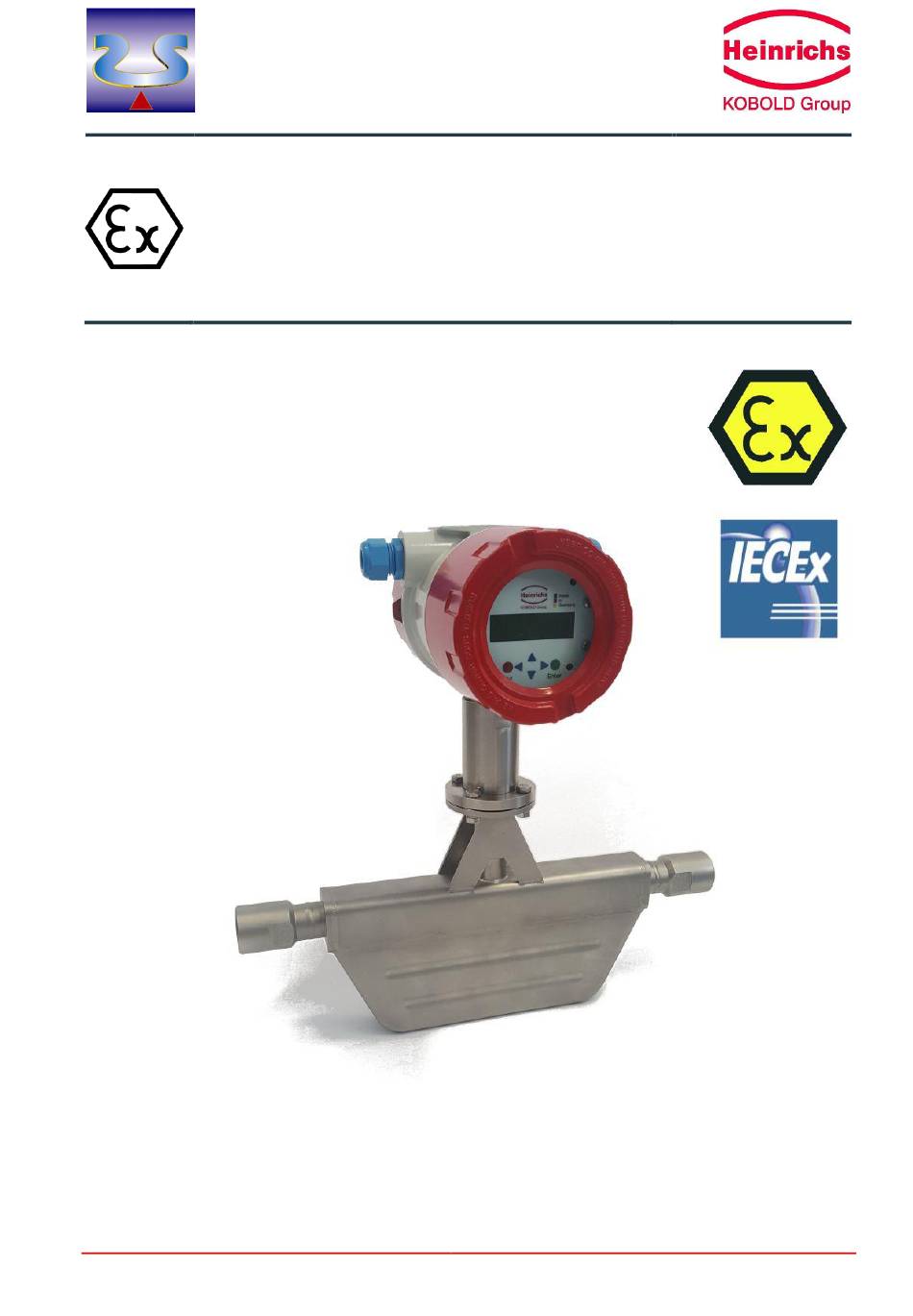

Heinrichs UMC4 Operating Manual

Coriolis mass flow meter
Table of Contents

Advertisement

Quick Links

UMC4
with
TM, TME,
Coriolis Mass Flow Meter
TMU, TMR
TM-SH
Supplementary Operating Manual for
explosion-proof flow meters
This operating manual contains important information for the operation in potentially explosive atmospheres
Please read the instructions carefully and store them in a safe place for future reference
Heinrichs Messtechnik GmbH
EX-Supplementary Operating Manual UMC4-TMx
January 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UMC4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Heinrichs UMC4

  • Page 1 This operating manual contains important information for the operation in potentially explosive atmospheres Please read the instructions carefully and store them in a safe place for future reference Heinrichs Messtechnik GmbH EX-Supplementary Operating Manual UMC4-TMx January 2021...
  • Page 2: Table Of Contents

    Sensor Parameters ..............................12 4.4.2 Ambient temperature range Ta ..........................13 4.4.2.1 Conditions for safe operation .......................... 14 4.5 Description of the UMC4 transmitter ..........................14 4.5.1 Device identification ..............................14 4.5.2 Ignition category of the transmitter ........................14 4.5.3 Connecting cables ................................
  • Page 3 4.5.4.5 Ambient temperature range Ta ........................18 INSTALLATION AND COMMISSIONING ..................19 5.1 Special conditions for safe use for the UMC4 ........................19 5.2 General conditions for safe operation ..........................19 5.3 Requirements for installation in all environments......................20 5.4 Ex relevant screw and bolt torques ............................. 20 MAINTENANCE AND REPAIR WORK ...................
  • Page 4: Introduction

    October 2018 or later. These instructions are supplementary operating manual for non-explosion proof Coriolis flow meters. If you do not have a copy of the latter instructions, please request one from Heinrichs Messtechnik GmbH or download the instructions from our website.
  • Page 5: Steps Prior To Operation

    The UMC4 transmitter described herein is only to be used to measure mass and volume flow, as well as liquid and gas density and temperature, in conjunction with a Heinrichs Messtechnik GmbH TM, TME, TMU, TMR or TM-SH sensor.
  • Page 6: Hazard Warnings

    The manufacturer accepts no responsibility in regard to such material and housing. Warning In order for the device to perform correctly and safely, it must be shipped, stored, set up, mounted operated and maintained properly. Page 6 of 31 Ex-Supplement operating manual UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 7: Identification

    Mass flow-rate meter for liquid and gaseous products Product name: Sensor type: TM / TMU / TME / TMR / TM-SH Transmitter type: UMC4 File name: umc4_ex-ba_21.01_en.doc Version:. 21.01, Date, January 31, 2021 Ex- Supplement operating manual Page 7 of 31 UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 8: General Information About Explosion Protection

    212 °F 85 °C 185 °F Equipment protection level, Gases: Ga, Gb oder Gc Dust: Da, Db or Dc Explosion protection designations [square brackets] refer to “Related electrical equipment or circuits.” Page 8 of 31 Ex-Supplement operating manual UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 9: Coriolis Mass Flow Meter

    Sensor circuit 2 Temperature sensor circuit (PT1000) If the transmitter is mounted externally, it should be connected to the sensor using a Heinrichs Messtechnik cable that is specially designed for this purpose. Although the appearance of the standard and explosion-proof transmitters is identical and their rating plates...
  • Page 10: Mounting

    A dedicated cable SLI2Y (SP) CY 5 x 2 x 0.5 mm² [blue] is to be used for the electrical connection between sensor and remote mount transmitter. This cable, which is available from Heinrichs Messtechnik, has five twisted pairs, each of which has a foil shield and filler cord. The filler cords are to be installed on the “shield”...
  • Page 11: Sensor Cable Pin Assignment

    = 170 pF/m wire to shield = 500 µH/km wire to shield Warning If a connecting cable other than the Heinrichs Messtechnik cable is used, the intrinsic safety of the cable is to be validated using the cable’s nominal values 4.3.3.3...
  • Page 12: Ec Type-Examination Certificate For The Sensors

    Sensor circuits (terminals 1 – 2 and 3 - 4) Voltage 30 V Current 50 mA Power 0,3 W Effective internal capacitance negligible Effective internal inductance 14 mH Output voltage AC 0,3 V Page 12 of 31 Ex-Supplement operating manual UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 13: Ambient Temperature Range Ta

    200 mm -40 to +100 220/260 (2) The maximum process temperature of 260 °C only short-term. Refer to section 3.1 for more details. Integral mount configuration See chapter 4.5.4.5 Ex- Supplement operating manual Page 13 of 31 UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 14: Conditions For Safe Operation

    Description of the UMC4 transmitter When used in conjunction with the sensor, the UMC4 transmitter measures the mass flow of liquids and gases in pipelines. The transmitter can be mounted on the sensor or remote. The configuration can be carried out by using a built-in or standalone control unit.
  • Page 15: Connecting Cables

    4.5.3.1 Sensor circuits Compact mounted transmitter UMC4 The sensor circuits in compact mounted assemblies are considered as internal connections and are already wired up and matched by the manufacturer. There is no need to check the intrinsic safety be the operator.
  • Page 16: Cable And Conduit Entries

    They have to be certified for the type of protection of the transmitter and fit to the cables used. The transmitter series UMC4 for temperature class T4 does not have own ignition sources as long the transmitter runs in smooth operation. Therefore explosion proof certified cable and conduit entries with sealing ring can be used.
  • Page 17: Sensor Circuits Type Of Protection Ex Ia Ii

    Linear output characteristic Type of protection Ex ia IIC Max. external inductance Max. external capacitance 1305 Type of protection Ex ia IIB Max. external inductance Max. external capacitance 8385 Ex- Supplement operating manual Page 17 of 31 UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 18: Signal Output Circuits With Ex Ia Ii Type Of Protection

    130 °C 55 °C 150 °C 50 °C For the types UMC4-D***** and UMC4-E***** (remote version). If the transmitter is installed remote from the process, the ambient temperature range is -20°C to +60 °C. Page 18 of 31 Ex-Supplement operating manual...
  • Page 19: Installation And Commissioning

    0,7 µH/m = 0.5mH/km For type UMC4-E***** transmitters the sensor cable must be installed in such a way that tensile force is omitted. Damaged threaded or flat joints which may impair the IP protection of the enclosure shall not be repaired or modified.
  • Page 20: Requirements For Installation In All Environments

    6 Nm Nuts sensor-neck/J-box 6 Nm Screws J-box lid (Aluminium) 2 Nm Screws J-box lid (Polyester) 1.2 Nm Cable glands to J-box adapter 12 Nm Cable gland caps 8 Nm Page 20 of 31 Ex-Supplement operating manual UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 21: Maintenance And Repair Work

    6 month interval 12 month interval Visual inspection of equipment for intactness, removal of dust settlements Check of electrical system for intactness and functionality Check of entire system User's responsibility Ex- Supplement operating manual Page 21 of 31 UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 22: Warning Notices

    The following warning or similar wording is printed on the plastic cover of the TME sensor body: • Caution! Electrostatic charging possible; To be considered during cleaning and maintenance work. Page 22 of 31 Ex-Supplement operating manual UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 23: Model Codes

    Heinrichs Messtechnik GmbH 8. Model codes The Transmitter UMC4 UMC4 Type of protection signal circuits 0 = without 1 = intrinsically safe Ex ia 2 = non-intrinsically safe Certificate 0 = without 2 = II (1)2 G Ex d [ia Ga] IIC T4-T3 Gb...
  • Page 24: The Tm Sensor

    (*2) = The Abbreviations Al and PE determine whether an aluminium (Al) or polyester (PE) terminal box is selected. (*3) = The maximum process temperature of 260 °C is only permitted short-term. Refer to section Fehler! Verweisquelle konnte nicht gefunden werden. for more details Page 24 of 31 Ex-Supplement operating manual UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 25: The Tmu Sensor

    (*2) = The Abbreviations Al and PE determine whether an aluminium (Al) or polyester (PE) terminal box is selected. (*3) = The maximum process temperature of 260 °C is only permitted short-term. Refer to section Fehler! Verweisquelle konnte nicht gefunden werden. for more details Ex- Supplement operating manual Page 25 of 31 UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 26: The Tme Sensor

    „A“ shall no longer be produced, and are therefore no longer available for delivery. (*2) = The Abbreviations Al and PE determine whether an aluminium (Al) or polyester (PE) terminal box is selected. Page 26 of 31 Ex-Supplement operating manual UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 27: The Tmr Sensor

    (*2) = The Abbreviations Al and PE determine whether an aluminium (Al) or polyester (PE) terminal box is selected. (*3) = The maximum process temperature of 260 °C is only permitted short-term. Refer to section Fehler! Verweisquelle konnte nicht gefunden werden. for more details Ex- Supplement operating manual Page 27 of 31 UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 28: The Tm-Sh Sensor

    (*1) = After implementation of ATEX supplement 7 (IEC issue 1), sensors of supplement 6 (IEC issue 0) with the code „A“ shall no longer be produced, and are therefore no longer available for delivery Page 28 of 31 Ex-Supplement operating manual UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 29: Ec Declaration Of Conformity

    Heinrichs Messtechnik GmbH 9. EC Declaration of conformity Ex- Supplement operating manual Page 29 of 31 UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 30 Heinrichs Messtechnik GmbH Page 30 of 31 Ex-Supplement operating manual UMC4 with TM/TMU/TME/TMR/TM-SH...
  • Page 31 Heinrichs Messtechnik GmbH Ex- Supplement operating manual Page 31 of 31 UMC4 with TM/TMU/TME/TMR/TM-SH...

This manual is also suitable for:

TmTmeTmuTmrTm-sh
