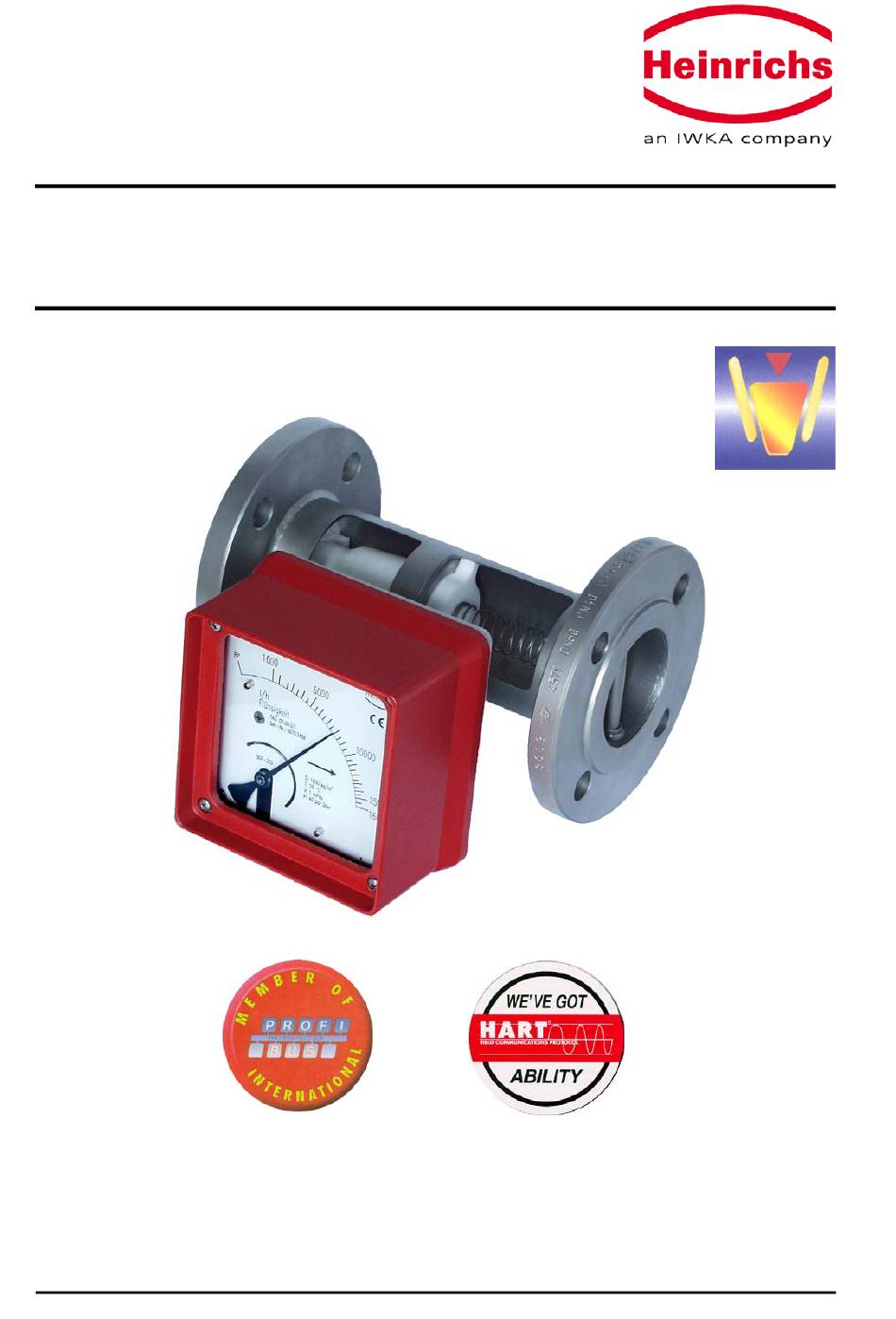

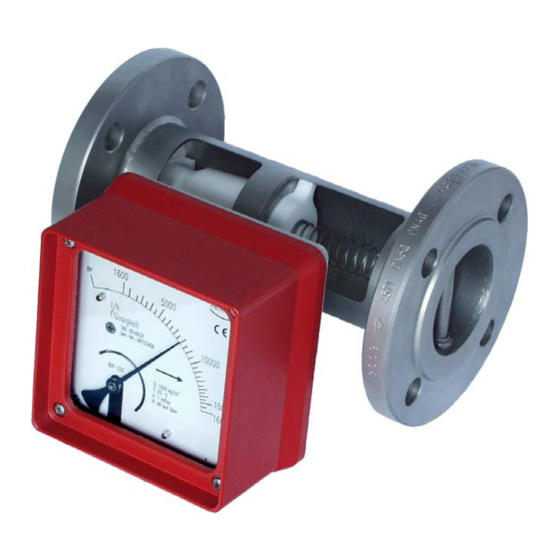

- Page 1 Variable-Area Flowmeter for Horizontal and Vertical Installation Installation and Operating Instructions...
-
Page 2: Table Of Contents
Heinrichs Messtechnik BGF Installation and Operating Instructions Contents Identification ............................4 Supplier/manufacturer ................................4 Product type..................................4 Product name..................................4 Issue date .....................................4 Version no.....................................4 Applications ............................4 Operational mode and system design ....................4 Measuring principle................................4 System design ..................................4 Input...............................4 Measured variable ................................4 Measuring range (lower-range and upper-range value) .......................4 Measuring range table ................................5... - Page 3 20 Returning devices for repair and service ..................19 21 Replacement parts ..........................19 22 Exploded views...........................20 22.1 F tting with measuring body ..............................20 22.1.1 BGF-..standard version DN 15-25 .........................20 22.1.2 BGF-..standard version DN 50-80 .........................20 22.2 I dicator unit ..................................21 22.2.1 Complete indicator unit, local with scale........................21...
-
Page 4: Identification
Measuring ring Applications Measuring body Magnet tracking system The BGF meter is suitable for flow measurement of liquid or Scale gaseous products in pipes. The special advantage is that Indicator unit it can be used for all directions of flow. It shows the current flow rate in volume or mass per unit in time. -
Page 5: Measuring Range Table
Heinrichs Messtechnik BGF Installation and Operating Instructions Measuring range table Measuring range table Nominal Measuring Measuring range for Measuring range for air Pressure loss Remarks size (DN) range water at 1000 kg/m3 at 1.013 bars absolute (mbar) pressure 16 – 160 0.5 –... -
Page 6: Analog Output With The Kinax 3W2 Angle-Of-Rotation Transmitter
Characteristic values Accuracy 6.1.1 Reference conditions Water 20°C 6.1.2 Measured error BGF-S/P +/-2.0 % of URV for local display (URV = upper-range value) Additional inaccuracy for: = +/- 0.2% KINAX 3W2 = +/- 0.5% 6.1.3 Repeatability +/-0.8 % of URV... -
Page 7: Mounting/Start-Up
Heinrichs Messtechnik BGF Installation and Operating Instructions behind the device are unnecessary if the medium has a 7.1.2 Device settings linear flow profile. Avoid mounting accessories converging The measuring equipment is delivered ready for operation on one side in front of the device. However, if this is according to your order specifications. -
Page 8: Operation In Hazardous Areas
Heinrichs Messtechnik BGF Installation and Operating Instructions Example for calculating the max. fluid temperature based on the max. ambient temperature for the built-in sensor Type 7.1.4 Operation in hazardous areas ES for DN 15/25. 7.1.4.1 Without electrical equipment The basic version of the flowmeter is a non-electrical device = 70°C... -
Page 9: Fluid Conditions
Heinrichs Messtechnik BGF Installation and Operating Instructions BGF-P*****P* -20°C to 125°C BGF-P*****K* -0°C to 80°C Fluid conditions The effect of the fluid temperature on the indicator unit and 7.3.1 Fluid temperature ranges its built-in components must be considered. A pulled-... -
Page 10: Fluid Pressure Limit
Heinrichs Messtechnik BGF Installation and Operating Instructions 7.3.3 Fluid pressure limit Standard version: BGF-S DN 15/25/40/50/80 PN 40 BGF-P DN 15/25/50/80 PN 16 Special version: BGF-S up to PN 400 7.3.4 Inlet and outlet sections Inlet and outlet sections are not required for a linear flow profile of the fluid. -
Page 11: Construction Details
Heinrichs Messtechnik BGF Installation and Operating Instructions Construction details 8.1.2 Dimension drawing for heating connection The two main parts of the flowmeter are the valve with the measuring element and the indicator unit. A heating or cooling jacket can be added to the fitting. -
Page 12: Indicator Housing Made Of Stainless Steel
B16.5 3“, 300 lbs, ANSI 14.5 B16.5 Flange connections for the measuring element The BGF series can be equipped with the following flanges: Fitting Flange DN 15 DN 15 PN 40 Form C DIN 2501 DN 15 PN 40 Form N DIN 2512 ¾“... -
Page 13: Magnetic Filter
BGF Installation and Operating Instructions Magnetic filter BGF flowmeter with preceding magnetic filter (1) The BGF flowmeter is sensitive to impure media. Before installing the device, clean the pipes of dirt, spatter and other foreign matter. If the medium comes with solid particles, connect a suitable filter in series. -
Page 14: Electrical Connection
Heinrichs Messtechnik BGF Installation and Operating Instructions Electrical connection Wiring To connect the auxiliary power, remove the indicator cover, insert the connector cable into the cable gland and attach it to the terminals according to the terminal diagram. Tighten the cable gland securely, remount the indicator cover and close it tightly. -
Page 15: Wiring Diagram For Es Transmitter With 4- 20 Ma Output, Pulse Output And Limit Transducer
Heinrichs Messtechnik BGF Installation and Operating Instructions Wiring diagram for ES transmitter with 4- 20 mA output, pulse output and limit transducer Wiring diagram for inductive limit transducers Page 15 of 29... -
Page 16: Wiring Diagram For Kinax 3W2 Transmitter With 4-20 Ma Output, 2 Wires
Heinrichs Messtechnik BGF Installation and Operating Instructions Wiring diagram for KINAX 3W2 transmitter with 4-20 mA output, 2 wires Wiring diagram for KINAX 3W2 transmitter with 4-20 mA output, 3 wires Page 16 of 29... -
Page 17: Wiring Diagram For Kinax 3W2 Transmitter With 4-20 Ma Output, 4 Wires
Heinrichs Messtechnik BGF Installation and Operating Instructions Wiring diagram for KINAX 3W2 transmitter with 4-20 mA output, 4 wires Wiring diagram for KEM 1 and KEM 2 double-throw microswitches Page 17 of 29... -
Page 18: Indicator Unit
Customized product scale 15.1 Intended use ES transmitter with freely programmable user interface The BGF variable-area flowmeter may be used only for flow Parameters may be changed based on the ES measurements of fluid and gaseous media. The Operating Instructions. -
Page 19: Installing And Removing The Resetting Spring And The Measuring Body
If hazardous materials remain in or on the device after it has the measuring body from turning by using a suitable tool been returned, Heinrichs Messtechnik shall be authorized to from above. Unscrew the lock nuts from below and remove remove them at the client’s expense without further inquiry. -
Page 20: Exploded Views
Heinrichs Messtechnik BGF Installation and Operating Instructions 22 Exploded views 22.1 Fitting with measuring body Name Part no. Fitting Measuring body Resetting spring 22.1.2 BGF-..standard version DN 50-80 22.1.1 BGF-..standard version DN 15-25 Page 20 of 29... -
Page 21: I Dicator Unit
Heinrichs Messtechnik BGF Installation and Operating Instructions 22.2 Indicator unit 22.2.2 Complete indicator unit with 1 SJ 3,5 N limit Part Name transducer Mounting plate with 1 thread M 20 x 1.5 Mounting plate with 2 threads M 20 x 1.5... -
Page 22: Complete Indicator Unit With E2 Kinax Ex Transmitter
Heinrichs Messtechnik BGF Installation and Operating Instructions 22.2.6 Indicator unit with transmitter type ES Ex HART® 22.2.4 Complete indicator unit with E2 KINAX Ex transmitter (141) (142) Part Name Mounting plate with 1 thread M 20 x 1.5 Mounting plate with 2 threads M 20 x 1.5 22.2.5... -
Page 23: Decontamination Certificate For Device Cleaning
Heinrichs Messtechnik BGF Installation and Operating Instructions 23 Decontamination certificate for device cleaning Company: ....... City: ........Department: ......Name: ......Tel. No.: ......This variable-area flowmeter type BGF-..was operated using the measured medium..............Since this measured medium is dangerous in water/poisonous/corrosive/flammable,... -
Page 24: Ec Type Examination Certificate
Heinrichs Messtechnik BGF Installation and Operating Instructions 24 EC Type Examination Certificate Page 24 of 29... - Page 25 Heinrichs Messtechnik BGF Installation and Operating Instructions Page 25 of 29...
- Page 26 Heinrichs Messtechnik BGF Installation and Operating Instructions Page 26 of 29...
- Page 27 Heinrichs Messtechnik BGF Installation and Operating Instructions Page 27 of 29...
- Page 28 Heinrichs Messtechnik BGF Installation and Operating Instructions Page 28 of 29...
-
Page 29: Sales Representatives
Heinrichs Messtechnik BGF Installation and Operating Instructions 25 Sales representatives Internet: http://www.heinrichs-mt.com/ 26 Notes Page 29 of 29...
