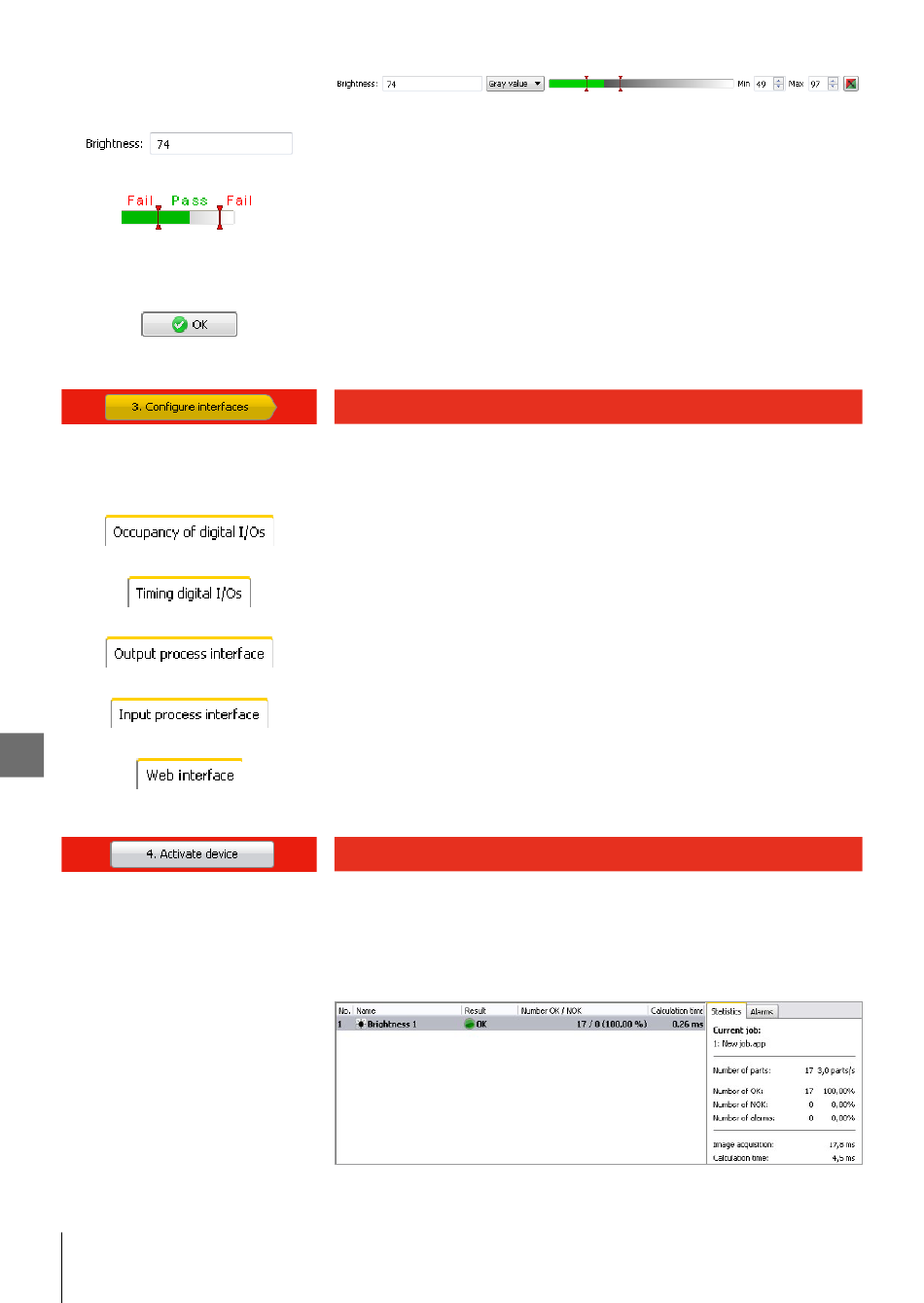

The mean gray-value currently measured in the field of
view is indicated as .
BRIGHTNESS
The associated switching thresholds for Pass/Fail may be
adjusted by graphic input or by directly entering the
/ values.
MIN MAX
Confirm your settings with the button
OK
3. Configure interfaces
Select the appropriate settings on the tabs.
Output assignment, Flexible result conjunction
(device dependent)
Output time, Duration of output signal
Settings, as the data is transferred
(excluding OC5381XX / OC5391XX)
Inputs via the process interface
(excluding OC5381XX / OC5391XX)
EN
Configuration web interface

4. Activate device

You can now activate opti-check. The Application Suite
displays the current statistics of each feature check, the
entire evaluation and live images.
