English

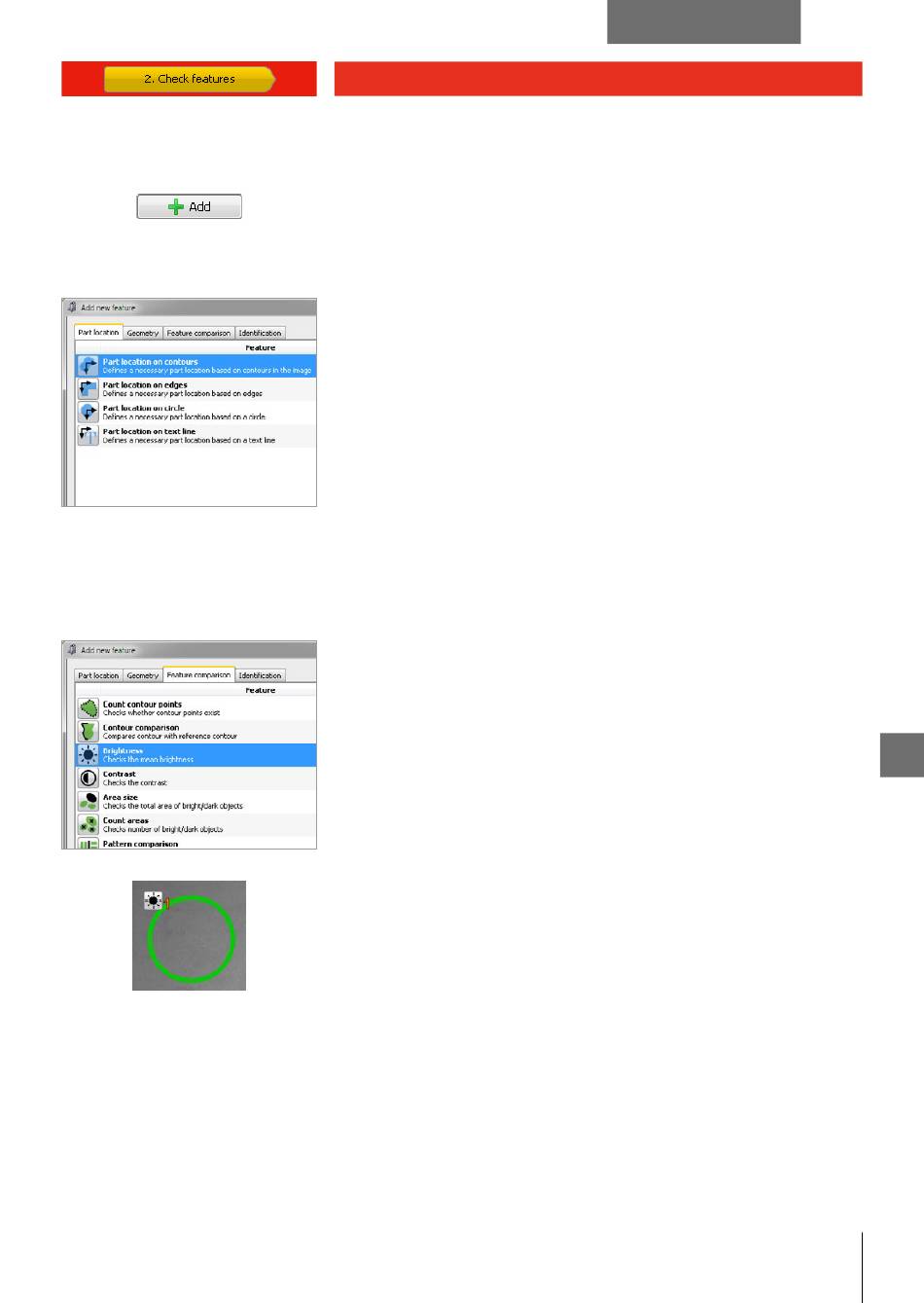

2. Add new feature checks
Now you can determine which features of the object to
be checked.
The command to link new feature checks is located in the
right hand corner of the parameter area. With the
ADD
button, you can create a new feature check for your job.
As each inspection process has tolerances with regard
to the position of the test object, most jobs begin
with part location. The part location searches for
the reference edges of the test object and aligns all
subsequent feature checks to these reference edges.
After selection of a feature check you can parametrize
the feature to be checked. Each feature is optimized for
just one inspection task and supplies a Pass (OK) or
Fail (NOK) result.
Example:
Setting of feature check
BRIGHTNESS
For this example, select the feature check on
BRIGHTNESS
the tab . Confirm selection of this
FEATURE COMPARISON
EN
feature check with OK.
In the example, the field of view is dragged as a circle.
Adjust it by clicking on area's center and holding the left
mouse button depressed.
