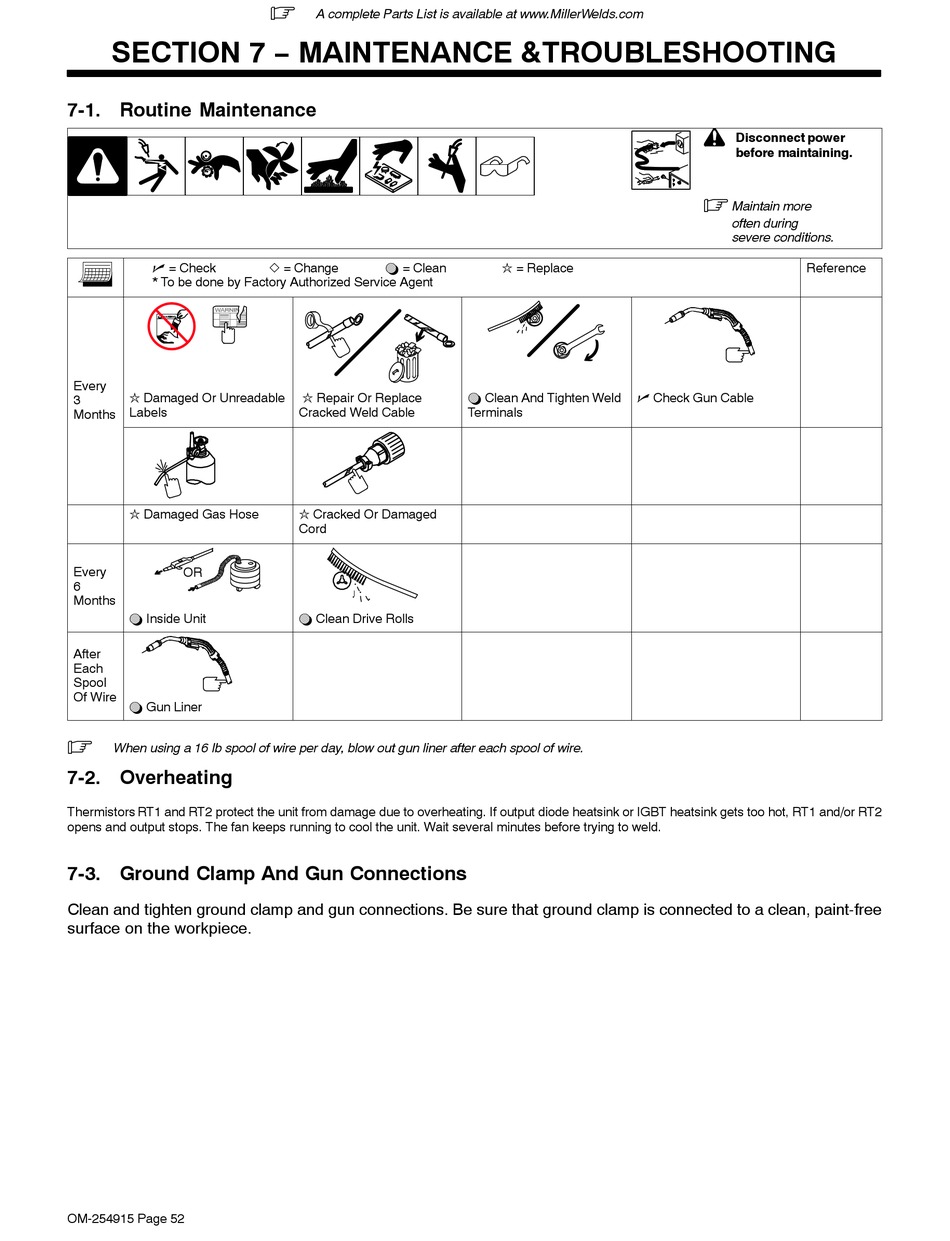

SECTION 7 − MAINTENANCE &TROUBLESHOOTING
7-1. Routine Maintenance
n = Check
* To be done by Factory Authorized Service Agent
Every
l Damaged Or Unreadable
3
Labels
Months
l Damaged Gas Hose
Every
OR
6
Months
~ Inside Unit
After
Each
Spool
Of Wire
~ Gun Liner
.
When using a 16 lb spool of wire per day, blow out gun liner after each spool of wire.
7-2. Overheating
Thermistors RT1 and RT2 protect the unit from damage due to overheating. If output diode heatsink or IGBT heatsink gets too hot, RT1 and/or RT2
opens and output stops. The fan keeps running to cool the unit. Wait several minutes before trying to weld.
7-3. Ground Clamp And Gun Connections
Clean and tighten ground clamp and gun connections. Be sure that ground clamp is connected to a clean, paint-free
surface on the workpiece.
