Prestige APS787Z Quick Installation Manual

APS787Z
Security and Remote Start

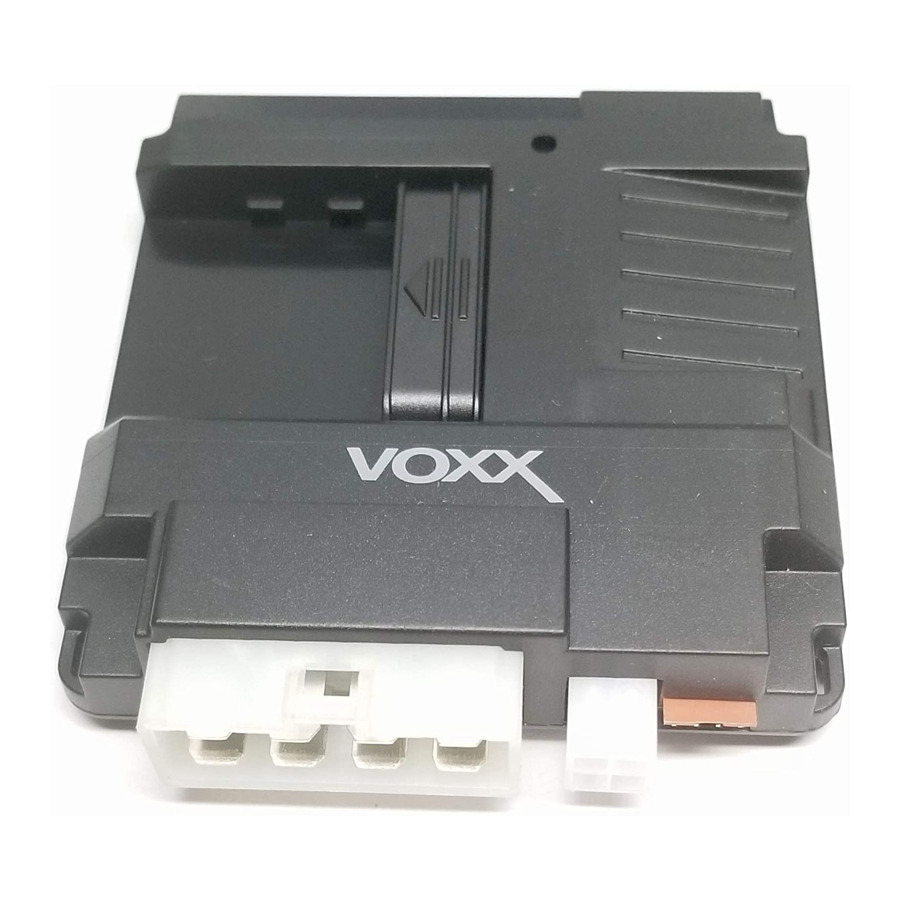

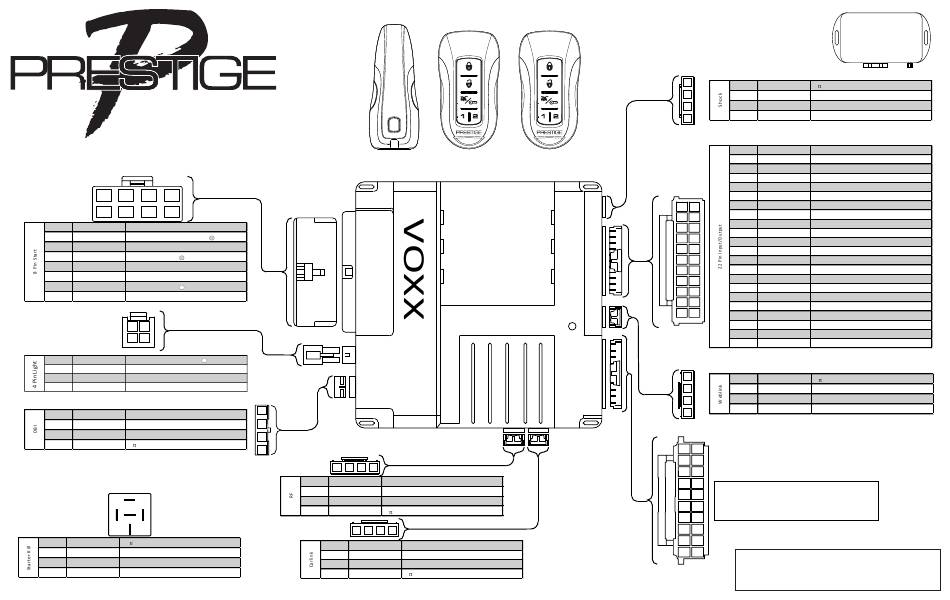

System Layout
1 3 5 7
2 4 6 8
1 Red/Black
Igni�on 3 Flex Relay (87) Input
2 Pink
Igni�on 3 Flex Relay (30) Output
3 Yellow Starter Output (+)
4 Green
Igni�on 2 Output (+)
P
5 Red
Ba�ery 12V (+)
6 Red/White
Ba�ery 12V (+)
7 Purple
Accessory Output (+)
P
8 Blue
Igni�on 1 Input / Output (+)
Replacement Part #4120458
1 3
2 4
1 White
Parking Light (30) Output
2 White/Red
Parking Light (87) Input
3 White/Black
Siren Output (+)
4 Black
Ground Input (-)
Replacement Part #4120462
1
White Data RX
2
Black Ground (-)
3 Blue
Data TX
4 Red
Ba ery 12V (+)
Not Included
87
87A
86 85
30
85 Red
Igni on Input (+)
86 Orange
Starter Kill Input (-)
87A
Black Starter Output - Motor Side
30
Black/White Starter Input - Key Side
Replacement Part #4360828
P
P
1
2
Replacement Part #4360830
3
4
1 2 3 4
1
White Data RX
2
Blue Data TX
3 Black
Ground (-)
4 Red
Ba ery 12V (+)
Not Included
1 2 3
1
Blue
2
White
3 Black
4 Red
Not Included
4180075 185SP 185SP
FLCART Dock
4
Data TX
Data RX
Ground
Ba ery 12V (+)
4
4 Red
Ba ery 12V (+)
3
3 Black
Data TX
2
2 Blue Warn Away
1
Green Full Trigger
1
Green
22 Unlock Output (-) (NOC 11)
Dk. Blue
21 Trunk Output (-) (NOC 9)
20 Red Lock Output (-) (NOC 10)
19 Green/Lt. Blue Ch. 4 AUX Output (-) (NOC 8)
18 Black/White Horn Output (-)
17 Lt. Blue/Green Ch. 5 AUX Output (-) (NOC 7)
21 22
16 Red/Black 2nd Unlock Output (-) (NOC 12)
Black/Lt. Green
15 Factory Arm Output (-) NOC 6)
19 20
14 Brown/Black Brake Input (+) (PIC 6)
17 18
13 Black/Blue Factory Disarm Output (-) (NOC 5)
15 16
12 Dk. Blue/Black External Ac�va�on Input (-) (PIC 5)
13 14
11 Black/Red Pulse A�er Shutdown Output (-) (NOC 4)
11 12
10 Orange/Black Parking Brake Input (-) (PIC 4)
9 10
9 Black/Yellow Pulse During Crank Output (-) (NOC 3)
7 8 8 Green/Yellow Diesel Glow Plug Input (+) (PIC 3)
7 Green/White DomeLight Output (-) (NOC 2)
5 6
6 Purple/Brown Door Trigger Input (- / +)
3 4
5 Lt. Blue Remote Start Status Output (-) (NOC 1)
1 2
4 Green/Orange Tach Input (-)
3 Gray/Black Hood Input (-) (PIC 2)
2 Lt. Green Trunk Trigger Input (-) (PIC 1)
1 Orange Starter Kill Relay / An�-Grind Output (-)
4
4 Red
Ba ery 12V (+)
3
3 Black
Ground (-)
2
2 Blue Data TX
1
White Data RX
1
19 20
17 18
15 16
13 14
This Harness is included with the FLCART.
11 12
For Wire Informa�on and Diagram Please Refer to Vehicle Specific
FlashLogic Install Guide.
9 10
Visit www.FlashLogic.com for More Informa�on.
7 8
Not Included
5 6
3 4
1 2
Important Update
The default Data Port Protocol of this system is ADS. If using an FLCAN or other external integration
module be sure to choose iDatalink 2-Way when flashing.
This system will also support DBI. This will require programming Feature Bank 2, Feature 15 to DBI.
Shock Sensor
Part #4700033
Replacement Part #4120459
Replacement Part #4120457
Not Included
