2 | EX72 Explosion‑protected Camera
Compact Ruggedized Construction
•
Small, unobtrusive and discreet housing
•
Certified CSA Type 4X design for indoor and outdoor
performance
•
High-strength reinforced aluminum construction
strong enough to withstand an internal explosion.
•
Threaded flame paths extinguish burning explosive
gases, allowing them to exit the housing harmlessly,
without risking ignition in the external environment
Installer-Friendly Features
•
Varifocal lens 4 to 9 mm or 9 to 22 mm
•
12 VDC / 24 VAC operation
•
Optional pan-tilt brackets
•
Optional wall and pole adapter plates
Certifications and Approvals
Region
Certification
Europe
CE
ATEX
Canada
CSA
CSA/NRTL
LR 113310
Class
2258 / 82 - Process Control Equipment - For Hazardous Lo-
cations - Certified to US Standard
2258 / 02 - Process Control Equipment - For Hazardous
Locations
Safety
UL / CSA / ATEX
UL 508, 16th Edition - Industrial Control Equipment
UL 698, 11th Edition - Industrial Control Equipment for
Use in Hazardous (Classified) Locations
UL 1203, 2nd Edition - Explosion-Proof and Dust-Ignition-
Proof Elec. Eqmt for Use in Hazardous (Classified) Loca-
tions
CSA C22.2 No.0-M1991 - General Requirements - Canadi-
an Electrical Code Part II
CSA C22.2 No.0.4-M1982 - Bonding and Grounding of
Electrical Equipment (Protective Grounding)
CSA C22.2 No.25-M1966 - Enclosures for Use in Class II
Groups E, F and G Hazardous Locations
CSA C22.2 No.30-M1986 - Explosion-proof Enclosures
for Use in Class I Hazardous Locations
CSA C22.2 No.94-M1991 - Special Purpose Enclosures
CSA C22.2 No.142-M1987 - Process Control Equipment
Class I, Division 1 and 2, Groups B, C, and D
Class II, Division 1 and 2, Groups E, F, G
Class III
ATEX Ex II 2G certified - Equipment or Protective System
intended for use in Potentially Explosive Atmospheres; Di-
rective 94/9/EC
ATEX Ex d IIC T6 certified - Equipment or Protective Sys-
tem intended for use in Potentially Explosive Atmos-
pheres; Directive 94/9/EC
Operational Temperature Code T6 (At ambient operational temperature
of 40ºC, the maximum unit surface temperature will not ex-
ceed 85ºC.)
Environ-
CSA / NEMA TYPE 4X
mental
Installation/Configuration Notes

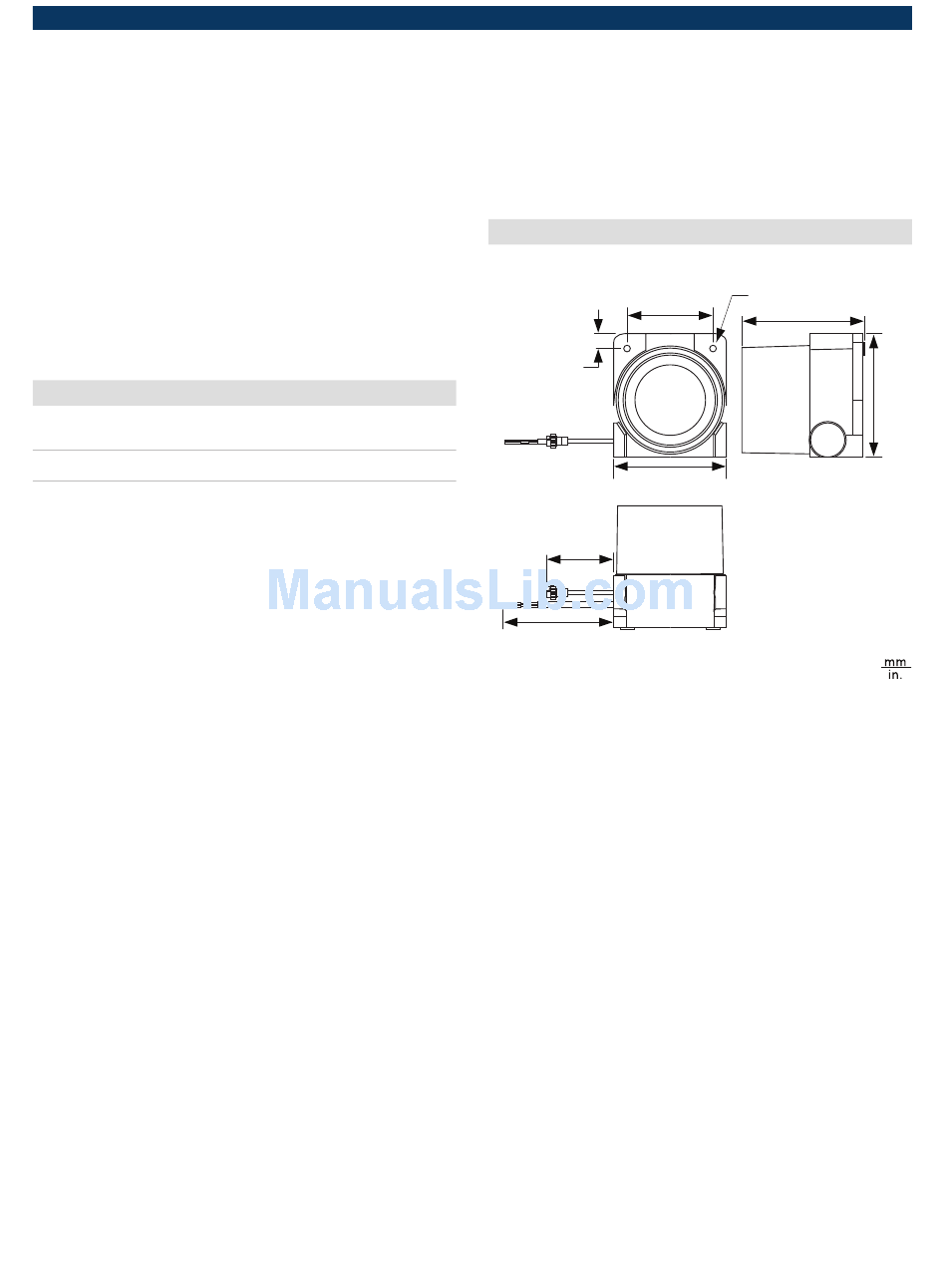

Dimensions
103.6
(4.08)
17
(0.67)
135
(5.30)
79 min.
(3.10)
150 min.
(5.91)
Flexible Mounting Options
•
Wall mounting
-
use a combination of EXMB.072B (EX72 adapter
plate), EXMB.028B (pan/tilt bracket) and EXMB.
017B (wall mount adapter).
•
Pole mounting
-
use a combination of EXMB.072B (EX72 adapter
plate), EXMB.028B (pan/tilt bracket) and EXMB.
015B (pole mount adapter).
•
Ceiling mounting
-
use a combination of EXMB.072B (EX72 adapter
plate) and EXMB.004B (ceiling bracket).
All brackets are available as optional accessories.
Ø8
(0.31)
146
(5.75)
146
(5.75)
