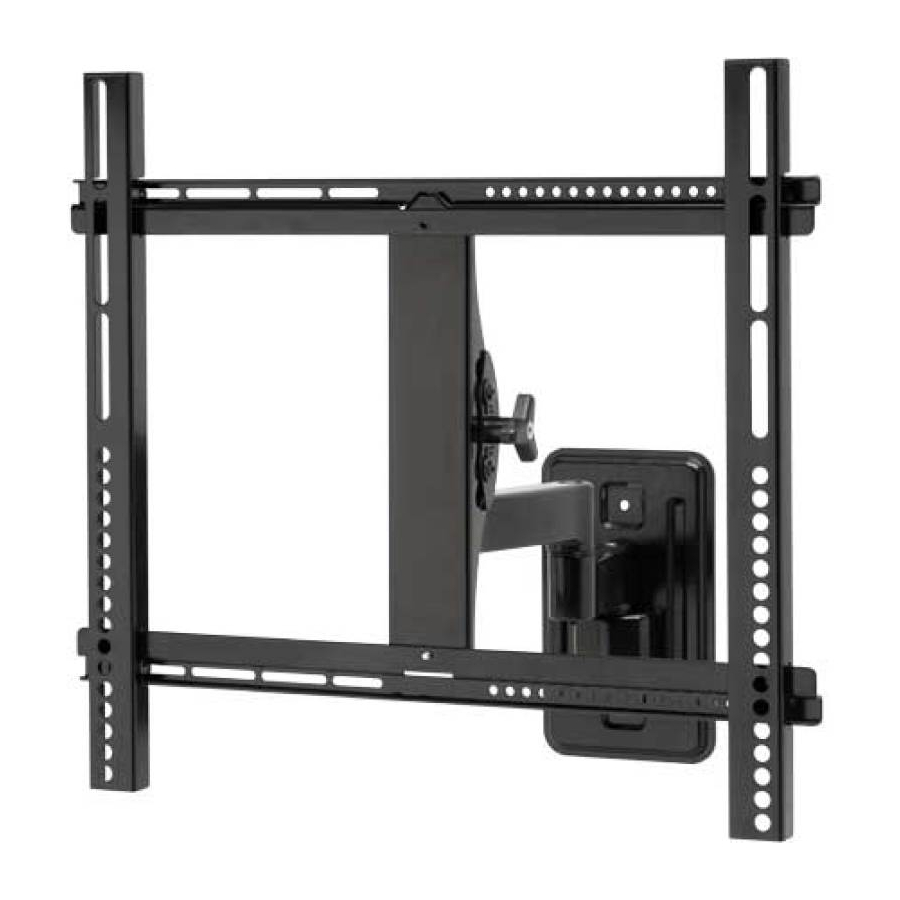

Sanus MMF12b Instruction Manual
  1. Manuals
  2. Brands
  3. Sanus Manuals
  4. TV Mount
  5. MMF12b
  6. Instruction manual

Sanus MMF12b Instruction Manual

Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
MMF12b Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the MMF12b and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sanus MMF12b

Summary of Contents for Sanus MMF12b

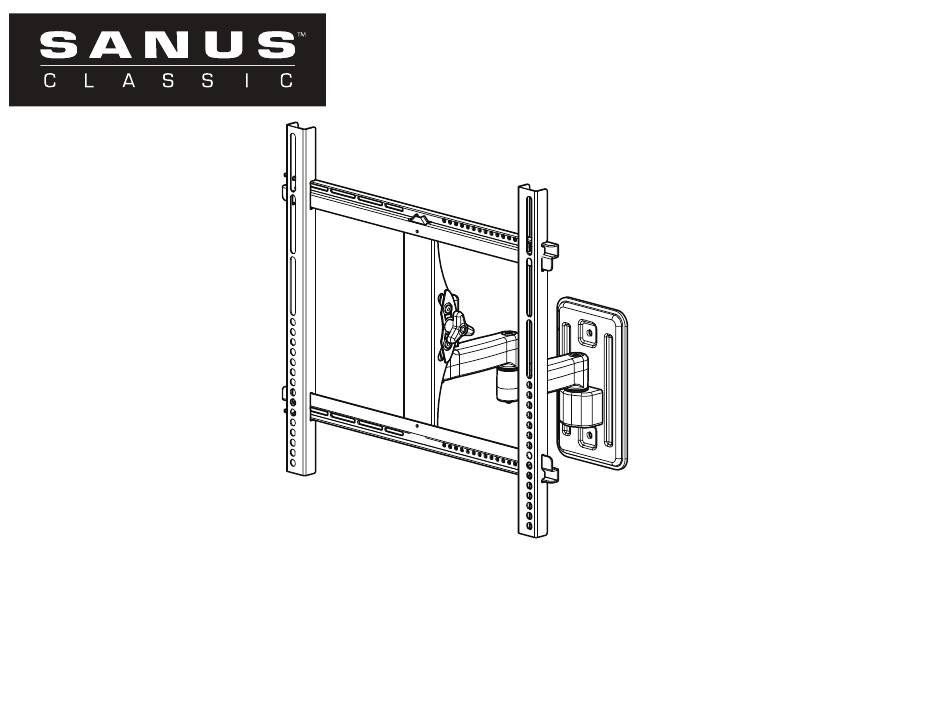

  • Page 1 MMF12b Instruction Manual...
  • Page 2 Does your TV weigh more than 60 lb (27 kg) including accessories? No — Perfect! 60 lb (27 kg) Yes — This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to fi nd a compatible mount. What is your wall made of? Drywall with Solid concrete or...
  • Page 3 Dimensions [mm] 15° 15° 3.93 to 16.54 [100 to 420] 16.54 15.77 [420.0] [400.6] 8.25 209.6 3.02 5.00 [76.8] [127.0] 12.02 [305.4] 18.70 [455.0]...

  • Page 4: Parts And Hardware

    Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts! NOTE: Not all hardware included will be used.
  • Page 5 Parts and Hardware for STEP 1 Continued Horizontal Bracket Horizontal TV Interface Brackets Interface Screws Bottom 8-32 x 9/16 in. Additional Hardware Parts and Hardware for STEP 2 Locking Screw Wall Plate/Arm Lag Bolts 8-32 x 3/8 in. 5⁄16 in. x 2¾ in. Washers Anchors 3/16 in.

  • Page 6: Step 1 Attach Brackets To Tv

    STEP 1 Attach Brackets to TV Standard configurations 1-1 Select TV Screw Diameter 1-2 Select TV Screw Length are shown. For special applications, or if you Hand thread screws into the threaded inserts If your TV has a flat back AND you want your TV closer to are uncertain about your on the back of your TV to determine which the wall, use the shorter screws (a).
  • Page 7 1-3 Attach L/R TV Interface Brackets Ensure that your brackets are centered and level on the back of the TV. Secure brackets using your screw/washer (Flat Back) or screw/washer/ spacer (Round Back / Extra Space) selection. Flat Back 06 07 Round Back / Extra Space 11 12...
  • Page 8 1-4 Attach Horizontal TV Interface Brackets Ensure horizontal brackets 16 17 are centered and screws are securely fastened.
  • Page 9 STEP 2 Attach Wall Plate to Wall Wood Stud Option CAUTION: Avoid potential personal injuries and property damage! Drywall covering the wall must not exceed 5/8 in. (16 mm) Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm) Locate your stud.
  • Page 10 Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit. IMPORTANT: Be sure to drill into the center of the stud. IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm). Install wall plate using two lag bolts and two washers .
  • Page 11 STEP 2 Attach Wall Plate to Wall Solid Concrete / Concrete Block Option CAUTION: Avoid potential personal injuries and property damage! Mount the wall plate directly onto the concrete surface Minimum solid concrete thickness: 8 in. (203 mm) Minimum concrete block size: 8 x 8 x 16 in. ( 203 x 203 x 406 mm) Position the wall plate on the wall at your desired height.
  • Page 12 Remove the wall plate and insert two anchors CAUTION: Be sure the anchors are seated flush with the concrete surface. Install wall plate using two lag bolts and two washers . Tighten the lag bolts only until they are pulled firmly against the wall plate.
  • Page 13 STEP 3 Hang TV Mount to Arm HEAVY! You will need assistance with this step. Level the TV/bracket assembly and install the washer and locking screw CAUTION: Avoid potential injuries or property damage! Be sure to install the washer and locking screw securely.

  • Page 14: Manage Cables

    Manage Cables NOTE: Be sure to leave enough slack in the cables to allow the arm of the wall plate move freely.

  • Page 15: Adjust Tension

    Adjust Tension A. Adjust arm extension and swivel tension. B. Adjust up/down tilt tension. NOTE: For clarity TV is not shown.
  • Page 16 ¿Su televisor pesa más de 27 kg (60 lb), incluidos los accesorios? No — ¡Perfecto! 27 kg Sí — Este soporte NO es compatible. Visite MountFinder.Sanus.com o llame al 1-800-359-5520 (Reino Unido: 0800-056-2853) para encontrar un (60 lb) soporte compatible.
  • Page 17 ESPAÑOL Dimensiones Ver página 3 Piezas y elementos de sujeción suministrados Ver página 4 ADVERTENCIA: Este producto contiene piezas pequeñas que, si fuesen tragadas, podrían producir asfixia. Antes de iniciar el ensamblaje, compruebe que todas las piezas estén incluidas y en buenas condiciones. Si faltan piezas o alguna está dañada, no devuelva el artículo al distribuidor;...
  • Page 18 ESPAÑOL PASO 2 Fijar la placa mural a la pared - montantes de madera Ver página 9 PRECAUCIÓN: Evite posibles lesiones personales y daños materiales. El yeso que recubre la pared no debe exceder los 16 mm (5/8 pulgada). Tamaño mínimo del montante de madera: común 51 mm x 102 mm (2 x 4 pulgadas) (nominal 38 mm x 89 mm [1½ x 3½ pulgadas]). Localice el del montante.
  • Page 19 ESPAÑOL Retire la placa mural e inserte dos tacos PRECAUCIÓN: Asegúrese de que los tacos estén asentados al mismo nivel de la superficie de hormigón. Apriete los pernos tirafondo solo hasta que las arandelas queden firmemente sujetas contra la placa de pared PRECAUCIÓN: Evite posibles lesiones personales y daños materiales.
  • Page 20 Thank you for choosing Sanus Classic! Please take a moment to let us know how we did: Call us: 1-800-359-5520 Email us: info@sanus.com Leave a review: sanus.com UK: 0800 056 2853 Find us on Facebook: SANUS Follow us on Twitter @sanussystems Milestone AV Technologies and its affi liated corporations and subsidiaries (collectively, “Milestone”), intend to make this manual accurate and complete.
