Summary of Contents for Tractel solsit 2000

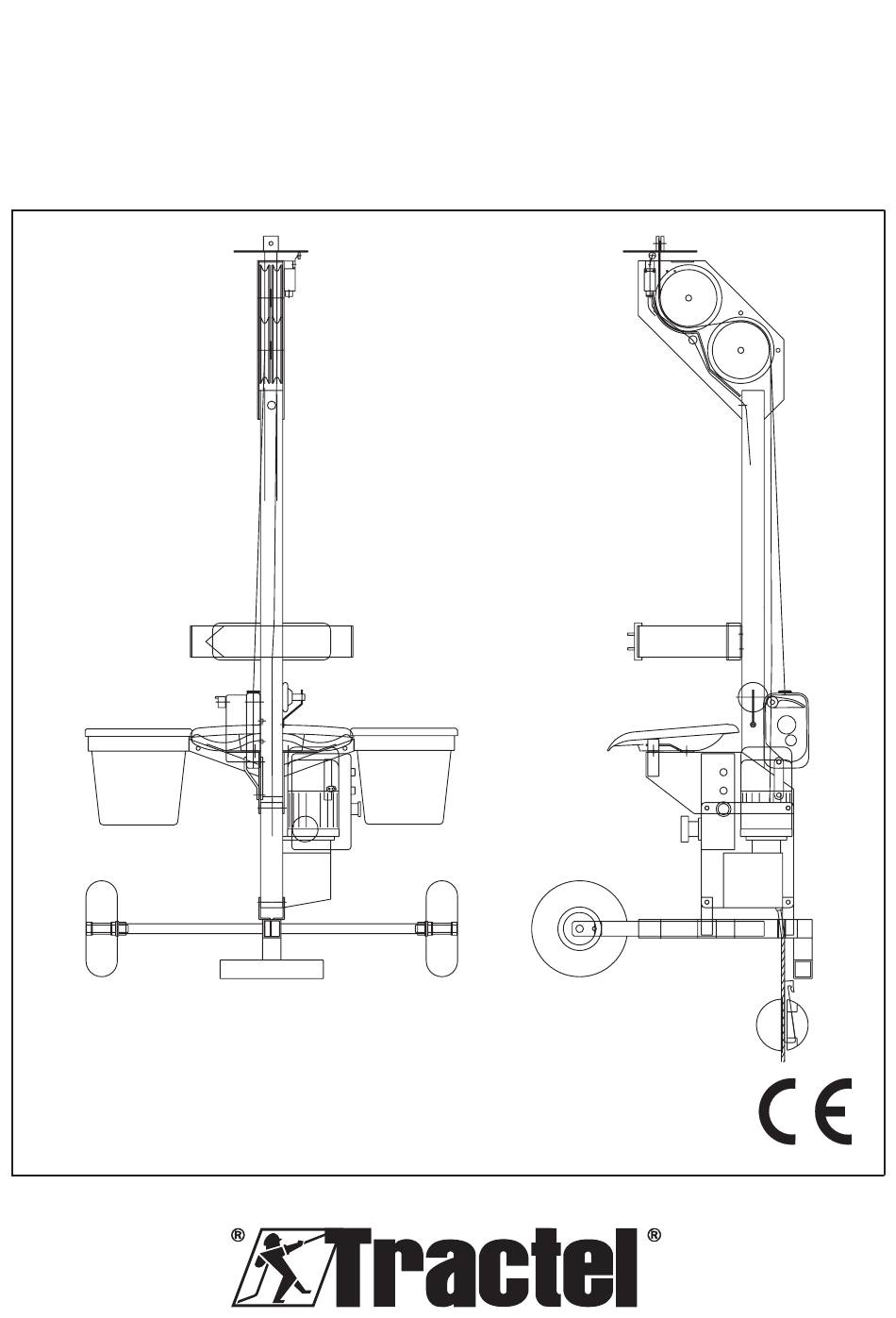

- Page 1 2000 temporary motorised seat for inspection and maintenance operating and maintenance manual The SOLSIT equipment conforms to EU Directives and is manufactured in accordance with ISO 9001 MC1586 SOLSIT_6EN 09/2017...
-
Page 2: Table Of Contents
6. MAINTENANCE OF THE TIRAK™ HOIST AND WIRE ROPES APPENDIX – “CE” DECLARATION OF CONFORMITY Manufacturer: Tractel Secalt S.A. Rue de l’Industrie • L-3895 Foetz P.O. Box 75 • L-4001 Esch-sur-Alzette Phone (+352) 43 42 42-1 Fax (+352) 43 42 42-200 e-mail: secalt@tractel.com... -
Page 3: Important Safety Information
1. IMPORTANT SAFETY INFORMATION 1.1. Safety instructions The SOLSIT, motorised seat for inspection and – Particularly check the suspension anchor points of maintenance, has been specifically designed for man- the SOLSIT. Ensure that the anchor points can accept at least 1.3 times the capacity of the hoist. riding applications. -
Page 4: Assembly Of The Solsit
2. ASSEMBLY OF THE SOLSIT 2.1. Main components 1 Stirrup 2 Base frame 3 Roller assembly 4 TIRAK™ hoist, X-300P 5 Bucket 6 Frame support for bucket 7 BLOCSTOP™ BSO 500 secondary safety device 8 Upper limit switch 9 Safety belt 10 Lifting wire rope 11 Safety wire rope 12 Counterweight for safety wire rope... -
Page 5: Operation
3. OPERATION 3.1. General Rigging and maintenance of the SOLSIT must be carried out with due regard for the current safety regulations and in accordance with the instructions in this operating and maintenance manual. Check the correct operation of the TIRAK™ hoist (see TIRAK™ installation manual) and the BLOCSTOP™ safety device (see 3.6.). -
Page 6: Fitting The Lifting And Safety Wire Ropes
3.5. Fitting the lifting and safety wire ropes Fig. 4 Only TIRAK™ wire rope in perfect condition can ensure the correct operation of the SOLSIT. Ensure that the diameter corresponds to that indicated on the appropriate labels on the TIRAK™ hoist and the BLOCSTOP™ BSO. Before fitting the wire ropes ensure that upper limit stop plate the suspension point is appropriate to... -
Page 7: Checks Before Starting Work
3.6. Checks before starting work Record all your checks in the equipment log. 3.6.1. Check of suspension wire ropes • Check that the suspension wire ropes are properly secured. • Check that the TIRAK™ hoist and the BLOCSTOP™ BSO are properly secured. 3.6.2. - Page 8 Check before starting work (Fig. 7.2) Fig. 7.2 The SOLSIT is set on the ground. Risk of injury! Wear safety gloves! 1. Press (7.2). CLOSED The BLOCSTOP™ should close; the lever (7.1) should return to the CLOSED position. 2. Try to pull upward on the safety wire rope. Risk of fall if malfunction! If the wire rope can be pulled upward:...
-
Page 9: Manual Descent (Fig. 8)
3.7. Manual descent (Fig. 8) Fig. 8 In case of a power failure, it is possible to lower the SOLSIT through the centrifugal brake of the TIRAK™ hoist. Fit the brake lever (1) on the brake yoke by inserting it through the slot (2) on the cover. 2. -
Page 10: Upper Limit Safety Device (Fig. 11)
4.3. Upper limit safety device (Fig. 11) Fig. 11 When the upper limit switch, fixed to the top of the SOLSIT mast, hits the stop plate fitted to the safety wire rope, the SOLSIT stops automatically, and cuts off all the electrical controls of the SOLSIT. -
Page 11: Appendix - "Ce" Declaration Of Conformity
Temporary suspended platform "TSP" Model "SOLSIT 2000" (no serial number) ® The manufacturer: Tractel Secalt S.A. (a TRACTEL Group company) 3, rue du Fort Dumoulin P.O. box 1113, L-1011 Luxembourg Tel. (352) 43 42 42-1 * Fax (352) 43 42 42-200 declares that the machine is in accordance with the model having received the CE type approval No.
