Thank you for buying our products and for the confidence you have placed in our company.

1] PRODUCT INTRODUCTION

The DIGIP Call range of door stations allows users to receive calls from visitors, see and
talk to them, and remotely open the door.
Calls are answered from a monitor mounted on a wall (or desktop mount), a smartphone,
or a computer.
To configure the calls from a smartphone, please download the app DIGIP Call (available
for both iOS and Android).
Once downloaded, you will need to create an account on our cloud server.
The audio and video feed between the door station and the user is transmitted via:
• Internet IP network
• Intranet IP network
The IPV door station is easy to install, with minimal cabling requirements. The door station
connects to:
• A 12V power supply (recommended CDVI product: ADC335)
• IP network (CAT5e or Wifi)
• A strike or maglock (2 available relays)
Input voltage: 12Vdc (power supply ADC335 optional) or PoE
Consumption: 400mA
2] REMINDERS AND RECOMMENDATIONS
In standby mode, the electric strike is not powered and the door is locked. When the relay
is activated with the BP through the "open the door" function on the monitor/smartphone,
the strike is then powered and the door opens (fail safe locking).
The IPV1 door station must connect to the IP network with an RJ45 CAT5e cable
(Ethernet).
The door station has 2 relays NO/NC, and 2 exit push buttons (RTE).
You will need a computer just for the initial configuration and set-up.
Don't forget to select secret questions in My Account, as they will allow users to
recover their password if necessary.

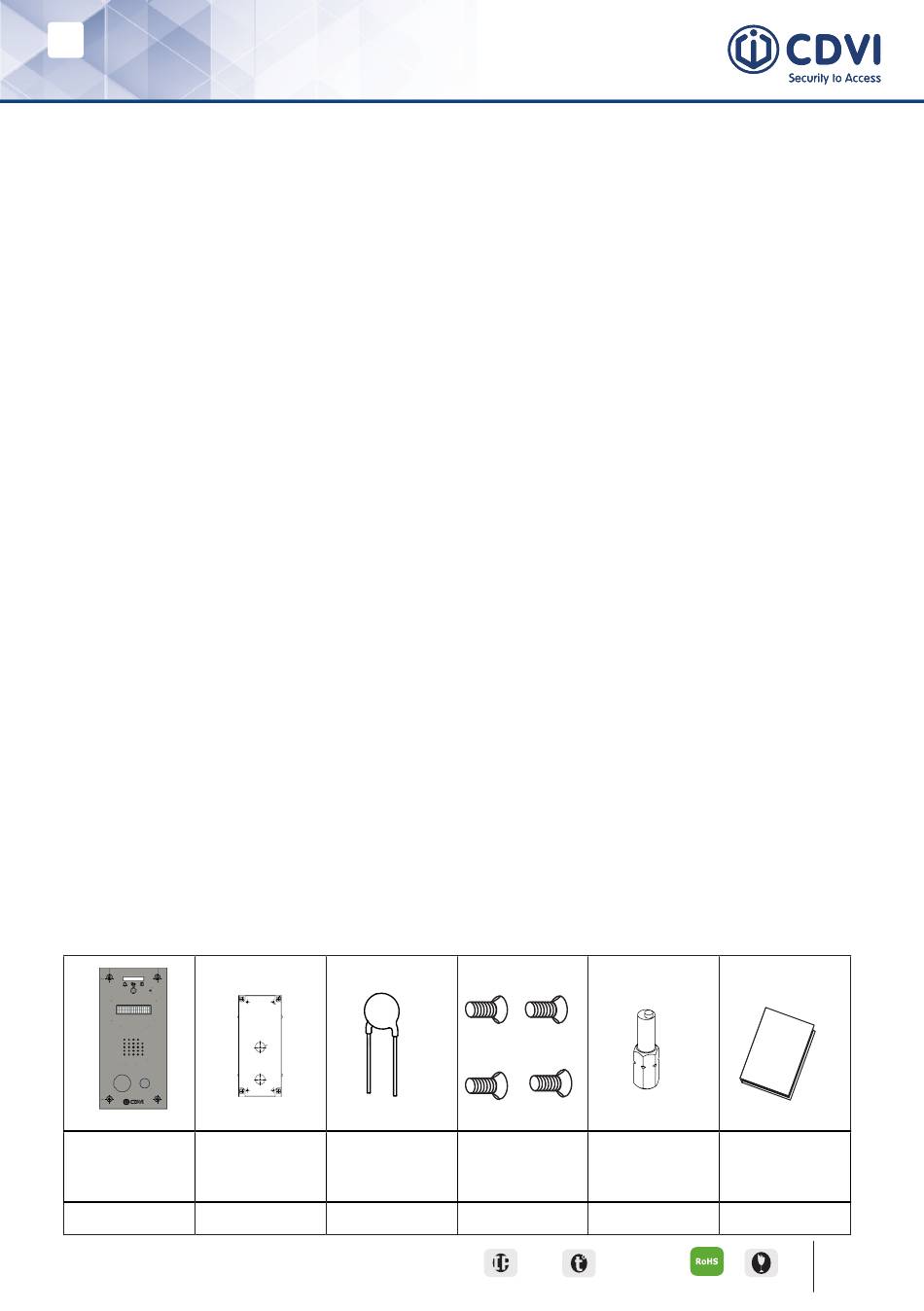

3] MOUNTING KIT

120
85
120
85
Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son autorisation.
This document is the exclusive property of CDVI and it may not be disclosed to others without permission.
Door Door
Platine IPV1
Station Station
Material : ...
General tolerance: 0.2 Surface condition: Ra 3,2
3
DWG: W.Sainvil Vol. (mm ) : Weight (g) :
1 1
62,5
60,5
20 60 20
100
SCALE 1:5
Date 03/04/2019
Backbox Backbox Varistor Varistor
A3H
31, av du Gal Leclerc
93691 PANTIN CEDEX
F R A N C E
Tel : 33(0)148910102
Fax : 33(0)148912121
www.cdvi.com
1 1
IP Video Door Station
CDVI screws CDVI screws
M5X20 M5X20
1 1 4 4
IP64
IPV
4,90
Installation Installation
CDVI adaptor CDVI adaptor
manual manual
1 1
-20°C to +70°C
1/4" (6,35mm)
1 1
15
IK9
