USB 3.0 D
ISPLAY

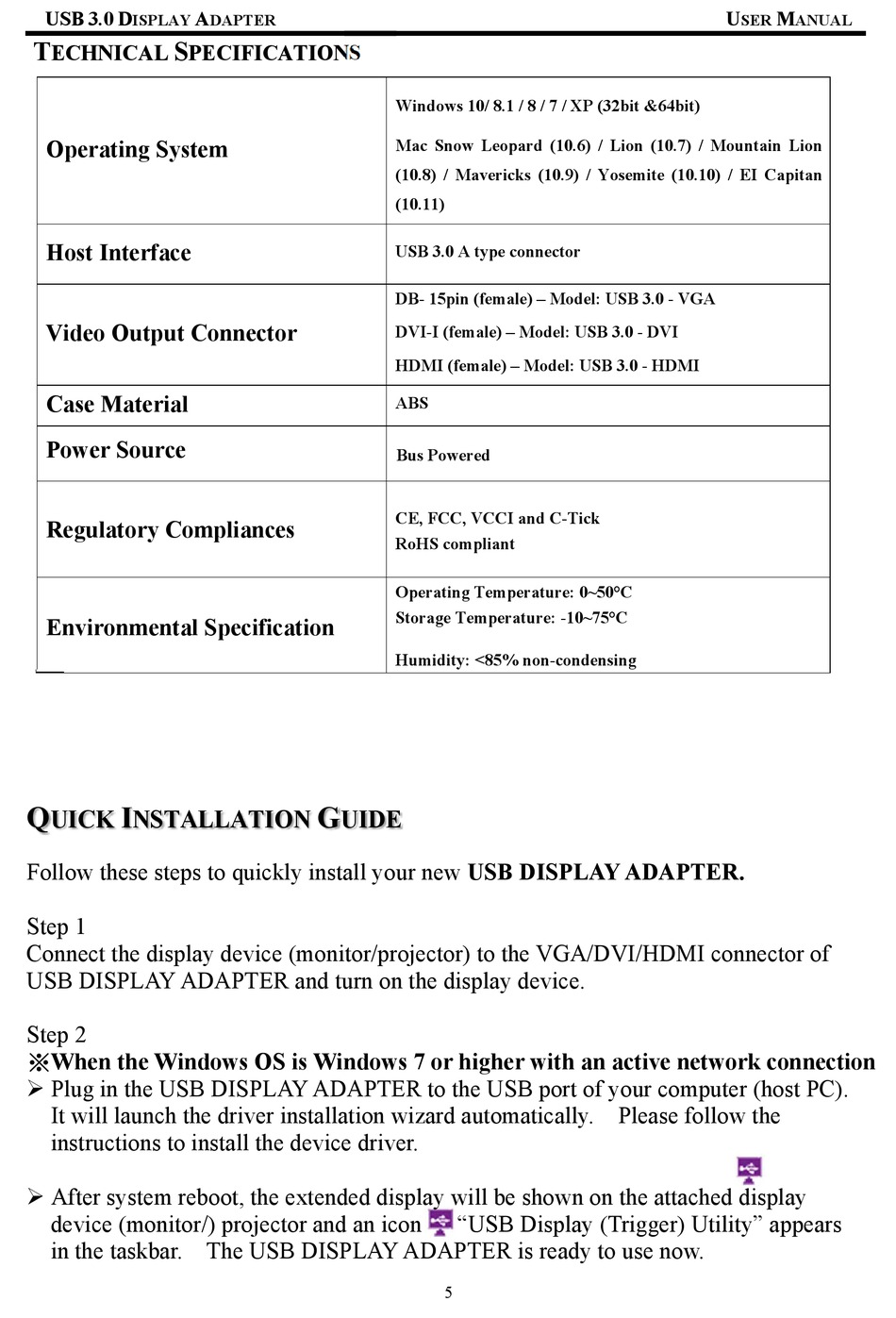

T S
ECHNICAL PECIFICATIONS
Operating System
Host Interface
Video Output Connector
Case Material
Power Source
Regulatory Compliances
Environmental Specification
Q I
UICK NSTALLATION
Follow these steps to quickly install your new USB DISPLAY ADAPTER.
Step 1
Connect the display device (monitor/projector) to the VGA/DVI/HDMI connector of
USB DISPLAY ADAPTER and turn on the display device.
Step 2
※When the Windows OS is Windows 7 or higher with an active network connection
 Plug in the USB DISPLAY ADAPTER to the USB port of your computer (host PC).
It will launch the driver installation wizard automatically. Please follow the
instructions to install the device driver.
 After system reboot, the extended display will be shown on the attached display
device (monitor/) projector and an icon
in the taskbar. The USB DISPLAY ADAPTER is ready to use now.
A
DAPTER
G
UIDE
Windows 10/ 8.1 / 8 / 7 / XP (32bit &64bit)
Mac Snow Leopard (10.6) / Lion (10.7) / Mountain Lion
(10.8) / Mavericks (10.9) / Yosemite (10.10) / EI Capitan
(10.11)
USB 3.0 A type connector
DB- 15pin (female) – Model: USB 3.0 - VGA
DVI-I (female) – Model: USB 3.0 - DVI
HDMI (female) – Model: USB 3.0 - HDMI
ABS
Bus Powered
CE, FCC, VCCI and C-Tick
RoHS compliant
Operating Temperature: 0~50°C
Storage Temperature: -10~75°C
Humidity: <85% non-condensing
"USB Display (Trigger) Utility" appears
5
U M
SER ANUAL
