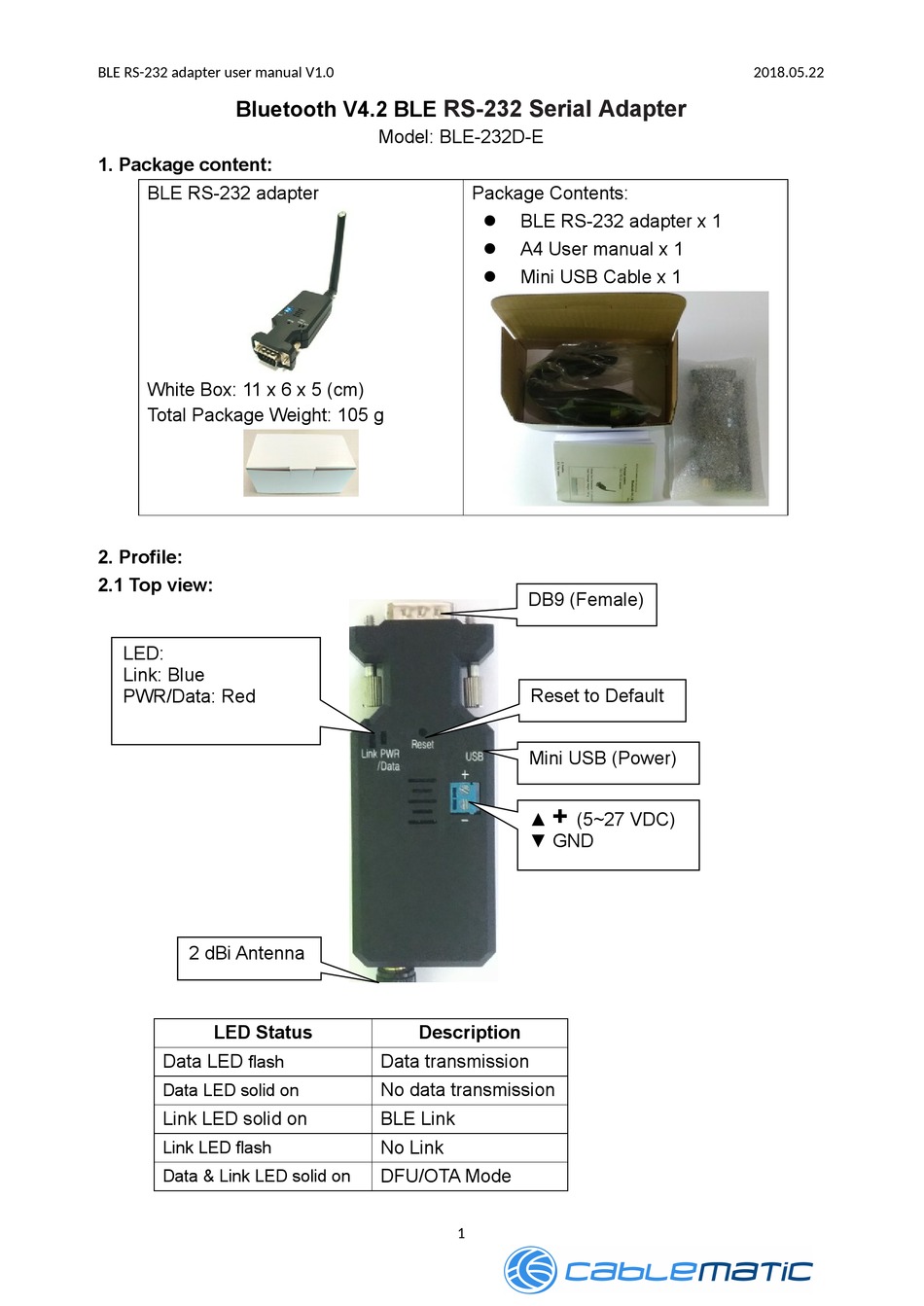

BLE RS-232 adapter user manual V1.0
Bluetooth V4.2 BLE
1. Package content:
BLE RS-232 adapter
White Box: 11 x 6 x 5 (cm)
Total Package Weight: 105 g
2. Profile:
2.1 Top view:
LED:
Link: Blue
PWR/Data: Red
2 dBi Antenna
LED Status
Data LED
flash
Data LED solid on
Link LED solid on
Link LED flash
Data & Link LED solid on
RS-232 Serial Adapter
Model: BLE-232D-E
Package Contents:
BLE RS-232 adapter x 1
A4 User manual x 1
Mini USB Cable x 1
DB9 (Female)
Reset to Default
Mini USB (Power)
+
▲
▼ GND
Description
Data transmission
No data transmission
BLE Link
No Link
DFU/OTA Mode
1
(5~27 VDC)
2018.05.22
