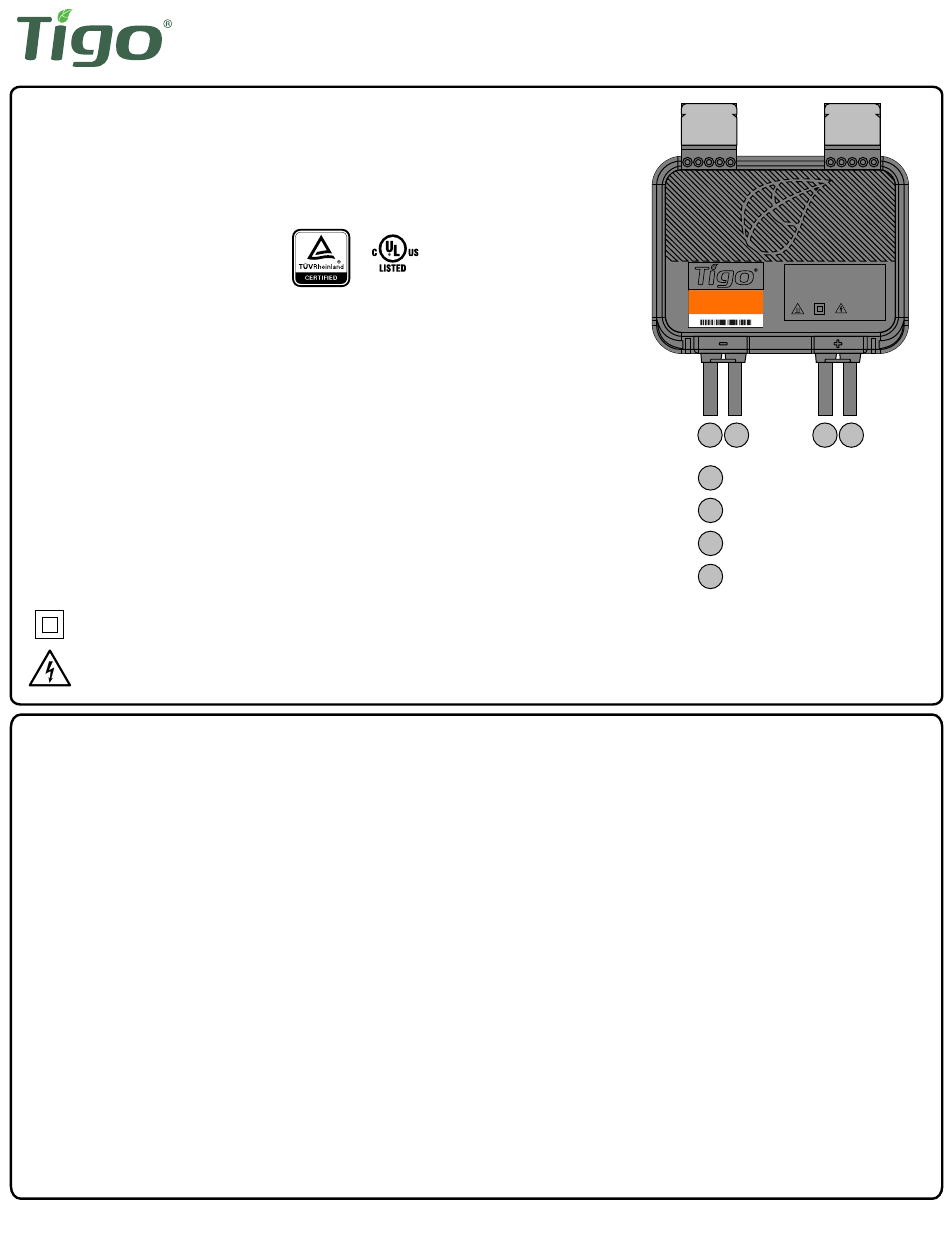

Tigo TS4-A-F Installation & Quick Start Manual

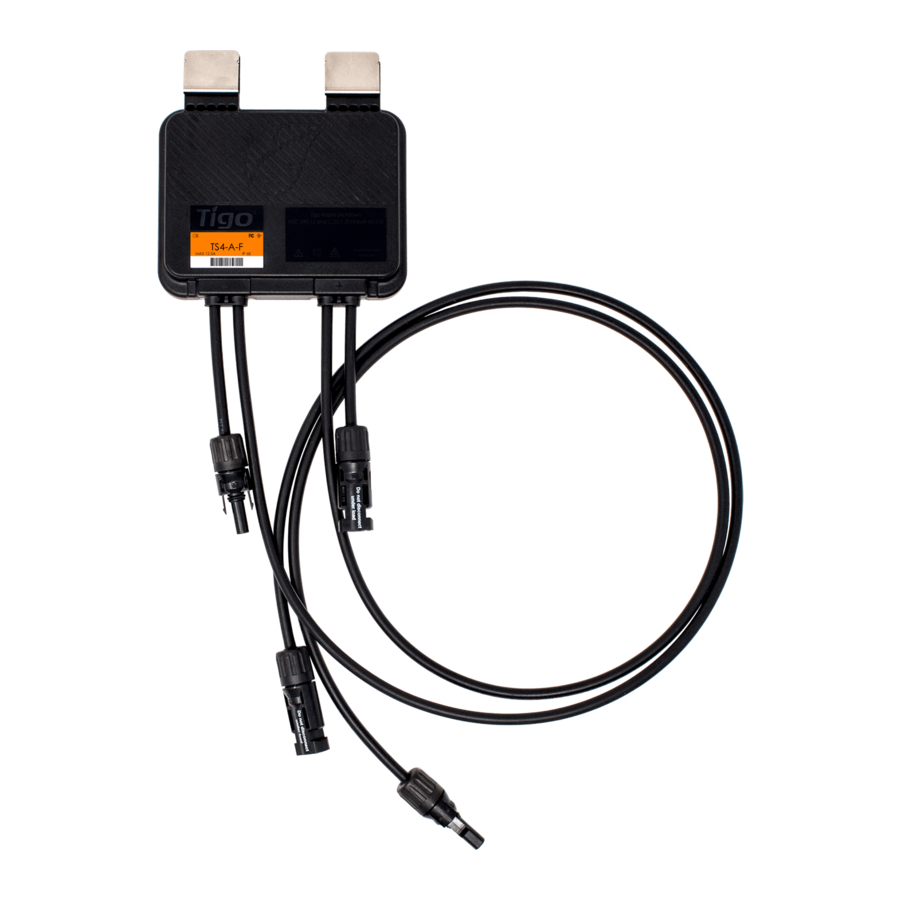

TS4-A-F
The TS4-A-F is the advanced add-on solution that brings rapid
shutdown functionality to standard PV modules when paired
with the Tigo RSS Transmitter.
Maximum power: 700W
Maximum voltage: 90V
Maximum current: 15A
Maximum string voltage 1000V/1500V
depending on connectors.
Use ANSI/NFPA 70 wiring methods.
Modules must not be installed in readily accessible locations. (Canada only)
Connectors from different manufacturers cannot be mated with each other.
Photovoltaic Rapid Shutdown Equipment NEC 690.12 and C22.1-2015 Rule 64-218
The RSS Transmitter is an external device that provides a keep-alive signal to the
PVRSE device via communications.
The Transmitter shall be powered from the same power as the RSI
(Rapid Shutdown Initiator) circuit and tied to the shutdown of the inverter.
Class II double insulation
High Voltage
DANGER

IMPORTANT NOTICE

Electricity will be supplied to the Tigo TS4-A output cables immediately when connected to a PV module
exposed to sunlight. Use care when handling.
注意事项
当连接的组件暴露在阳光下时电⼒将会从Tigo TS4-A输出端输出。请⼩⼼处理。
ATTENTION!
Une fois connecté au panneau photovoltaïque exposé au soleil, les boitiers Tigo TS4-A laisseront passer le
courant. Soyez vigilant.
WICHTIGER HINWEIS
Bei Verbindung der Tigo TS4-A mit einem aktiven PV-modul steht der Ausgang unmittelbar unter Spannung.
Bitte Vorsicht im Umgang.
AVVISO IMPORTANTE
Prestare la massima attenzione: i cavi di uscita dei Tigo TS4-A sono già alimentati con energia elettrica quando
vengono collegati a un modulo fotovoltaico esposto alla luce del sole.
안전을 위 한 주의사항
햇빛에 노출된 태양전지 모듈에 연결하면 Tigo TS4-A 출력 케이블에즉 시 전기가 흐르게 됩니다. 취급시 주의하십시요.
重要事項
⽇射下の太陽光モジュールを接続すると同時に、タイゴTS4-Aの出⼒ ケーブルにも電気が流れますので、取扱いには⼗分
ご注意ください。
¡PRECAUCION!
Al momento de conectar los cabels de salida los Tigo TS4-A a un módulo fotovoltaico expuesto al sol, se iniciarà
la corriente eléctrica. Tenga cuidado en su manejo.
002-00074-00
DC
E469960
DC
If string is disconnected under load, wait 1 minute before reconnecting TS4-A-F.
Photovoltaic Rapid Shutdown System Equipment, QIJW
Output voltage is 0.6V when RSS Transmitter signal is not present.
Verify that output voltage is 0.6V before reconnecting.
Tigo Rapid Shutdown
NEC 690.12-2017 and C22.1-2015 Rule 64.218
TS4-A-F
DO NOT DISCONNECT
UNDER LOAD
DANGER
1 2 3 4
PV Module -
1
String -
2
String +
3
PV Module +
4
06/21/2021 Rev. A3
