Project Source F1A1F506CP Manual page 9

ASSEMBLY INSTRUCTIONS

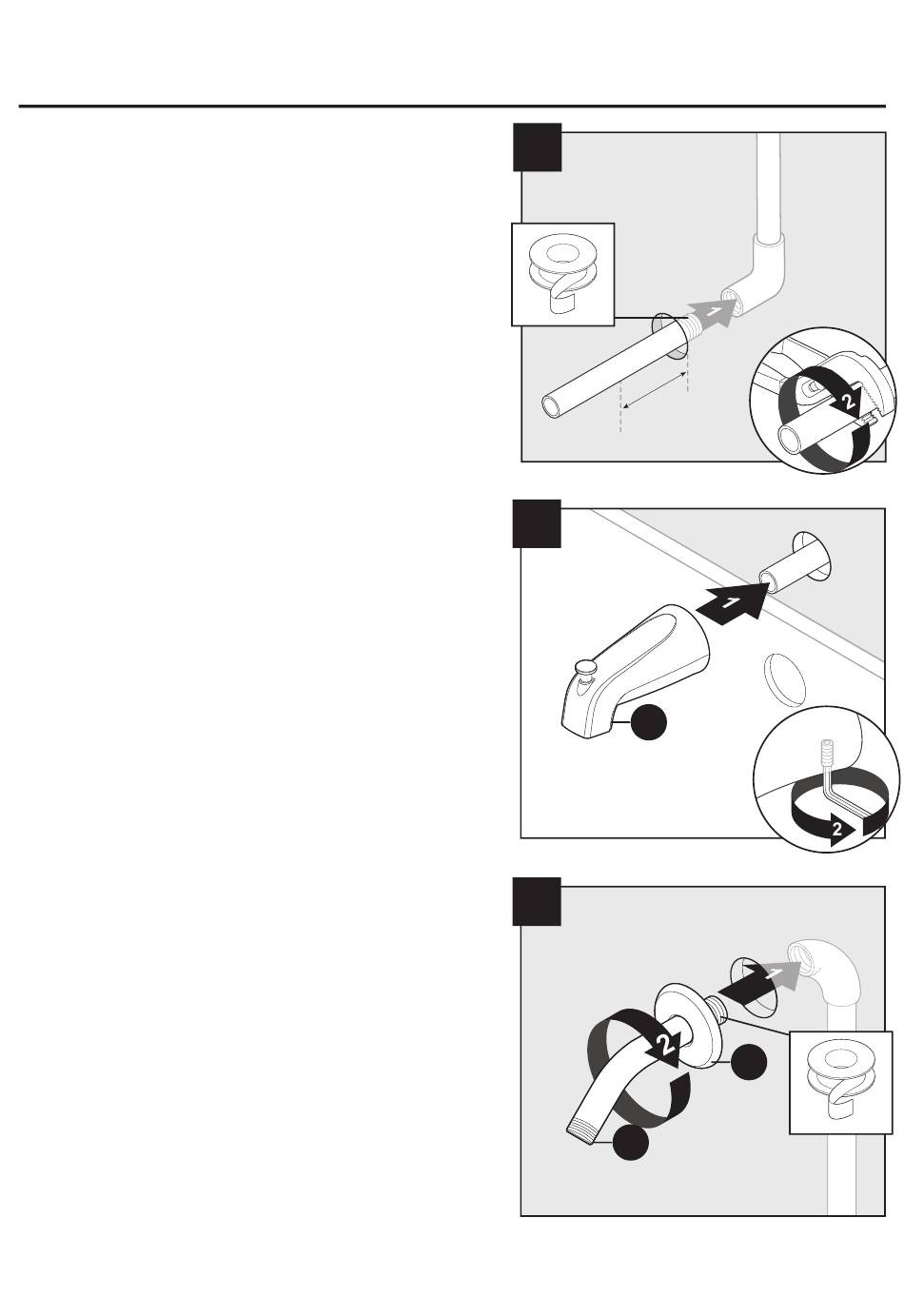

6. Install stub-out pipe (not included) for spout.
Use proper length stub-out pipe so pipe
threads will extend 1-1/2 to 2 inches beyond
finished wall.
7. Install tub spout (I). Tighten set screw using
hex wrench.
8. Install shower arm (B) and shower arm flange
(C) to vertical shower pipe elbow.
6
6
7
7
8
8
9
i n
~ 2
/ 2
1 1
I
C
B
