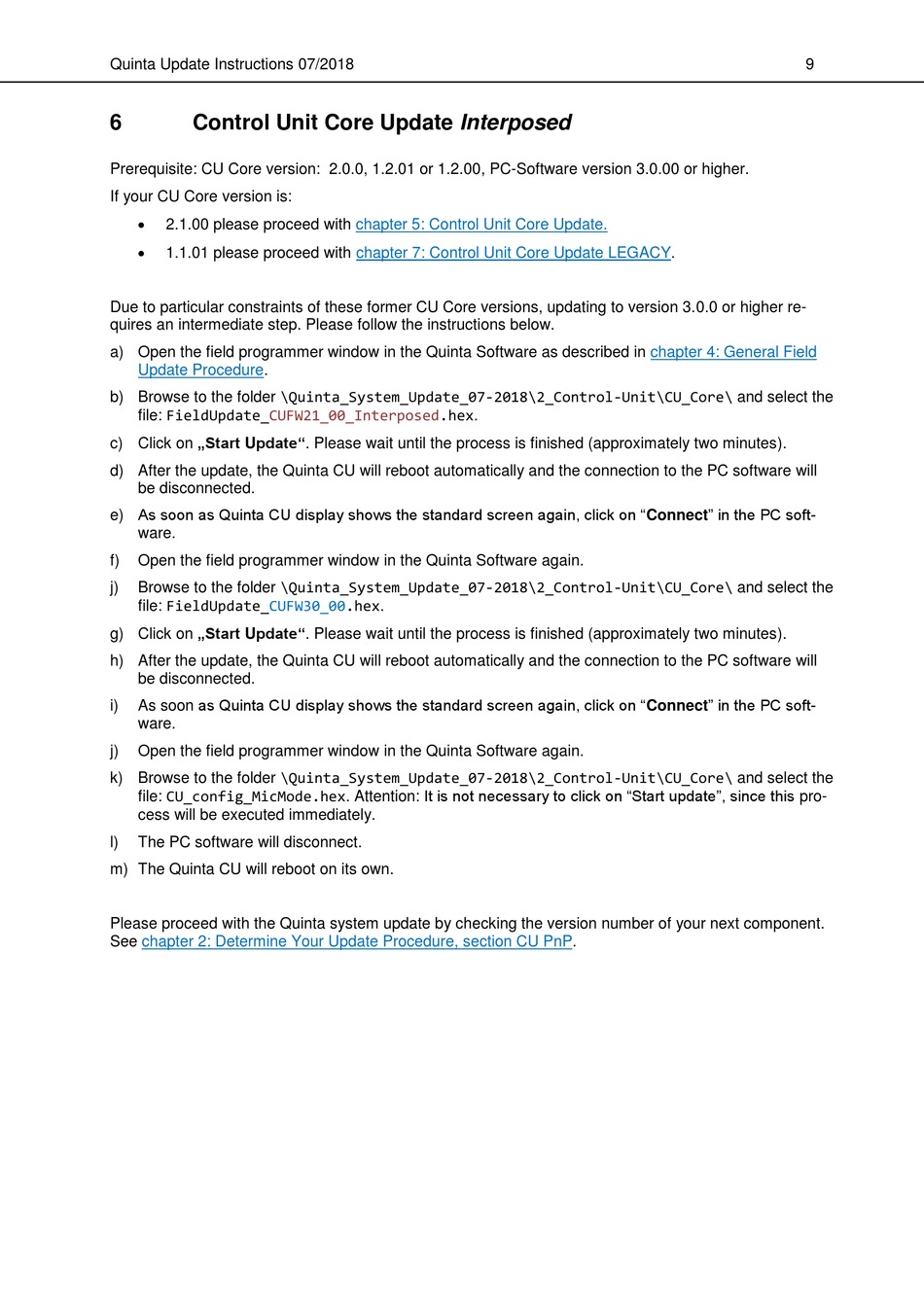

Beyerdynamic Quinta Update Instructions page 9

Quinta Update Instructions 07/2018
6 Control Unit Core Update Interposed
Prerequisite: CU Core version: 2.0.0, 1.2.01 or 1.2.00, PC-Software version 3.0.00 or higher.
If your CU Core version is:

2.1.00 please proceed with

1.1.01 please proceed with
Due to particular constraints of these former CU Core versions, updating to version 3.0.0 or higher re-
quires an intermediate step. Please follow the instructions below.
a) Open the field programmer window in the Quinta Software as described in
Update Procedure.
b) Browse to the folder \Quinta_System_Update_07-2018\2_Control-Unit\CU_Core\ and select the
file: FieldUpdate_CUFW21_00_Interposed.hex.
c) Click on „Start Update". Please wait until the process is finished (approximately two minutes).
d) After the update, the Quinta CU will reboot automatically and the connection to the PC software will
be disconnected.
e) As soon as Quinta CU display shows the standard screen again, click on "Connect" in the PC soft-
ware.
f) Open the field programmer window in the Quinta Software again.
Browse to the folder \Quinta_System_Update_07-2018\2_Control-Unit\CU_Core\ and select the
j)
file: FieldUpdate_CUFW30_00.hex.
g) Click on „Start Update". Please wait until the process is finished (approximately two minutes).
h) After the update, the Quinta CU will reboot automatically and the connection to the PC software will
be disconnected.
As soon as Quinta CU display shows the standard screen again, click on "Connect" in the PC soft-
i)
ware.
j) Open the field programmer window in the Quinta Software again.
k) Browse to the folder \Quinta_System_Update_07-2018\2_Control-Unit\CU_Core\ and select the
file: CU_config_MicMode.hex. Attention: It is not necessary to click on "Start update", since this pro-
cess will be executed immediately.
l) The PC software will disconnect.
m) The Quinta CU will reboot on its own.
Please proceed with the Quinta system update by checking the version number of your next component.
See chapter 2: Determine Your Update Procedure, section CU
chapter 5: Control Unit Core Update.
chapter 7: Control Unit Core Update LEGACY.
chapter 4: General Field
PnP.
9
