1-6 English

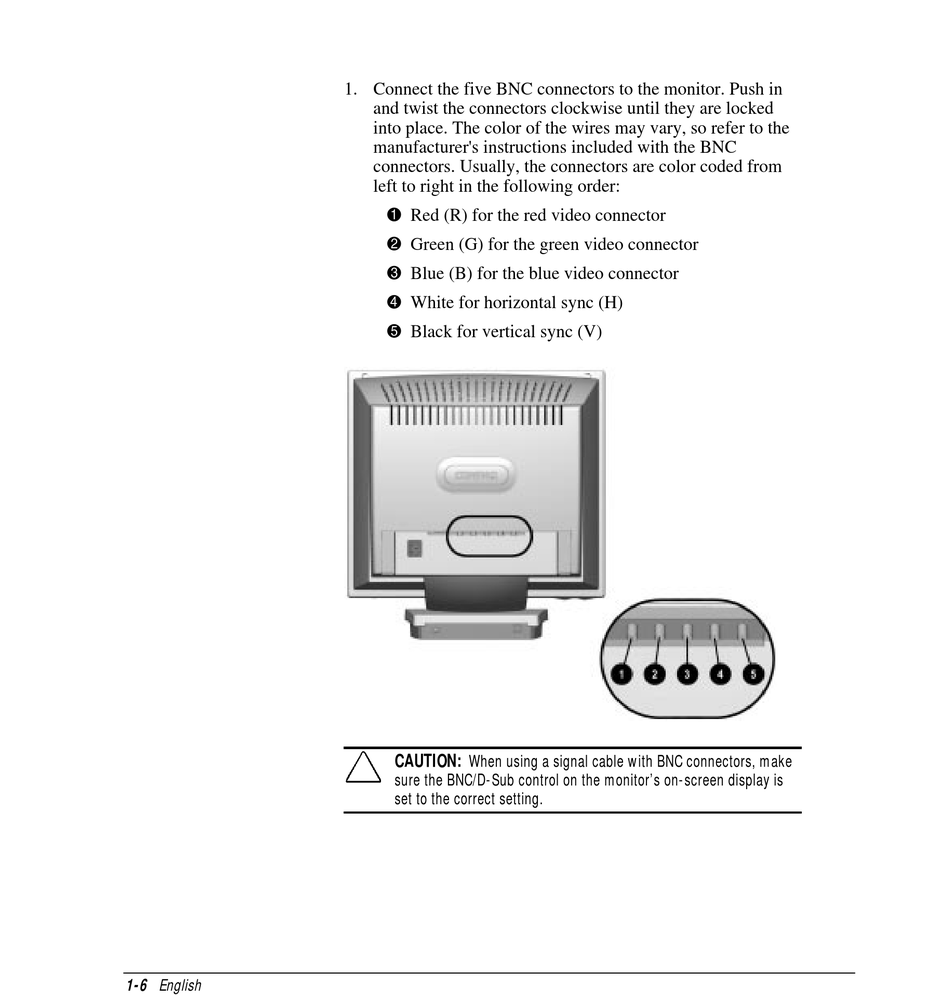

1. Connect the five BNC connectors to the monitor. Push in
and twist the connectors clockwise until they are locked
into place. The color of the wires may vary, so refer to the
manufacturer's instructions included with the BNC
connectors. Usually, the connectors are color coded from
left to right in the following order:
1 Red (R) for the red video connector
2 Green (G) for the green video connector
3 Blue (B) for the blue video connector
4 White for horizontal sync (H)
5 Black for vertical sync (V)
CAUTION:
When using a signal cable with BNC connectors, make
sure the BNC/D-Sub control on the monitor's on-screen display is
set to the correct setting.
