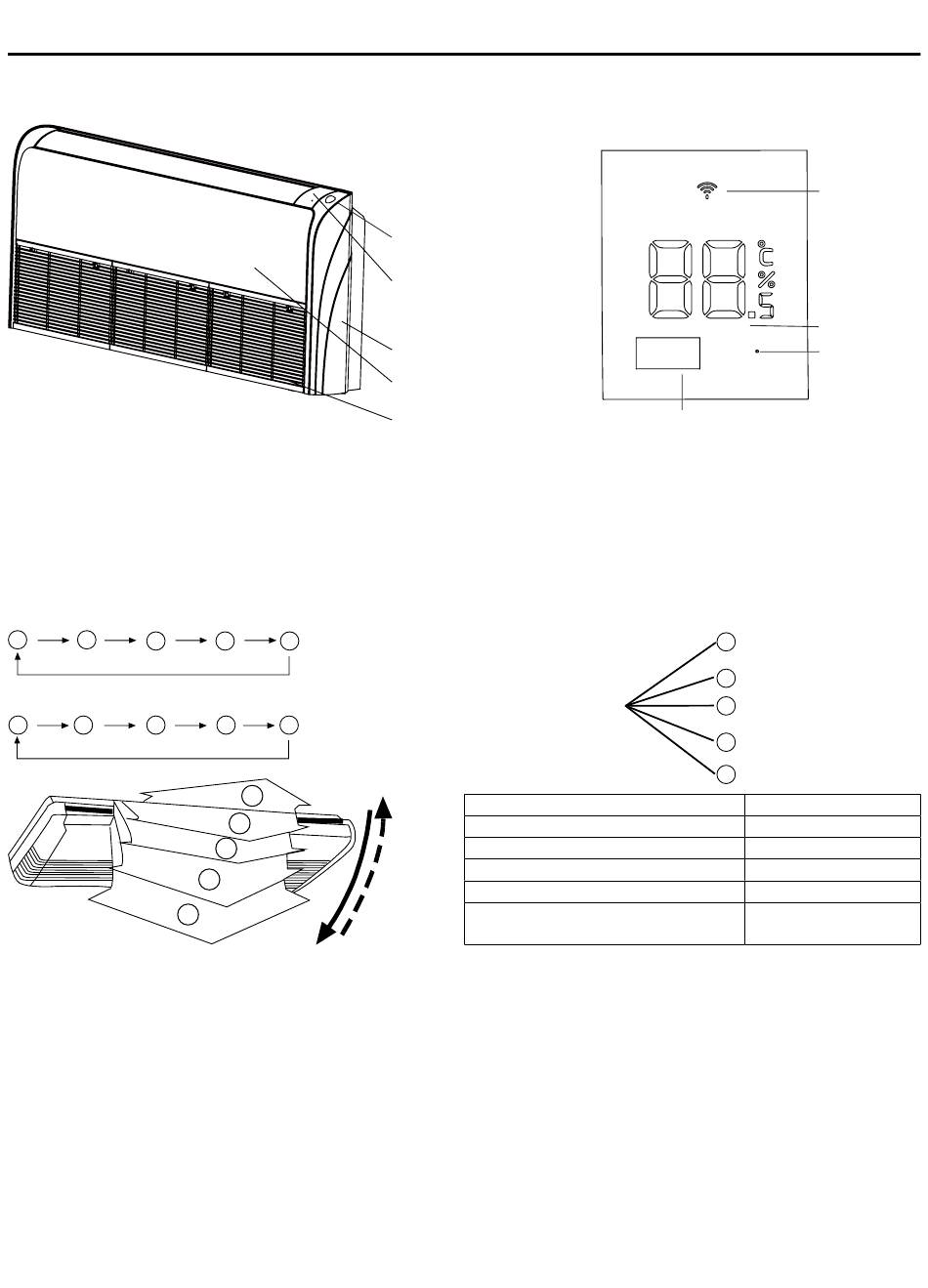

Parts and Functions

Indoor unit
Note:
For the wired control type unit, the unit state should be checked by the wired controller, instead of the
remote receiver. And if you set the TIMER function, the TIMER LED on the remote receiver will not be on.
Wind Direction Regulation
Auto Airflow
Press Up/Down Airflow button, outlet guide plate changes posture as follows:
COOL/DRY/FAN:
1
2
3
HEAT:
5
4
3
5
Fixing Outlet Direction
Decide upon a proper angle when guide plates move in auto airflow mode and press Wind Direction button to fix wind
direction.
Upper/lower flaps commanding airflow directions shall be positioned as follow when fixing wind directions:
Upward in cooling and drying mode
Downward in heating mode
• Make sure that outlet plates or flaps are adjusted only and always through the Wind Direction button on remote control;
manual adjusting may cause malfunction.
• Outlet guide plates constantly positioned downwards are prohibited when cooling and drying modes are activated as
vapor close to outlet grille may condense and resultant water may drip down from the unit.
• Please pay close attention to temperature regulation values when operating the unit in places where infants, children,
old people and patients are to be found.
4
5
2
1
1
2
3
4
Human Sensor
Operation Control Panel
Cover Plate
Front Panel
Inlet Grill (Filter inside)
Upper/Lower Guide Plates Swing Range:
Air Guide Plate Positioning
1
Operating Control Panel
Remote Receiver
1
2
3
4
5
Wi-Fi
Indicator
Lamp
Display
Indicator
Lamp
Emergency
Switch
Swing Range
① → ③
① → ③
② → ④
③ → ⑤
① → ⑤
(All Covered)
