Summary of Contents for Furniture of America CM7884F/Q

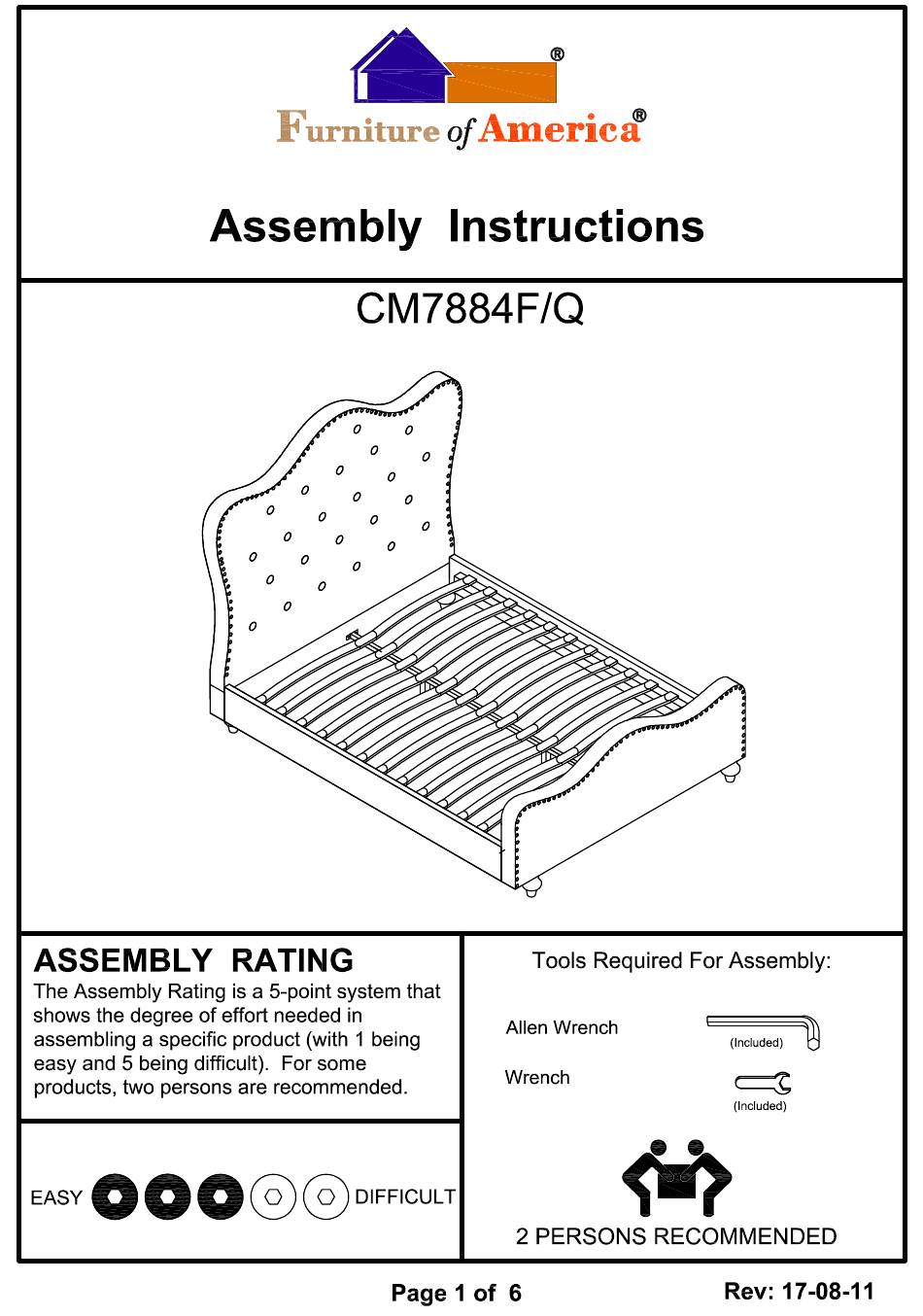

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 4 Attach HB/FB legs (#4) to the bottom holes of the headboard (#1) and footboard (#2). Prepare 8 bolts assembly by inserting lock washer (#D), then flat washer (#C) onto bolts (#B). Attach bolts (#B) half way into the holes of headboard (#1) and footboard (#2). Hook and rest side rails (#3) to bolts (#B), then tighten bolts (#B).
- Page 5 2) Prepare 8 bolts assembly by inserting lock washer (#D), then flat washer (#C) onto bolts (#B). Align center support rails (#6) to the holes of the headboard (#1) and footboard (#2). Secure by using bolts (#B). 1) Prepare 8 bolts assembly by inserting lock washer (#D), then flat washer (#C) onto bolts (#B). Align support legs (#7) to the holes of the center support rails (#6).
- Page 6 ASSEMBLY COMPLETED...
- Page 7 For more information contact our team: service.ec@foagroup.com...
- Page 10 Attach HB/FB legs (#4) to the bottom holes of the headboard (#1) and footboard (#2). Prepare 8 bolts assembly by inserting lock washer (#D), then flat washer (#C) onto bolts (#B). Attach bolts (#B) half way into the holes of headboard (#1) and footboard (#2).
- Page 11 2) Prepare 8 bolts assembly by inserting lock washer (#D), then flat washer (#C) onto bolts (#B). Align center support rails (#6) to the holes of the headboard (#1) and footboard (#2). Secure by using bolts (#B). 1) Prepare 8 bolts assembly by inserting lock washer (#D), then flat washer (#C) onto bolts (#B). Align support legs (#7) to the holes of the center support rails (#6).
- Page 12 ASSEMBLY COMPLETED...
- Page 13 For more information contact our team: service.ec@foagroup.com...
- Page 16 Attach HB/FB legs (#4) to the bottom holes of the headboard (#1) and footboard (#2). Prepare 8 bolts assembly by inserting lock washer (#D), then flat washer (#C) onto bolts (#B). Attach bolts (#B) half way into the holes of headboard (#1) and footboard (#2).
- Page 17 Attach end caps (#E) to each ends of the slats (#5). Insert slats (#5) to the holes of the side rails. ASSEMBLY COMPLETED...
