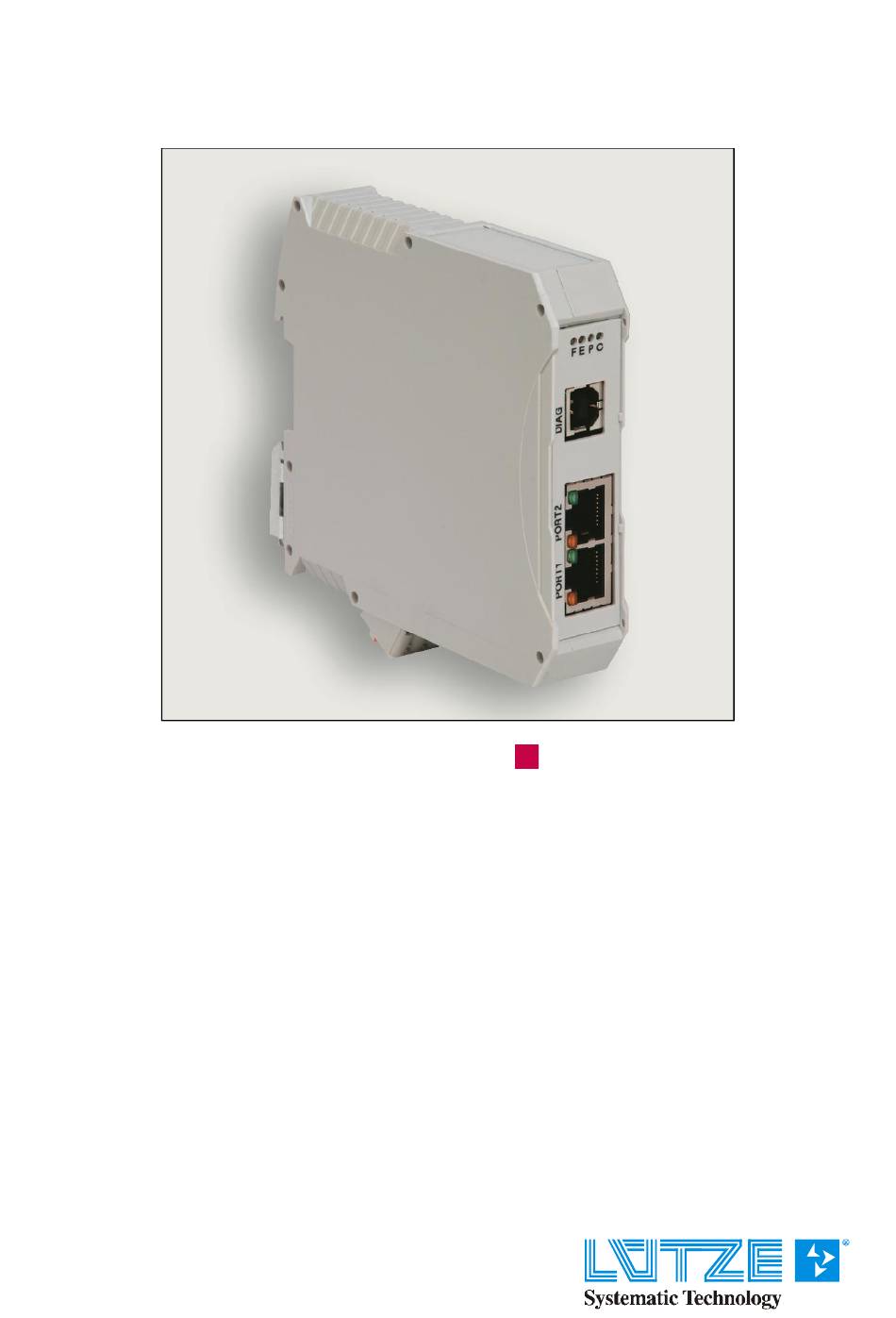

- Page 1 Automation Solutions User Manual Profinet-IO-Gateway 716457 Description of Profinet-IO-Gateway in connection with LOCC-Box-Net 716410. Version 1.00...
- Page 2 User Manual Profinet-IO – Gateway The user manual is part of the product and contains important information about the handling and the safety. To avoid hazardous situations read the manual before installing the product and using it. Lütze reserves the right to change its products in the interest of technical progress. These alterations need not to be documented in every case.
-
Page 3: Table Of Contents
User Manual Profinet-IO - Gateway Content General Information ..............5 1.1 Symbol Description ....................5 1.2 Copyright ......................5 1.3 Disclaim of Liability ....................5 1.4 Safety ........................5 1.4.1 Content of Manual ......................5 1.4.2 Intended Use ......................... 6 1.4.3 Operating Employee ...................... - Page 4 User Manual Profinet-IO – Gateway 2.4.11.9 Serial Number (2201 ) ..................20 2.4.11.10 LOCC-Box counter “Operating voltage ON“ (2202 ) ......... 20 2.4.11.11 LOCC-Box Counter “Operating hours (h)” (2203 ) ..........20 2.4.11.12 LOCC-Box counter “Operating hours ON (h)“ (2204 ) ........
-
Page 5: General Information
User Manual Profinet-IO - Gateway 1 General Information Symbol Description The manual contains several safety messages. Each safety message contains a defined signal word and a color. The color and the word are referring to an alert level. There are 4 levels. The safety messages point out hazardous situations and give information to avoid those. -
Page 6: Intended Use
User Manual Profinet-IO – Gateway 1.4.2 Intended Use The usage as agreed upon includes the operation in accordance with the operating instructions. The LOCC-Box System is allowed to be used according to the described applications within the technical documents only and in combination with the recommended authorized foreign devices and components only. -
Page 7: Gateway - Profinet, 716457
User Manual Profinet-IO - Gateway 2 Gateway – Profinet, 716457 The LOCC-Box Gateway is an electronic part which distributes and transforms the data and the messages of the serial LOCC-Box-Net interface (LOCCbus) to 2 further communication interfaces USB or Profinet. 2.1 General Information 2.1.1 Explanation... -
Page 8: Function And Displays
User Manual Profinet-IO – Gateway 2.1.3 Function and Displays Function Description Communication terminal, 1 wire bus, LOCCbus Not connected Power-M 0V – terminal for the internal power of the gateway Power-P DC 12/24V – terminal for the internal power of the gateway Connection: spring terminal, pluggable Displays Function... -
Page 9: Loccbus - Interface
User Manual Profinet-IO - Gateway 2.1.5 LOCCbus - Interface Count Interface, contoler UART integradet in CPU Bitrate 9600 Baud, 9 Bit, No polarity, 1 stop-bit Physical interface Software In Firmware 2.1.6 Operation system and driver Operation system eCos Driver Siemens-ComDec Profinet Stack V3.1.0 2.1.7 Mounting Profinet-Gateway 716457_100_HB_EN.docx... -
Page 10: Installation
User Manual Profinet-IO – Gateway Installation 2.2.1 Stracture in principle 1. Provide the gateway and all LOCC-Box-Net modules with power supply DC 12/24V 2. Connect all “COM”-terminals of the modules with “C”-terminal (1) of the gateway. For this the jumper combs indicated in the accessories are suitable. Here red represented. See section 5 accessories. -
Page 11: Communication Via Usb
User Manual Profinet-IO - Gateway Communication via USB See use manual „LOCC_Box-Net_x.xx_HB_EN“Communication via Profinet, Communication via Profinet-IO Profinet is 100% conform to the Ethernet-Standard IEEE 802.3. It works full duplex and support Industrial Ethernet with a transfer speed of 100Mbit/s. Used switches for NRT- and RT-Communication must support: ... -
Page 12: Gsdml - Files
User Manual Profinet-IO – Gateway IO-Controller Device (typical: a controller) which initiates the I/O Data traffic. Internet Protocol: assures the data transfer in the internet from end node to end node. Isochronous Real Time: Profinet communication channel which provides the synchronic, time controlled transfer of data. -
Page 13: Function Range
User Manual Profinet-IO - Gateway 2.4.4 Function Range The Gateway supports (port to port) all Profinet–IO functions. Cyclic data exchange: IO data will transfer in an adjustable cycle between provider and consumer. The customer can select different properties for the transmit interval and the receive interval. -
Page 14: Configuration In Step7
User Manual Profinet-IO – Gateway 2.4.6 Configuration in step7 The pictures show the integration of LOCC-Box Gateway (LOCC-Box-Net-PN) and the system of LOCC-Box-Net modules. Profinet-Gateway 716457_100_HB_EN.docx... -
Page 15: Device Access Point (Dap)
User Manual Profinet-IO - Gateway 2.4.7 Device Access Point (DAP) The Device Access Point has following parameter: the cycle time for task time in millisecond. Range: 20 ... 65535 ms The cycle time is a fix time for reading and writing per module. -
Page 16: 2.4.9.1 Input-Byte
User Manual Profinet-IO – Gateway 2.4.9.1 Input-byte The input byte includes the module state information of the connected LOCC-Box. The module state is according to the information in LOCC- Pads respectively index 0x2010 (see chapter 2.4.11.2). Iwarning System Undervoltage New module Short-circuit (I>0,9 * Reserve... -
Page 17: Example For The Used Instructions
User Manual Profinet-IO - Gateway 2.4.11 Example for the used instructions 2.4.11.1 Module type (2000 Index Name Data type Default type 1 2000 Module type USINT The value of Module type interprets the module version: 1 = 716410 Example: The read out value is converted into a decimal value. 00 00 00 01 ... -
Page 18: Output Voltage (2100 H )
User Manual Profinet-IO – Gateway Example: = decimal = 5 + 1 = current range 6A = decimal = 1 + 1 = characteristic 2 2.4.11.4 Output voltage (2100 Index Name Data type Default type 1 2100 Output voltage UINT The value contains the amount of the adjacent output voltage. -
Page 19: Characteristic Adjustment (210A )
User Manual Profinet-IO - Gateway Example: 00 00 00 1F = decimal = 31 31 x 32,75A Current = = 0,99A 1024 2.4.11.7 Characteristic adjustment (210A Index Name Data type Default type 1 210A Charactristic adjustment UINT This object returns the current parameters of the characteristic adjusted. Example: Binary 0 0 0 0 0 0 0 0 binary 0 0 0 1 1 1 1 1... -
Page 20: Serial Number
User Manual Profinet-IO – Gateway 2.4.11.9 Serial Number (2201 Index Name Data type Default type 1 2201 Serial number UDINT This object returns the serial number of the LOCC-Box. The read out value is converted into a decimal value. Example: 00 01 E1 EF = decimal = 123375 2.4.11.10 LOCC-Box counter “Operating voltage ON“... -
Page 21: Locc-Box Counter "Switch On" (2206 )
User Manual Profinet-IO - Gateway 2.4.11.14 LOCC-Box Counter “Switch on” (2206 Index Name Data type Default type 1 2206 LOCC-Box Counter “Switch on” UDINT This object gives the information how many times the LOCC-Box has been switched on. The read out value is converted into a decimal value. -
Page 22: Technical Data
User Manual Profinet-IO – Gateway Technical Data General Data Rated voltage DC 12/24V Operation voltage DC 10 – 32V Rated current max. 120mA Polarity protection Housing material PA 6.6 (UL 94 V0) Mounting snap on TS 35 (according to EN 50022) Protection level IP 20 Mounting position... -
Page 23: Exchanging Locc-Box-Net Without Locc-Pads
User Manual Profinet-IO - Gateway 3 Exchanging LOCC-Box-Net without LOCC-Pads Exchanging the LOCC-Box with an existing configuration is possible without LOCC-Pads. Requirement: It is only possible to change one module at a time. The new module has to be in the default setting. It has to have the node number 0. Profinet communication must be existing. -
Page 24: Firmware Update
User Manual Profinet-IO – Gateway 4 Firmware update Indroduction Because of further developments of the LOCC-Box-Net family updates are possible. The description is valid for the module 716457 (Profinet-IO). Download Please use for this update the newest version of the software package “LOCC-Pads”. After registration you can download the update from our webpage. - Page 25 User Manual Profinet-IO - Gateway Profinet-Gateway 716457_100_HB_EN.docx...
-
Page 26: New Hardware Installation
User Manual Profinet-IO – Gateway New hardware installation 1. Nachdem Zuschalten der Versorgungsspannung wird das Gateway als neue Hardware “USB Serial Port“ erkannt, jedoch wird der Gerätetreiber nicht automatisch installiert. Eine manuelle Installation ist erforderlich. 2. Im Geräte-Manager wird die Hardware unter „Andere Geräte“... -
Page 27: Accessories
User Manual Profinet-IO - Gateway 5 Accessories For the LOCC-Box-Net we offer a wide range of accessories: Part.- Accessories Type Module Supply terminal with cut out of the copper bar 716421 LOCC-Box-EKL 7-6421 for current increase Distance terminal without contacts 716422 LOCC-Box-DKL 7-6422 LOCC-Box housing without terminals... - Page 28 User Manual Profinet-IO – Gateway Scope of the document The gateways may include software licensed by 3rd parties. The following third party intellectual property (IP) notices are provided to comply with the terms of such licenses. Lütze Gateway 716459 Firmware The firmware of the Gateway uses the FreeRTOSTM operating system which is developed under the terms of the GPL.
