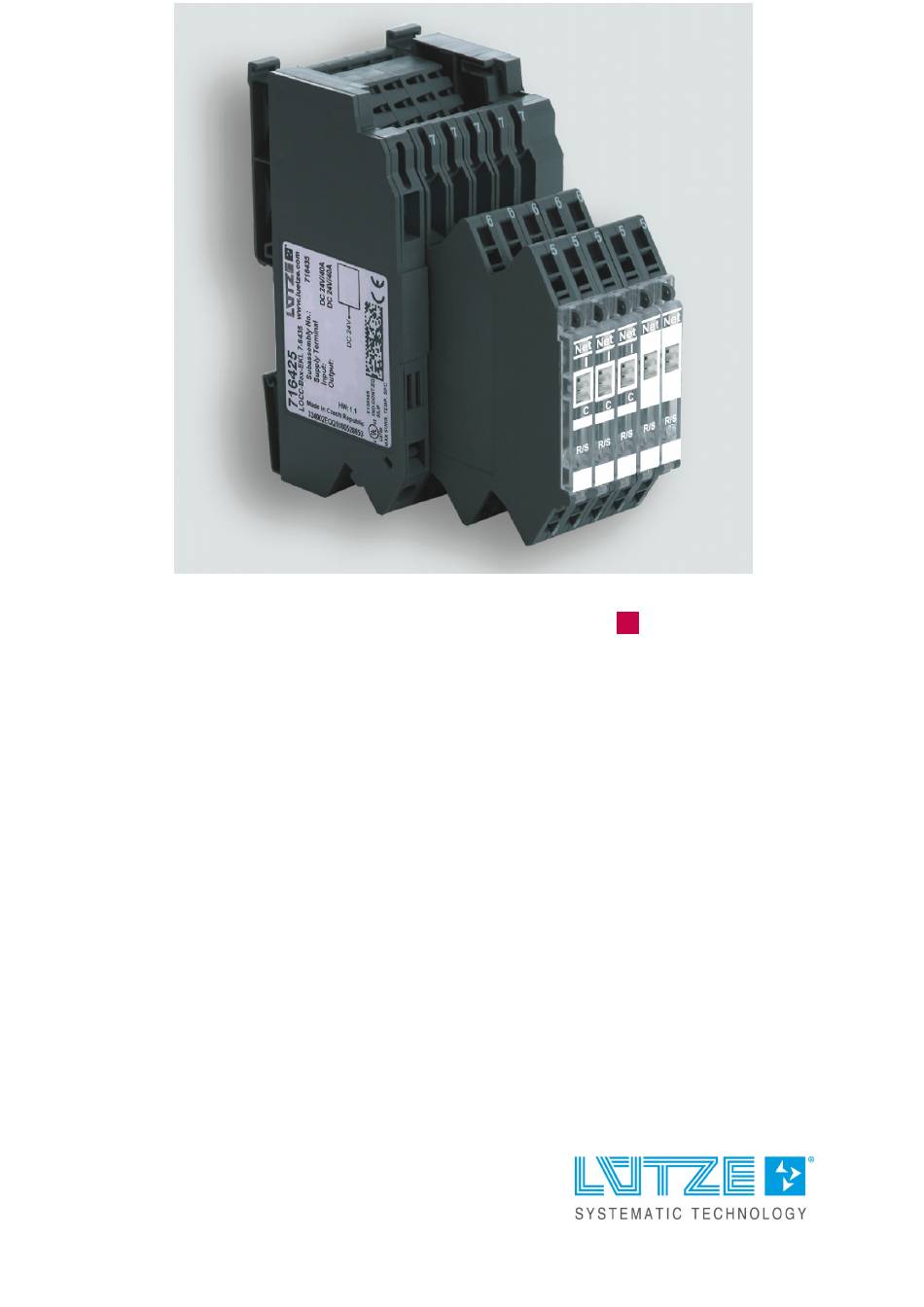

- Page 1 User Manual LOCC-Box-Net – LOCC-Pads Description of LOCC-Box-Net and LOCC-Pads. User Manual LOCC-Box-Net – LOCC-Pads Description of LOCC-Box-Net and LOCC-Pads. Version 1.61...
- Page 2 User Manual LOCC-Box-Net, LOCC-Pads The user manual is part of the product and contains important information about the handling and the safety. To avoid hazardous situations read the manual before installing the product and using it. Lütze reserves the right to change its products in the interest of technical progress.
-
Page 3: Table Of Contents
2.2.4 Function, Displays and Settings ..................11 2.2.5 Installation .........................12 2.3 Technical data ....................12 2.3.1 LOCC-Box-Net (Control unit) ....................12 2.3.2 Supply set (Supply terminal and end block), 716425 ............13 2.4 Characteristic Curves ..................14 LOCC-Pads (Software) ............15 3.1 Introduction ..................... 15 3.2 Installation ....................... - Page 4 User Manual LOCC-Box-Net, LOCC-Pads 3.5.8 Extra / LOCC-Box Config ....................23 3.5.9 Extra / LOCC-Box Info ......................24 3.5.10 Extra / LOCC-Box Logging ....................25 3.5.11 Extra / LOCC-Box Reset ....................25 3.6 Configuration Saving / Open ................25 3.6.1 Saving ..........................26 3.6.2 Open ..........................26 Accessories ................
-
Page 5: General Information
User Manual LOCC-Box, LOCC-Pads 1 General Information Symbol Description The manual contains several safety messages. Each safety message contains a defined signal word and a color. The color and the word are referring to an alert level. There are 4 levels. The safety messages point out hazardous situations and give information to avoid those. -
Page 6: Intended Use
User Manual LOCC-Box-Net, LOCC-Pads 1.4.2 Intended Use The usage as agreed upon includes the operation in accordance with the operating instructions. The LOCC-Box System is allowed to be used according to the described applications within the technical documents only and in combination with the recommended authorized foreign devices and components only. -
Page 7: Locc-Box-Net
General LOCC-Box-Net ist eine elektronische Lastüberwachung zum Aufbau einer selektiven Absicherung von Verbrauchern. Diese können ohmsch, kapazitiv oder induktiv sein. LOCC-Box-Net ist eine busfähige Variante welche über Gateway’s in verschiedene Feldbussysteme integriert werden kann. Sie ist eine weitere Variante der Standard LOCC-Box. Eine Parametrierung von Statusausgang, Ferneingang bzw. -
Page 8: Adjustments
- Charakteristik Nr. 10 wird auf Default wie Nr. 5 zurück gesetzt (Kapitel 3.5.4) Das Zurücksetzen geschieht wie folgt: - Die LOCC-Box-Net ist mit dem Gerätetaster in den Zustand AUS zu schalten à rote LED. - Der Gerätetaster ist mindestens 5s lang zu drücken bis die LED anfängt grün zu blinken. -
Page 9: Simplified Diagram
User Manual LOCC-Box, LOCC-Pads Der max. Strom einer Einspeiseklemme beträgt 40A. Um einen Strom > 40A in das System einzuspeisen können, empfehlen wir die zusätzliche Verwendung einer oder mehrerer Einspeiseklemmen vom Typ 716421. Somit ist ein Maximalausbau mit 160A möglich (begrenzt durch die 3x10mm Kupferschiene). B) Direct voltage supply of the control unit Instead of powering the system via the supply terminal, it is possible to power the system via the termination point (6). -
Page 10: Dimension And Pin Assignment
User Manual LOCC-Box-Net, LOCC-Pads 2.2.3 Dimension and Pin assignment 1: + Output 2: Control input (Set / Reset) 3: Status output 4: Communication 5: 0V 6: + Supply (alternative) 7: + Supply LOCC-Box 716410 LOCC-Box 716411 LOCC-Box-Net_1.61_HB_EN... -
Page 11: Function, Displays And Settings
User Manual LOCC-Box, LOCC-Pads 2.2.4 Function, Displays and Settings Functionality Description Output + , Load + potential load Binary DC 12/24V input to switch on/ off the control unit. Parametrizable with software LOCC-Pads - chapter 3.5.8 Control input - Set /Reset Default: Off: DC 12/24V (falling edge, pulse >... -
Page 12: Installation
User Manual LOCC-Box-Net, LOCC-Pads Installation 2.2.5 Technical data 2.3.1 LOCC-Box-Net (Control unit) Input Nominal voltage DC 12/24V Voltage range DC 10 – 32V Nominal current DC 10A max. System current DC 40A via copper bar 3x10mm Polarization protection internal electronic... -
Page 13: Supply Set (Supply Terminal And End Block), 716425
User Manual LOCC-Box, LOCC-Pads 2.3.2 Supply set (Supply terminal and end block), 716425 Input Nominal voltage DC 12/24V Nominal current DC 40A max. General Data Housing material PA 6.6 (UL 94 V0; NFF I2,F2) Mounting snap on TS 35 (acc. EN 50022) Protection level IP 20 Mounting position... -
Page 14: Characteristic Curves
Characteristic Curves The LOCC-Box / LOCC-Box-Net offer the possibility to implement 10 characteristics. Up to the product state E06 the first 3 switch positions (C) are realized as: 1 = fast acting, 2 = middle acting and 3 = slow acting_1. -
Page 15: Locc-Pads (Software)
Windows 7 , 32 Bit, 64Bit The software is designed to parameterize, to analyze and to diagnose the LOCC-Box-Net and all connecting loads. Connect the module via the USB interface to the computer, see chapter 3.3Fehler! Verweisquelle konnte nicht gefunden werden.. For the communication between LOCC-Box-Net and LOCC-Pads a Gateway is required. - Page 16 User Manual LOCC-Box-Net, LOCC-Pads 5. Licensing Agreement Please read the licensing agreement carefully and choose I accept the Agreement or I reject the agreement. In case of a rejection it is not possible to proceed with the installation. Confirm with Next.
-
Page 17: Usb Connection
Finish to complete the installation. USB connection The picture shows the connection between LOCC-Box-Net and a computer via the USB connection. The follow example show the gateway 716459 (CANopen). The connection to other gateway is similar – see the relevant the relevant user manual. The USB cable is in the gateway scope of delivery. -
Page 18: Adjustments
User Manual LOCC-Box-Net, LOCC-Pads 1. Supply the module, the LOCC- Box-Net and the Gateway with an operating voltage of DC 12/24V. 2. Connect all the COM connectors of the LOCC-Box- Net module to the Gateway. The jumper combs (see chapter 4, Accessories) are suitable for this purpose. -
Page 19: Firmware Download
User Manual LOCC-Box, LOCC-Pads Ø General - Cycle time (ms): Time for the cyclic inquiry of the Connected LOCC-Box-Net modules Ø CAN - Node number: Assignment of the node number in the CANopen Network, maximal 254 - Baud rate (Kbit/s): Adjustment of the data rates, min. -
Page 20: Window - Locc-Box Nodes (Node Number Assignment)
User Manual LOCC-Box-Net, LOCC-Pads 3.5.1 Window - LOCC-Box Nodes (Node Number Assignment) This window offers the possibility to search modules, to adjust the start/stop record of the module data and the scan time. Also the node number, the device status, the type, the serial number and an editable comment are displayed. - Page 21 User Manual LOCC-Box, LOCC-Pads To cancel click Cancel. To change node numbers afterwards. The modules have to be in the stopping mode. Scan time (cycle time) The scan time (cycle time) can be adjusted to min.100 ms. This time indicates in which time period the modules are queried by the Gateway.
-
Page 22: Windows - All Nodes
– 100% of the load monitoring according to the current flow. This means the bigger the over current, the smaller the time until the LOCC-Box-Net switches off the load. On / Off Provides the possibility to switch the modules ON/OFF or acknowledge the modules after Blown. -
Page 23: Window - Locc-Box Counter
User Manual LOCC-Box, LOCC-Pads 3.5.5 Window - LOCC-Box Counter The LOCC-Box modules have internal counters, which are read out by the software and displayed. These counters cannot be deleted. Power ON Indicates how many times the LOCC-Box has been connected to the supply voltage. -
Page 24: Extra / Locc-Box Info
User Manual LOCC-Box-Net, LOCC-Pads Ø Status Output The status output is suitable for the error recording and can be parameterized for two operating modes. The High level is available if the output is switched on. The status changes to low if the output is switched off by overload or short circuit. -
Page 25: Extra / Locc-Box Logging
User Manual LOCC-Box, LOCC-Pads 3.5.10 Extra / LOCC-Box Logging After starting the window LOCC-Box Logging, all events are saved in a temporary file on the computer. The file can be opened via the menu and can be saved as a CSV file. If shutting down LOCC-Pads an inquiry for saving the file appears. -
Page 26: Saving
User Manual LOCC-Box-Net, LOCC-Pads 3.6.1 Saving At least one module has to be connected and the modules have to be in the stop mode. Click File>Save Configuration 3.6.2 Open To open an existing configuration at least one bus node has to be connected and the modules have to be in the stop mode. -
Page 27: Accessories
User Manual LOCC-Box, LOCC-Pads 4 Accessories For the LOCC-Box-Net we offer a wide range of accessories: Part.- Accessories Type Module Supply terminal with cut out of the copper bar 716421 LOCC-Box-EKL 7-6421 for current increase Distance terminal without contacts 716422... -
Page 28: Reference
User Manual LOCC-Box-Net, LOCC-Pads 5 Reference The follow table shows an overview of all gateway user manuals. Gateway Article number User manual EtherCAT, USB 716456 EtherCAT-Gateway 716456_1.1_HB_DE Profinet-IO, USB 716457 Profinet-IO-Gateway 716457_1.00_HB_DE Profibus-DB, USB 716458 Profibus-DP-Gateway 716458_1.0_HB_DE CANopen, RS232, USB 716459 CANopen-Gateway 716459_1.0_HB_DE...
