READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THE APPLIANCE.
A MAJOR CAUSE OF PARRILLA-RELATED FIRES IS FAILURE TO MAINTAIN RE-
QUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF
UTMOST IMPORTANCE THAT THIS PARRILLA BE INSTALLED ONLY IN ACCOR-
5
4

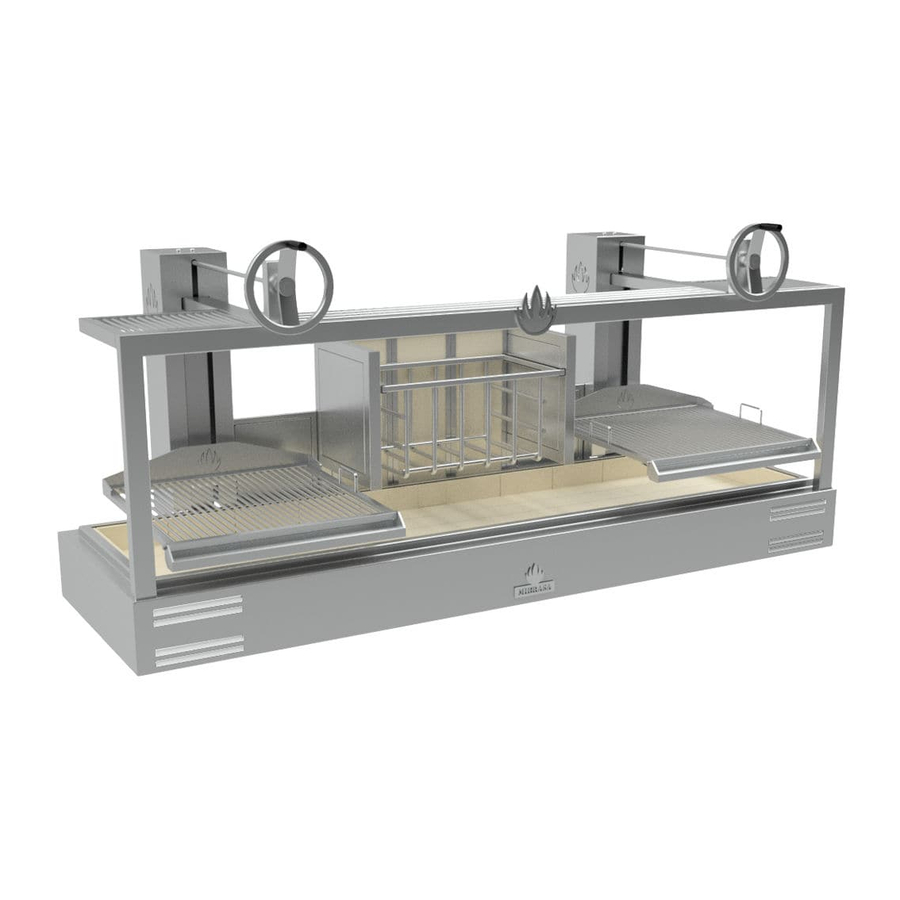

PARRILLA FIRE
USER MANUAL
SAVE THESE INSTRUCTIONS.
4
DANCE WITH THESE INSTRUCTIONS.
www.mibrasa.com
Feeding the Senses!
MIBRASA
3
Designed by
Usuario
3
EN
®
2
Checked by
Approved by
GMB 160 FIRE
2
/ FR
Date

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARRILLA FIRE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mibrasa PARRILLA FIRE

Summary of Contents for Mibrasa PARRILLA FIRE

  • Page 1 / FR MIBRASA ® PARRILLA FIRE USER MANUAL READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THE APPLIANCE. SAVE THESE INSTRUCTIONS. Designed by Checked by Approved by Date Usuario A MAJOR CAUSE OF PARRILLA-RELATED FIRES IS FAILURE TO MAINTAIN RE- QUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF...
  • Page 2 PLEASE READ THIS ENTIRE MANUAL YOU INSTALL THE OVEN. FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH. SAVE THESE INSTRUCTIONS...

  • Page 3: Table Of Contents

    Contents 1. Introduction 2. Mibrasa Parrilla Fire dimensions ® 3. Parts of the Mibrasa Parrilla Fire ® 4. Installation instructions 4.1. Installation guidelines and safety standards 5. Lighting up 6. Parrilla Fire operation 7. Maintenance and safety standard 7.1. Daily and weekly cleaning 7.2.

  • Page 4: Introduction

    ® lessly regulates the height of the grill from the heat of embers with maximum safety and minimum maintenance. The Mibrasa Parrilla Fire lets us sear, cook and rest our ingredients, achieving the optimal ® result every time. The Mibrasa Parrilla Fire is manufactured with steels of the latest technology following ®...

  • Page 5: Mibrasa ® Parrilla Fire Dimensions

    2. Mibrasa Parrilla Fire dimensions ® Dimensions in inches FRONT VIEW FRON VIEW GMB 160 FIRE GMB 200 FIRE 41.45 [1053] 31.02 64.45 81.77 [788] [1637] [2077] 36.0 [915] FRONT VIEW 74.4 [1890] GMB 252 FIRE 11.4 13.7 37.4 41.45...

  • Page 6: Parts Of The Mibrasa ® Parrilla Fire

    3. Parts of the Mibrasa Parrilla Fire ® 1. Structure 2. Main body 3. Fire basket Drive shaft Guide column Designed by Checked by Approved by Date Date Usuario 22/01/2021 Edition Sheet CREMADOR 252 1 / 1 Diseño de Revisado por...
  • Page 7 Included accessories: Rod grill (x2) Heating rack grids (x2) Cooking support rack Mibrasa tongs (x2) Swivel hook (x2) Grill brush (x2) Designed by Checked by Approved by Date Date Diseño de Revisado por Aprobado por Fecha Fecha 22/01/2021 Usuario 21/04/2020...

  • Page 8: Installation Instructions

    4. Installation instructions Place the main body on top Remove the grease Remove the cooking support of the stand. collectors and the grills rack and the heating rack grids *A certified “NSF” silicone shall be used to seal the main body to the countertop Replace the cooking Replace the grills and Ready to work...

  • Page 9: Lighting Up

    5. Lighting up Raise the grills Load the charcoal Place and light the Ecofire firelighters 30 MIN Always light the charcoal inside the refractory base. Spread the embers Regulate the grill to Ready to cook the desired height Approximate quantity of charcoal according Model Initial charcoal load to Parrilla model:...

  • Page 10: Maintenance And Safety Standard

    , which could result in a possible fire. Mibrasa is not responsible for any damages occurred caused by wrongful use, when the in- ® stallation instructions have not been followed or wrongful maintenance of the exhaust hood.

  • Page 11: Safety Standards

    Please read this entire manual before you install the Mibrasa Parrilla. ® Failure to follow instructions may result in property damage, bodily injury, or even death. 7.4. Safety standards WARNINGS • Do not pack required air spaces with insulation or other materials.

  • Page 12: General Conditions

    Mibrasa ® (III) those defects not immediately notified within the warranty period stated above, (IV) those defects or damage due to negligence not attributable to Mibrasa , or an ® accident, misuse, improper installation, mishandling or abnormal conditions of...
  • Page 15 EN / GRILL OUVERT FIRE MIBRASA ® MANUEL D’INSTRUCTIONS UNE DES PRINCIPALES CAUSES D’INCENDIE PROVOQUÉ PAR LE GRILL OUVERT SE DOIT AU NON-RESPECT DE LA MAINTENANCE DES Date ESPACES D’AIR REQUIS POUR TOUT MATÉRIAU COMBUSTIBLE. Designed by Checked by Approved by...
  • Page 17 Index 1. Introduction 2. Dimensions du Grill Ouvert Fire Mibrasa ® 3. Parties du Grill Ouvert Fire 4. Instructions d’installation 4.1. Indication de montage et normes de sécurité 5. Mise en route 6. Fonctionnement 7. Maintenance et normes de sécurité...
  • Page 18 à chaque fois le résultat de cuisson souhaité. Le Grill Ouvert Fire Mibrasa est fabriqué avec des aciers de dernière technologie et suivant ® des contrôles rigoureux de qualité, comme tous les équipements Mibrasa ® Nos Grills Ouverts Fire Design ergonomique. Qualité et sécurité maximales.
  • Page 19 2. Dimensions du Grill Ouvert Fire Mibrasa ® Dimensions en mm VUE FRONTALE VUE FRONTALE GMB 160 FIRE GMB 200 FIRE 1053 2077 1637 VUE FRONTALE 1890 GMB 252 FIRE 1450 1053 Fondo 420 2520 1053 1637 2364 VUE LATÉRALE VUE LATÉRALE...
  • Page 20 3. Parties du Grill Ouvert Fire Mibrasa ® 2. Foyer principal 1. Structure 3. Brûleur Colonne guide Axe de transmission Designed by Checked by Approved by Date Date 22/01/2021 Usuario Edition Sheet CREMADOR 252 1 / 1 Diseño de Revisado por...
  • Page 21 Accessoires inclus: Grille ronde (x2) Grilles de support de Support de cuisson plateaux (x2) Pinces Mibrasa (x2) Crochet rotatif (x2) Brosse métallique (x2) Diseño de Revisado por Aprobado por Fecha Fecha Designed by Checked by Approved by Date Date Usuario...
  • Page 22 4. Instructions d’installation Placez le corps principal sur Enlever les grilles et les Enleve le support de cuisson el meuble. *Un silicone certifié collecteurs de graisse et les grilles de support de «NSF» doit être utilisé pour sceller plateaux le corps principal au comptoir. Repositionner le support Repositionner les grilles et Prêt à...
  • Page 23 5. Mise en route Monter les grilles Charger le charbon Placer et allumer les tablettes allume-feu 30 MIN Allumez toujours le charbon à l’intérieur de la base réfractaire. Étaler les braises Régler la hauteur Prêt pour la cuisson de la grille Quantité...
  • Page 24 Nettoyage hebdomadaire et entretien annuel de la hotte, du caisson de ventilation et des conduits selon les recommandations du fabricant de la hotte. Mibrasa ne sera en aucun cas responsable de possibles dommages qui pourraient être ® causés par une mauvaise utilisation du Grill Ouvert et des installations qui ne correspond-...
  • Page 25 7.4. Normes de sécurité • Utiliser uniquement du charbon végétal dans le Grill Ouvert Mibrasa ® • Lors du premier allumage du Grill Ouvert Mibrasa , attendre au minimum une heure ®...
  • Page 26 Mibrasa ® (III) défauts ou dommages non communiqués dans la période de garantie ci-dessus indiquée, (IV) dommages dus à une négligence non attribuable à Mibrasa , accident, ® mauvaise utilisation, installation inappropriée, mauvaise manipulation ou con- ditions anormales de température, humidité, salissure, corrosion ou toute autre...
  • Page 28 Feeding the Senses! 8950 SW 74th Ct., Suite 1406 Miami, Florida 33156 (408) 348-7607 www.mibrasa.com usa@mibrasa.com Version 1.7...
