Launch X-PROG 3 User Manual page 10

LAUNCH

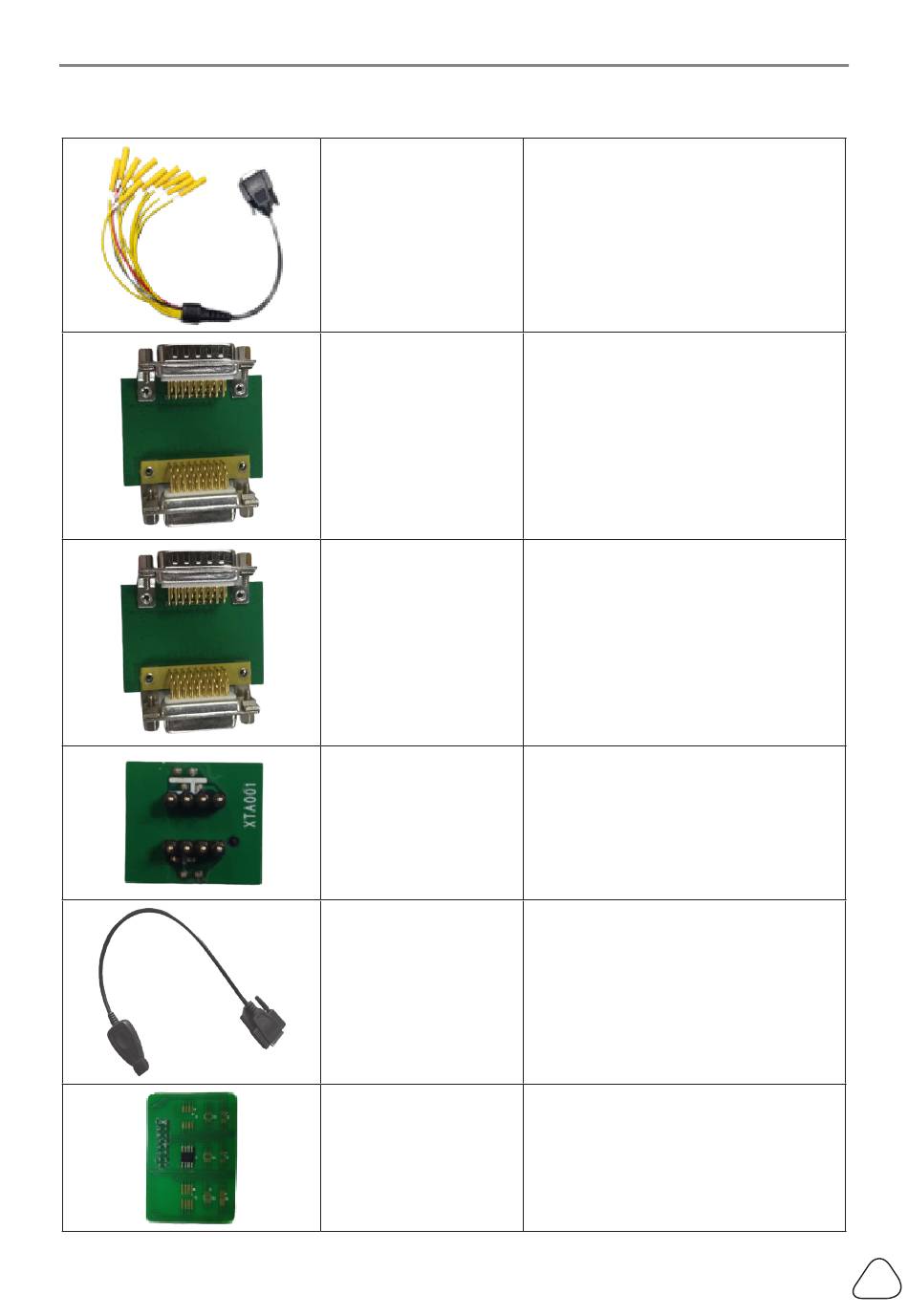

BENCH mode
cable
MCU Converter
V1
MCU Converter
V2
EEPROM chip
adaptor
Benz infrared
analog acquisition
key
EEPROM
converter
X-PROG 3 User Manual
Connect the programmer and
the engine to read engine or
gearbox ECU (Connect engine
ECU with the BENCH mode
cable based on BENCH mode
diagram).
Connect the programmer
with MCU(chip soldering is
required in this procedure).
Connect the programmer
with MCU(chip soldering is
required in this procedure).
Place the EEFROM chip onto
the adaptor, and then plug it
into the programmer socket.
To connect the programmer
with the key lock, insert the
key into the programmer for
further key operations.
Solder the desired chip on
the EEPROM converter, and
then plug the board into the
programmer(chip soldering is
required）
5
