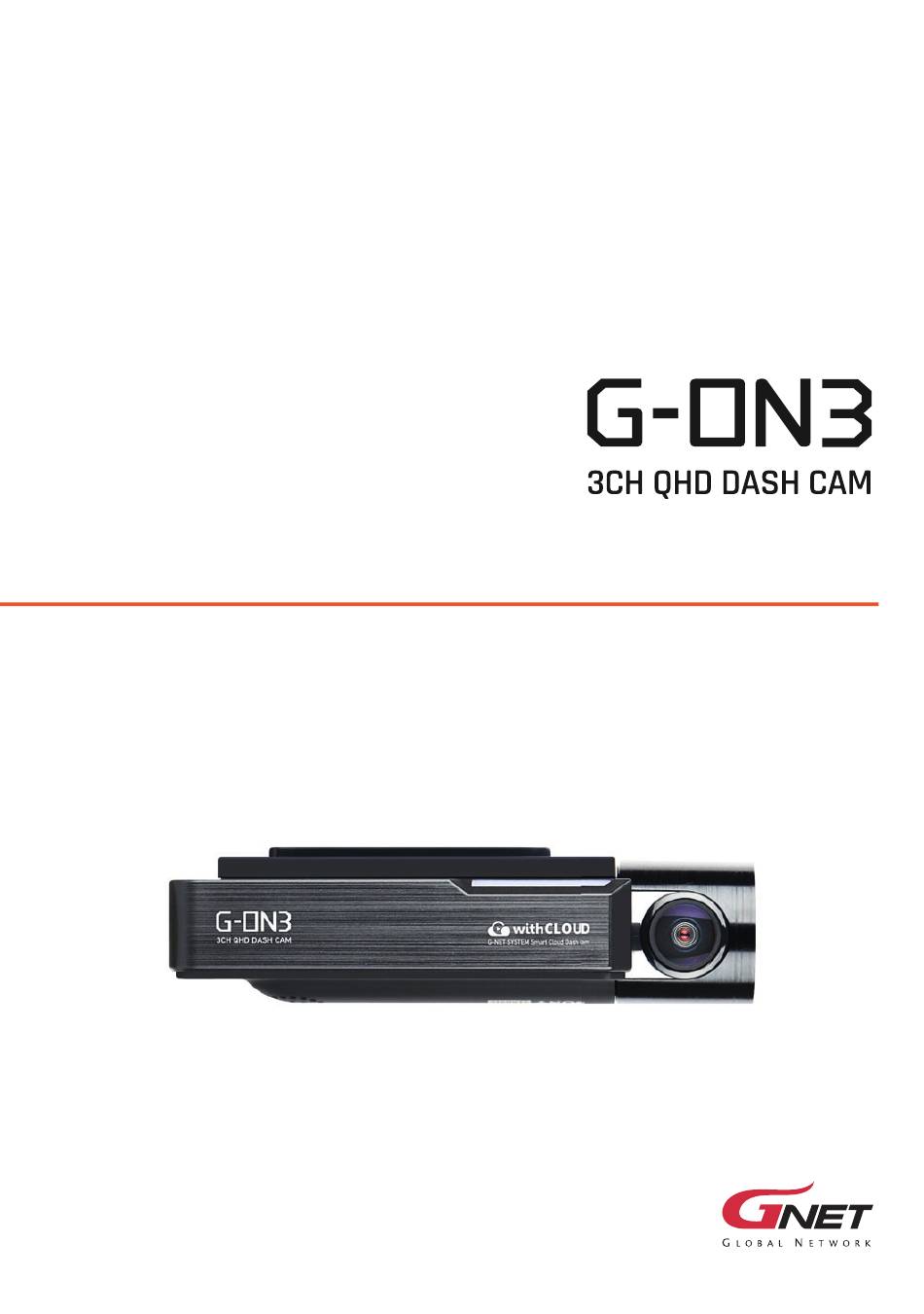

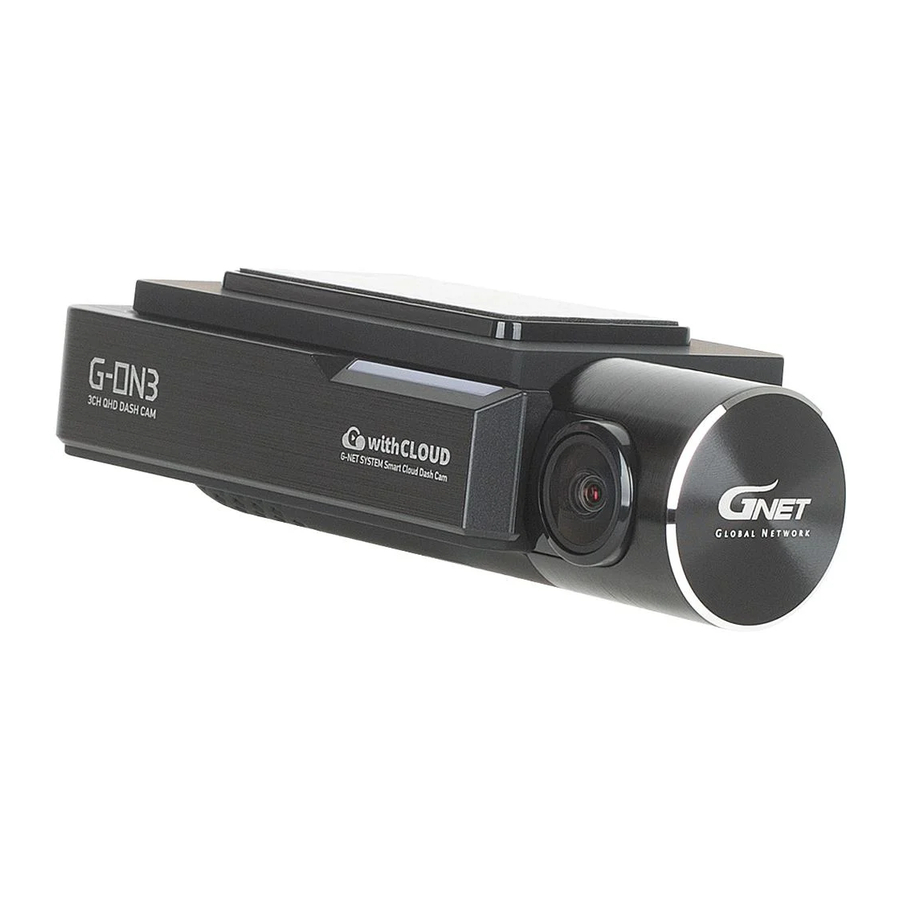

- Page 1 [G-ON3T1・G-ON3T2・G-ON3B] USER MANUAL...
- Page 2 CONTENTS 01. BEFORE USE CAUTION FOR SAFE USE ·········································· CAUTION FOR MEMORY CARD ······························ PRODUCT FEATURES ·············································· PACKAGE COMPONENTS ······································· NAME OF EACH PART ·············································· SPECIFICATION ···························································· INSTALLATION ····························································· 02. FUNCTION HOW TO USE ······························································· MEMORY CARD VIDEO FOLDER ···························· 03.
- Page 3 INSTRUCTIONS WARNING © 2021 GNET SYSTEM CO.,LTD. or its subsidiaries All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of GNET SYSTEM CO.,LTD. GNET SYSTEM CO.,LTD reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements.
- Page 4 It is possible to format the memory card in the GNET application for Mac and PC. Please visit the GNET SYSTEM’s website at: https://www.gnetsystem.com/eng → SUPPORT → DOWNLOAD...
- Page 5 PRODUCT FEATURES 01. BEFORE USE SONY STARVIS Real HDR Image Sensor QHD/FHD/FHD Interior Camera SD Locks for H.265 CODEC Wide Viewing Angle memory protection G-NET CLOUD System Wi-Fi APP...
- Page 6 The size and appearance of the components depicted above may be different from the real components. Specifications and components may be changed without notice for quality assurance. We highly recommend that a GNET Genuine Memory Card be used with all GNET products.
- Page 7 PACKAGE COMPONENTS 01. BEFORE USE G-ON3T1 for Truck Main Camera Interior & Waterproof Camera G-ON3T2 for Truck Main Camera Waterproof Camera x 2 G-ON3B for Bus Main Camera Interior Camera x 2...
- Page 8 NAME OF EACH PART 01. BEFORE USE Front Camera Front Cam Lens Wi-Fi Connection button Rear Cam Connector Port External GPS Connector Port Power Button Security LED OBD2 Connector Port Front Cam bracket Wi-Fi USB dongle Port Micro SD card Slot GPS LED Power Connector Port (DC-IN) REC LED...
- Page 9 NAME OF EACH PART 01. BEFORE USE Rear Camera Cam Lens Rear Cam Mount Rear Cam Connector Port Status LED Interior Camera Cam Lens IR LED Status LED Interior Cam Connector Port Bracket Waterproof Camera Cam Lens IR LED Bracket Waterproof Cam Cable...
- Page 10 128GB : 11hrs 30mins/ 64GB : 5hrs 40mins 3G/4G/Router (Optional) Connect to withCLOUD via 3G/ 4G/ Router telecommunication Wi-Fi (Optional) Connect to GNET Smart phone application via Wi-fi dongle G-Sensor Event recording by External Shock Speaker Operation Status alarm / Voice guidance...
- Page 11 INSTALLATION 01. BEFORE USE How to Install Dashcam Assemble the front camera with the provided bracket in the order displayed. Make sure bracket is hooked correctly. Push and align it until a sound is heard. ( , ). Once the bracket is secure, ensure that the memory card has been inserted. Proceed to peel the cover from the double sided tape on the bracket.
- Page 12 INSTALLATION 01. BEFORE USE Install the front camera onto the front windshield of the vehicle making sure the angle and location is properly aligned. ear] [Interior] [Front] [Rear] TIP: The adhesive is extremely sticky. Avoid touching the adhesive to the windshield until the mount is properly positioned and aligned.
- Page 13 Rear cable [CAM1] DC-IN CAUTION GNET strongly recommends having an experienced installer with the proper knowledge of electrical systems install the device. Incorrectly wiring the power cable can result in damage to the vehicle or the battery and can cause bodily injure.
- Page 14 INSTALLATION 01. BEFORE USE Attach the rear camera to the rear windshield of the vehicle and connect the cable to the front camera. * Front camera (curved cable) * Front cam * Interior IR camera (curved cable) (Right Angle cable) * Rear cam (straight cable) WARNING...
- Page 15 INSTALLATION 01. BEFORE USE How to Install Fuse Cable Please refer to the car manual because the fuse box is differ depending on car model. It is recommended that install the power from the automobile shop. We are not responsible for any damage caused by self-installation. Find the Fuse box using electric tester from fuse box of the vehicle.
- Page 16 INSTALLATION 01. BEFORE USE Connect [GND] line to vehicle (Do not connect the volt which is connected to dash board. Current is not flowing) Connect the power cable to confirm the operation of product. And organize cables to finish installation work...
- Page 17 INSTALLATION 01. BEFORE USE Inserting the Memory Card Please be fully aware of the orientation of the Micro SD Memory Card. Push the Micro SD Memory card into the memory card slot until you hear 'clack' sound. When using memory card for the first time or when the memory card is reused after format, the system will be in stand-by mode for 3~5 minutes to create system files and checking the memory card.
- Page 18 INSTALLATION 01. BEFORE USE Tamper-Proof Cover Installation Insert a micro SD card in ① and connect the power cable to ②. then slide the SD cover into the hole as shown. Fasten a screw firmly to put them together.
- Page 19 INSTALLATION 01. BEFORE USE Seal Cable Installation Hook up the cable to the protrusion on the body. Bend and insert the end of the cable into the hole to lock it and adjust the length as required.
- Page 20 HOW TO USE 02. FUNCTION Product Operation All LED will be turned on when the engine is on or power is on. "Start recording" starts along with voice guidance and REC LED POWER ON is turned on. External GPS LED will be turned off if it is not connected by external GPS All LED will be turned off...
- Page 21 HOW TO USE 02. FUNCTION ADAS Function - Android Set the ADAS function at the GNET application. ADAS ON/OFF : Turn on/off the ADAS as touching ADAS ON/OFF button. LDWS(Lane Departure Warning System) : When the car leaves the lane, detection alarm will be ringing However, the LDWS will only work if it is above the set speed.
- Page 22 ADAS Lane correction - Android To improve the ADAS recognition rate, it is recommended to adjust the G-ON3 dash camera position by matching the end of the vehicle bonnet line on condition that "the lane correction button" is turned on in the real time screen.
- Page 23 HOW TO USE 02. FUNCTION Factory Settings Initialization The Settings factory initialization will be activated if you press the Wi-Fi button over 10 seconds The images in the SD card may be deleted during the setup initialization process.
- Page 24 HOW TO USE 02. FUNCTION Wi-Fi Power On/Off The Wi-Fi power is on/off when you press the power button for 1 second. G-net application and cloud mode are not available while Wi-Fi power cuts.
- Page 25 HOW TO USE 02. FUNCTION Power On/Off Turn off and restart the system. In case of turn the system off by holding the power button, you have to press and hold the power button again in order to restart the system.
- Page 26 HOW TO USE 02. FUNCTION Change Into Wi-Fi or Cloud Mode The Wi-Fi mode is changed to the CLOUD mode or the CLOUD mode is changed to the Wi-Fi mode if you press the Wi-Fi button for 5~6 seconds. (At this time, when switching to the Wi-Fi mode or the CLOUD mode, DASHCAM is on and does not reboot)
- Page 27 02. FUNCTION Recording Mode - When the power is connected, the normal recording will start. Normal Recording - Security LED flickers left and right every 2 seconds. - If there is impact or shock, the record LED will flicker and record in event recording mode Impact Recording...
- Page 28 HOW TO USE 02. FUNCTION Voice Guidance CONTENTS VOICE GUIDANCE Normal recording Start recording System Off Shut down the system Overwriting Recording does not have enough available. Please check overwriting setting. GPS connection GPS connected. Abnormal recording Video is not being entered. Enable registration Stand-by mode for the registration.
- Page 29 HOW TO USE 02. FUNCTION CONTENTS VOICE GUIDANCE Change the Smartphone setting Setting changed and reboot Change parking mode to normal recording Driving mode to start recording. Safe driving Format the Micro SD memory card On- formatting the memory card. Please wait No Mirco SD memory card No Memory card Micro SD memory card damage...
- Page 30 MEMORY CARD VIDEO FOLDER 02. FUNCTION Removing memory card after the device turn off Insert the removed memory card into the memory reader and connect it to the USB port of PC Select removable disk in explorer folder. - Folders in the removable disk are displayed as shown in the following page -“Event”...
- Page 31 MEMORY CARD VIDEO FOLDER 02. FUNCTION Predictable recording time of SD memory capacity (Default: All cameras : Max. 30 FPS) : 8GB(40mins), 16GB(1.5hrs), 32GB(3hrs), 64GB(6hrs), 128GB(12hrs), 256GB(23hrs), 512GB(46hrs), 1TB(92hrs) Total recording time may be different depending on use conditions and environment. Log.txt : It records device's statement as log file Config (Manage system) Version.ini : Saving version information of device...
- Page 32 BEFORE WI-FI CONNECTION 03. APPLICATION Download our Smartphone App - Available for Android and Apple iOS. Search “GNET” on Google Play and Apple App Store. - Or simply scan our QR Code Precaution Before Use - Set the time zone on the GENT app or the viewer.
- Page 33 SMARTPHONE CONNECTION 03. APPLICATION How to connect an Apple iOS smartphone After installing the G-net application * G-net application is not available while cloud mode is on. Press the Wi-Fi® button on the dash camera to enter standby mode with the voice message “Registration standby mode”...
- Page 34 SMARTPHONE CONNECTION 03. APPLICATION How to connect an Android smartphone After installing the G-net application * G-net application is not available while cloud mode is on. Press the Wi-Fi® button on the dash camera to enter standby mode with the voice message “Registration standby mode”...
- Page 35 SMARTPHONE CONNECTION 03. APPLICATION APP Main Screen Description This function allows you to connect other dash cams or delete the registered devices. ※ Supported only on Android mobile Real-Time Video You can watch a real-time video. Settings You can easily change settings via your smartphone.
- Page 36 04. withCLOUD A responsive web platform A responsive web platform that's easy to use with mobile, desktop, and anywhere. that's easy to use with mobile, desktop, and a...
- Page 37 SCREEN GUIDE 04. withCLOUD PC View Menu Icon User Icon Recommended Videos (Random) Vehicle Most Recent Videos Mobile View Menu Icon Recommended User Icon Videos (Random) Most Recent Videos Vehicle...
- Page 38 CONNECTION 04. withCLOUD 1. Cloud Registration 1-1 . Account Creation Connect to withCLOUD (http//cloud.gnetsystem.com) [Supported Browsers] Google Chrome / Safari / Naver Whale / Edge / Internet Explore A verification link to your email address will be sent. Click the link, insert your information, click the confirm button after agreeing to the terms and conditions.
- Page 39 CONNECTION 04. withCLOUD 04. withCLOUD 1. Cloud Registration 1-2 . Vehicle Registration After log in, click the icon of the [Menu] at the top left of the main screen, select [Management - My Vehicle] Select [Add a Vehicle]...
- Page 40 CONNECTION 04. withCLOUD 04. withCLOUD 1. Cloud Registration 1-2 . Vehicle Registration Fill out vehicle information and select [OK] button. (Verify serial number at the bottom of the dash camera is the same) Vehicle Registration Complete.
- Page 41 CONNECTION 04. withCLOUD 2. Dash Camera Connection Method1. App with Wi-Fi (iOS) Wi-Fi button on the dash camera, press for about 1 second, "Waiting for registration" Voice guidance is output. Select a network starting with [WiFi Settings] ‘GNET_BB’ in standby for registration. Enter the Wi-Fi password 'qwertyuiop'.
- Page 42 04. withCLOUD 2. Dash Camera Connection Method1. App with Wi-Fi (iOS) When running the GNET app, the user “Registration Complete” voice guidance is output. Select [Settings] on the main screen. Cloud use [ON], after entering the router's SSID and password.
- Page 43 2. Dash Camera Connection Method1. App with Wi-Fi (Android) Wi-Fi button on the dash camera, press for about 1 second, "Waiting for registration" Voice guidance is output. Run GNET apps while waiting for registration. Select [Device Registration] in the center of the screen.
- Page 44 CONNECTION 04. withCLOUD 2. Dash Camera Connection Method1. App with Wi-Fi (Android) Select the device and then [Connect]. After confirming the voice guidance “Registration completed”, input device information and [Save]. Connect onnect Select [Settings] on the main screen. Cloud use [ON], after entering the router's SSID and password. After clicking the [Back] button, click [YES] in the pop-up to complete the registration.
- Page 45 2. Dash Camera Connection Method2. PC Viewer Insert your micro SD card in the computer. Execute “GNET PC VIEWER” and open the SD memory file. Click the [Setting] icon on the tool-box. [Cloud] - [Use the withCLOUD] - select [on].
- Page 46 CONNECTION 04. withCLOUD 2. Dash Camera Connection Method2. PC Viewer Enter your SSID and password to popup screen and tap [OK] button. (When entering SSID and password, enter case sensitive) KTEGG_SSID ******** Click [OK] button to complete cloud registration. KTEGG_SSID...
- Page 47 CONNECTION 04. withCLOUD 2. Dash Camera Connection Method2. PC Viewer Save the settings. Put the micro SD card back to the dash camera and power on.
- Page 48 - withCLOUD is available when Wi-Fi dongle and GPS are working. - It can be disable if connection is unstable. - GNET app in cloud mode, it cannot be used. - To switch Wifi/Cloud mode, press the Wi-Fi button for 5-6 seconds.
- Page 49 HOW TO USE ‘withCLOUD’ 04. withCLOUD Live Streaming GPS Tracking Statistics Geo-Fence...
- Page 50 HOW TO USE ‘withCLOUD’ 04. withCLOUD 1. Live Streaming After selecting a vehicle on the map, press the live button to play the streaming.
- Page 51 HOW TO USE ‘withCLOUD’ 04. withCLOUD 2. GPS Tracking Select the date and vehicle information, then press the Search button.
- Page 52 HOW TO USE ‘withCLOUD’ 04. withCLOUD 3. Statistics Select the date and vehicle information, then press the Search button. Comparison search by date and vehicle is possible.
- Page 53 HOW TO USE ‘withCLOUD’ 04. withCLOUD 4. Geo-Fence You can easily add geofences and view their history. The geofence entry and exit details are also notified by an event alarm.
- Page 54 PC VIEWER INSTALLATION 05. PC VIEWER Install PC Viewer - MAC OS "PC Viewer-MAC OS" installation program on the Gnet homepage [Customer Center - Download ] Download and use it. Install PC Viewer - WINDOW The PC specification should be over ‘CPU i5 3.0 GHz, Memory 4GB’ to play the Full HD If the PC specification is lower than standard, it is possible to happen...
- Page 55 PC VIEWER INSTALLATION 05. PC VIEWER Install PC Viewer - WINDOW Install the [Viewer.exe] file in the Micro SD memory card as picture shown. Click the [YES] button on the user control menu. Click the [Next] button and click the [Installation] button...
- Page 56 Click the [Execute a viewer] button to start viewer program. When the installation is completed, the PC Viewer program runs automatically and Gnet icon will be created on the computer. Gnet icon ▶ [Open the file] When click the file button( the browse folder will appear like picture.
- Page 57 SCREEN GUIDE 05. PC VIEWER PC Viewer - MAC OS Menu button Google Map (When GPS and internet are connected, it will work normally) Playlists and Information Display Enable on OBD connection Accelerator Handle Angle Reverse Drive Parking Neutrality Brake Direction Coolant indicator lamp...
- Page 58 SCREEN GUIDE 05. PC VIEWER PC Viewer - MAC OS Screen settings Full screen PIP (below) Reverse and forward play Stop Repeat all video Previous, Next Event Speedometer (It can be used only when an external GPS is connected) Dashcam Settings (SYSTEM / EVENT / USER / VERSION)
- Page 59 SCREEN GUIDE 05. PC VIEWER PC Viewer - WINDOW Tool Box Save Folder Open Print Setting Google Map (When GPS and internet are connected, it will work normally) Playlists and Information Display G-sensor (acceleration) graph GPS reception window Speedometer (It can be used only when an (It can be used only when an external GPS external GPS is connected) is connected)
- Page 60 SCREEN GUIDE 05. PC VIEWER How to Check G-sensor data When you play the video, three-dimensional coordinate system information (G-sensor data) on the X-axis(progress direction), Y-axis (left-right), and Z-axis (height) of the image currently being played at the G-sensor data location is output. <Magnification of G-sensor data>...
- Page 61 QUESTION AND ANSWER Q&A Hearing “Ding-Dong” sound come from dash cam while driving. A impact detection sensor inside dash cam detects impact or when dash cam detect curve while driving, there is buzzer sound like Ding-dong with frequent LED blinking. It means that dash cam is correctly working. If the sound from device bothers you, you can configure sound and buzzer to turn on/off...
- Page 62 QUESTION AND ANSWER Q&A Parking mode work in curve or slope on the road. To switch into parking mode, dash cam need to have those information such as migratory routs, horizontal angle of car. But, if your car is parked on slope, dash cam may not be recognized that car is not stopped.
- Page 63 QUESTION AND ANSWER Q&A If dash cam is connected with constant power cable, is the car battery discharged at all? Our dash cam has a function that it is automatically power off when dash cam detects below voltage value from car’s engine. We can say that our dash cam is fully working against discharge of car battery.
- Page 64 QUESTION AND ANSWER Q&A Is dash cam used with AC adapter? Our products are only for car and it is not available to use with AC adapter. Dash cam is suddenly power off while driving. Users who are using dash cam with constant power cable often trouble with this kind of issue.
- Page 65 QUESTION AND ANSWER Q&A Dash cam is turn on at all. [Using Cigar jack Cigarette cable] a. Please make sure if cigar jack cable is correctly working or not. b. Confirm that power socket of cigar cable is correctly connected. c.
- Page 66 QUESTION AND ANSWER Q&A Why user should use genuine memory card. Every memory card from each manufacture has different NAND flash and internal controller. Our genuine memory card has been tested for long time in multiple test environments. Also, genuine memory card shows the best compatibility with our products.
- Page 67 QUESTION AND ANSWER Q&A How to use products stably. 1. Swipe dash cam lens regularly. Fingerprint and dust on lens are one of issue to make Blurred video quality. 2. Please check if you dash cam is properly working or not. It may not correctly work from errors such as memory card faulty and poor contact of cigar jack.
- Page 68 Q&A How long is the warranty period? The warranty period for GNET Dash camera is one year from the date of purchase. ※ The warranty period for accessories and Micro SD card : 3 months WARRANTY CARD GNET Dash cam...
- Page 69 It is different system depends on the manufacture. A. Samsung : My file → Device Internal storage → DCIM → GNET B. LG : File management → All files (or Internal storage → DCIM → GNET) C. I-phone : Camera roll(in the picture app)
- Page 70 Micro SD Card when it is first booted (when a formatted SD card is loaded). (1) When first use, insert the GNET Micro SD card to front camera (2) And connect the power cable (3) Takes 3~5 min to initialize and crease the file system when first use.
- Page 71 Q&A What is the G-Sensor? G sensor (Gravity Sensor), is a sensor that recognizes movement or tilting of an object due to gravitational action of the Earth. X axis: Shock and acceleration (+) and deceleration (-) in front and rear are displayed in red. Y axis: Shock from left (+) and right (-) side and left and right movement (left turn, right turn) are displayed in green.
- Page 72 Q&A What kind of recording mode GNET Dash cam have? We have 4 types of recording mode. - It starts recording when power is connected Normal Recording - Security LED flickers once every 2 seconds - If there is impact or shock, the REC LED will flicker and...
- Page 73 QUESTION AND ANSWER Q&A What is the LBP? It is equipped with the voltage management function which is installed to protect the battery of the customer who uses the LBP and the dash camera. LBP is the implication of Low Battery Power. The dash camera is a function that protects the battery of the customer by cutting off...
- Page 74 QUESTION AND ANSWER Q&A What is the Parking mode ? Parking mode means that if you do not drive the car and the parking condition to record and store for a long time. In the case of a product which uses a 3-wire constant power cable, if the ACC power is cut off...
- Page 75 QUESTION AND ANSWER Q&A How can I change the time of device without LCD screen ? In PC VIEWER, you can enter the Setting > System > Time Setting as below...
- Page 76 QUESTION AND ANSWER Q&A My smartphone can not be connected with dashboard camera. Depending on the smartphone settings, some smartphones may be disconnected due to weak Internet signals. This is not a problem with the product or smartphone application, please refer to the solution below. How to check Wi-Fi connection 1.
- Page 77 QUESTION AND ANSWER Q&A How to use direct power cable ( 3 Wired Type ) * Black cable : Ground * Red cable : ACC (Power source on when key ignition is in accessories or ON position.) * Yellow cable : VCC (Continued power source.) 1.
- Page 78 QUESTION AND ANSWER Q&A 2. If you don't want to use continued recording of dash cam. when turn off ignition Black cable(Ground): It should connect to ground in car Twist Yellow cable(VCC) with Red cable(ACC) as below a picture. Twisted cable should connect to power supply of fuse which is operated. when turn on ignition (ex : cigar light fuse etc)
- Page 79 → only the power LED is turned on and DASHCAM is not working normally, send the problem DASHCAM to GNET. Video input error After checking whether the front camera or the rear camera is due to a bad image sensor, send the DASHCAM in question to GNET.
- Page 80 Check whether the PC is recognized or not, check the operation after reinserting the SD card, contact us for usage time, and receive a replacement product within 3 months. How to connect your smartphone to Wi-Fi 1. Wi-Fi dongle is used after purchase 3. Install GNET app...
- Page 81 At this time, the voice prompt 'Registered standby mode' appears (For models without LCD screen, press WI-FI button) 4. Run GNET app of dashcam registration window and click ” Yes” button 5. Select and connect the model image you are using...
- Page 82 1ch models : GN700, G-BLACK 2ch models : G-ON, G-ON2, N2, X2, L2, GDR, IRONMAN, MATMAN, GK, G-STYX, N2I, N2T, X2I, X2T 3ch models : G-ON3, G-STYX, X3I, GT700 3CH 4ch models : CP440, GT700 4CH 2)Description of LBP Our dashcam seems to have rebooted the LBP function to protect the car battery.
- Page 83 TROUBLE SHOOTING Vehicle battery discharge 1. Always-on connection check 2. Confirm whether it is a 2-wire or 3-wire model (2-wire model does not apply to items 2 and 3 below) 3. Cause of discharge ① In winter, when the weather is cold and the battery performance of the car is weakened, the car may be discharged when the driving time is short.
- Page 84 TROUBLE SHOOTING TROUBLE SHOOTING Recovery Inquiry 1. Saved time Deleted videos cannot be restored because they are overwritten sequentially. 2. If the user checks the SD card on the computer and accidentally deletes the jdf file in the data / event folder (or if for some reason) ①...
- Page 85 WARRANTY CARD GNET Dash cam G-ON3 Product Model Serial Number Purchasing Date Name Consumer Information Address Seller / Vendor Dash Camera : 1 Year Warranty Period Micro SD card : 3 months * If you require product repair, service and/or support,...
