Model 306 Start Up Instructions

Before using the Model 306 in your application, please perform the following steps to establish the

baseline performance of the instrument. By following this procedure when the instrument is first

received, the user will be able to verify that the instrument has been setup correctly and, in the

future, will be able to determine if there is any loss in instrument performance after prolonged

periods of usage.

1. Connect Power Source. Use either the supplied 12 VDC power supply or a 12V battery.

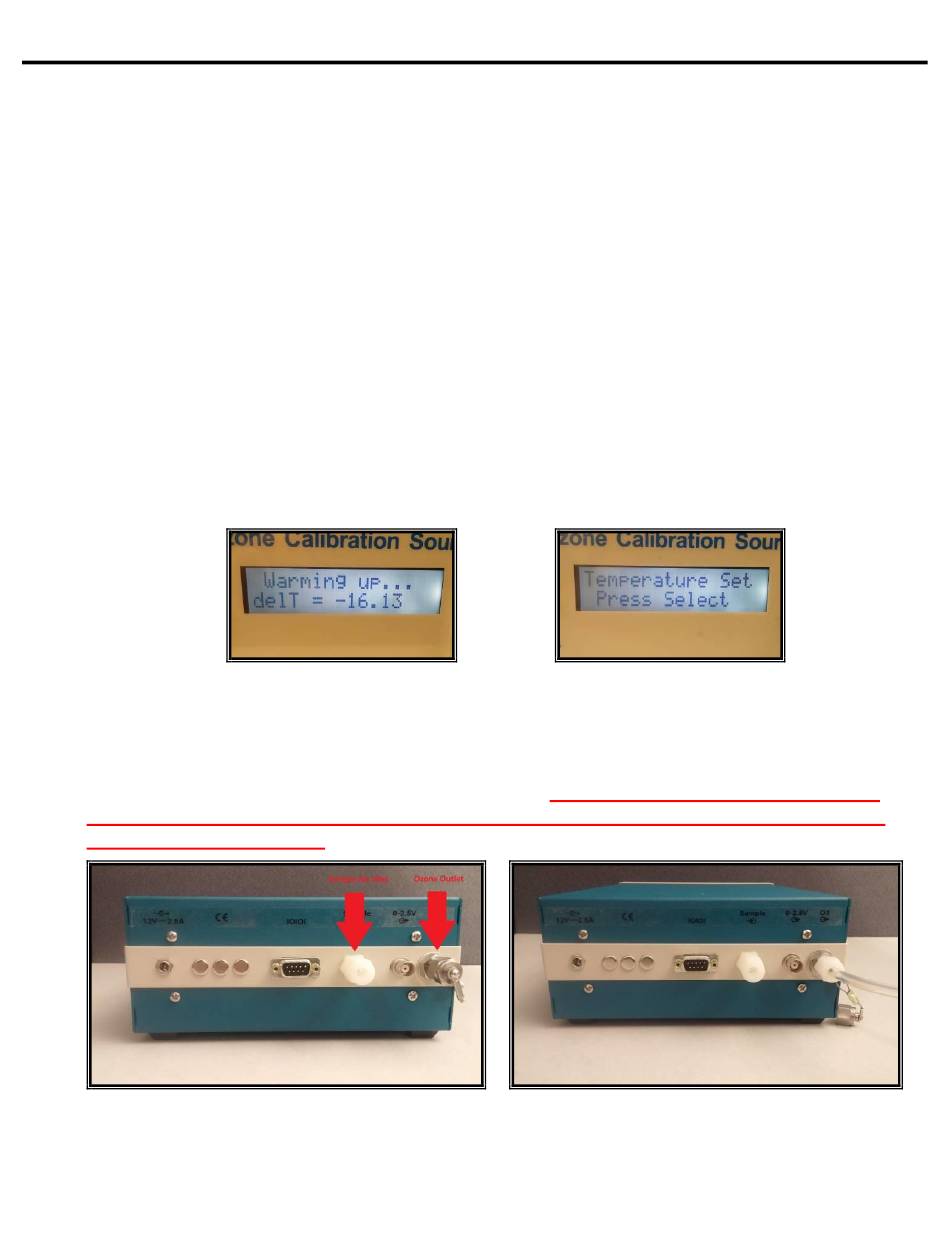

2. Power ON the instrument. "Warming Up" is displayed in LCD. The amount of time the warm

up time takes is dependent on ambient temperature. Please allow the instrument to warm

up fully before operation. LCD will display "Temperature Set" when ready.

3. Connect to outlet. Locate the stainless steel bulkhead on the rear of the instrument. This

bulkhead is the outlet for the ozone produced by the model 306. It is to this bulkhead that

you will want to connect the provided connection tubing. Attaching the desired ozone

monitor to the other end of the connection tubing.

connection tubing as the model 306 has an internal overflow T to compensate for

any flow rate differential.

2B Technologies

2100Central Ave Suite 105, Boulder, Colorado 80301 USA

Phone 303-273-0559 Fax 303-277-1812 http://www.twobtech.com

PLEASE READ BEFORE ATTEMPTING

ANY MEASURMENTS WITH THE MODEL 306

DO NOT add an overflow T on the

Model 306 Quick Start Guide Rev B

Table of Contents

Need help?

Do you have a question about the 306 and is the answer not in the manual?

Page 1 3. Connect to outlet. Locate the stainless steel bulkhead on the rear of the instrument. This bulkhead is the outlet for the ozone produced by the model 306. It is to this bulkhead that you will want to connect the provided connection tubing. Attaching the desired ozone monitor to the other end of the connection tubing.
Page 2 The Model 306 is designed for this type of installation. Inside the Model 306, an air pump maintains a total flow of ~ 3 L/min through the ozone generator. Any portion of the total flow that is not being drawn into the user’s equipment is vented through an internal ozone scrubber and vented inside the enclosure...
Page 3 In the case that the equipment is not very restrictive and is near ambient pressure, the Model 306 may provide enough flow (up to ~ 1 L/min) and will not need any additional modification. If more flow is needed (up to ~ 3 L/min) or the chamber/equipment is fairly flow-restrictive, a needle valve can be installed on the outlet of the internal overflow scrubber (see Figure 2).
Page 4 The Model 306 has proven performance over many years and in a variety of applications. We are confident that these instruments will perform well in your application. Thank you for choosing the 2B Technologies Model 306 Ozone Calibration Source! The 2B Technologies Team...
