- Page 1 CLMD12 12 Channel DC Load Controller Module Quick Start Guide P/N: M003138 Rev.1.2 (3/2021) Copyright ©2021 Carling Technologies, Inc. 60 Johnson Ave. Plainville, CT 06062 USA All Rights Reserved https://www.maretron.com...
- Page 2 This Page Intentionally Left Blank...

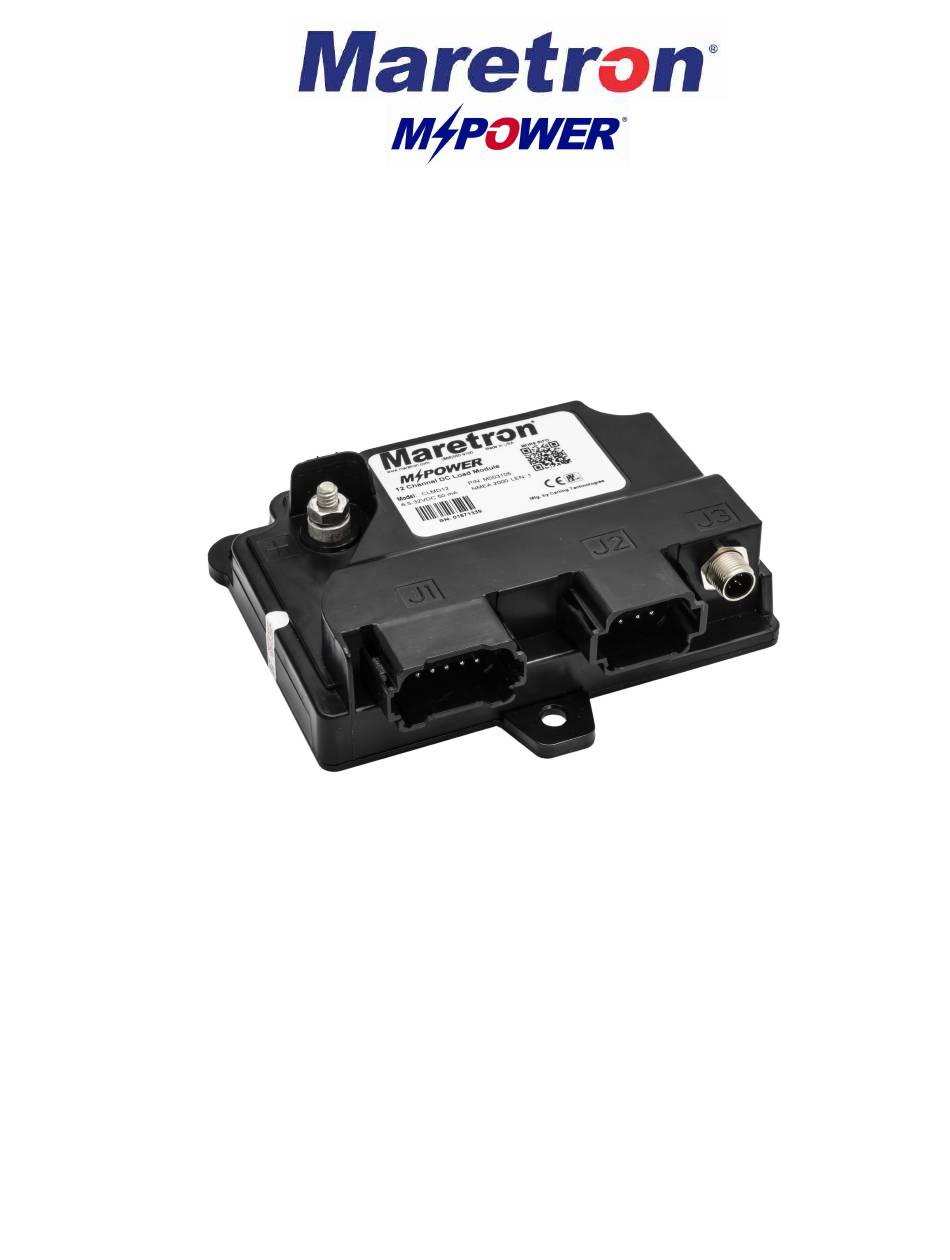

- Page 3 The CLMD12 features 75A total current switching capacity using 12 PWM capable Electronic Circuit Breakers (ECBs) housed inside an IP67, Ignition Protected casing. Configure the CLMD12 using Maretron N2KAnalyzer® installed on a PC and an IPG100 or USB100 connected to the NMEA 2000® Network.
- Page 4 Out of Box Configuration details in this Quick Start Guide for information on the CLMD12's default configuration and how this configuration will behave when a CLMD12 is combined on the same network as Maretron CKM12 or Maretron VMM6 also containing their own default Out of Box Configuration.
- Page 5 Move "J1" Connector from CLMD12 to CBMD12 to Enable Circuit Bypass Switches on CBMD12 Module Connect to CLMD12 Using Maretron's CLMD12 Accessory Harnesses (Terminal Strip not Included) Or Connect to CLMD12 Using Deutsch Brand Plugs in Your Own Vessel Harnessing...
- Page 6 TOUCH SCREEN CONTROL AND MONITOR AND MONITOR Easily Expand Your MPower System With Another CLMD12 or Other Choose From a Variety of Maretron MPower Devices Control Devices for the CLMD12 MARETRON CLMD12 MORE INFO 12 Channel DC Load Module Model: CLMD12 P/N: M000000 6.5-32VDC 50mA NMEA 2000 LEN: 1...
- Page 7 CLMD12 Out of Box Configuration Module Details: CLMD12 MORE INFO 12 Channel DC Load Module Model: CLMD12 P/N: M000000 6.5-32VDC 50mA NMEA 2000 LEN: 1 BARCODE S/N: 0000000 Pin: Pin: Output Mode: 5A Outputs: Inputs: J1-8 J2-2 Breaker 1 Toggle Breaker 3 / (5A) Toggle On / Off DC(-) or DC(+)
- Page 8 Page 6 P/N: M003138 Rev.1.2...
-
Page 9: Technical Support
12 Channel DC Load Controller Module For Additional Information About Your CLMD12 Scan this QR Code: Technical Support: If you require technical support for Maretron products, you can reach us in any of the following ways: Telephone: 1-866-550-9100 Fax: 1-602-861-1777 E-mail: marine.support@carlingtech.com...
