Autool SDT-106 Quick Start Manual

Hide thumbs Also See for SDT-106:

Working indicator

I. Packing List.

II.

1. Main Unit

2. Hook (with hand-tighten nuts)

3. Rubber stopples (with serial specification)

4. Taper stopple

5. Taper pipe

6. 30ml oil bottle

7. User manual

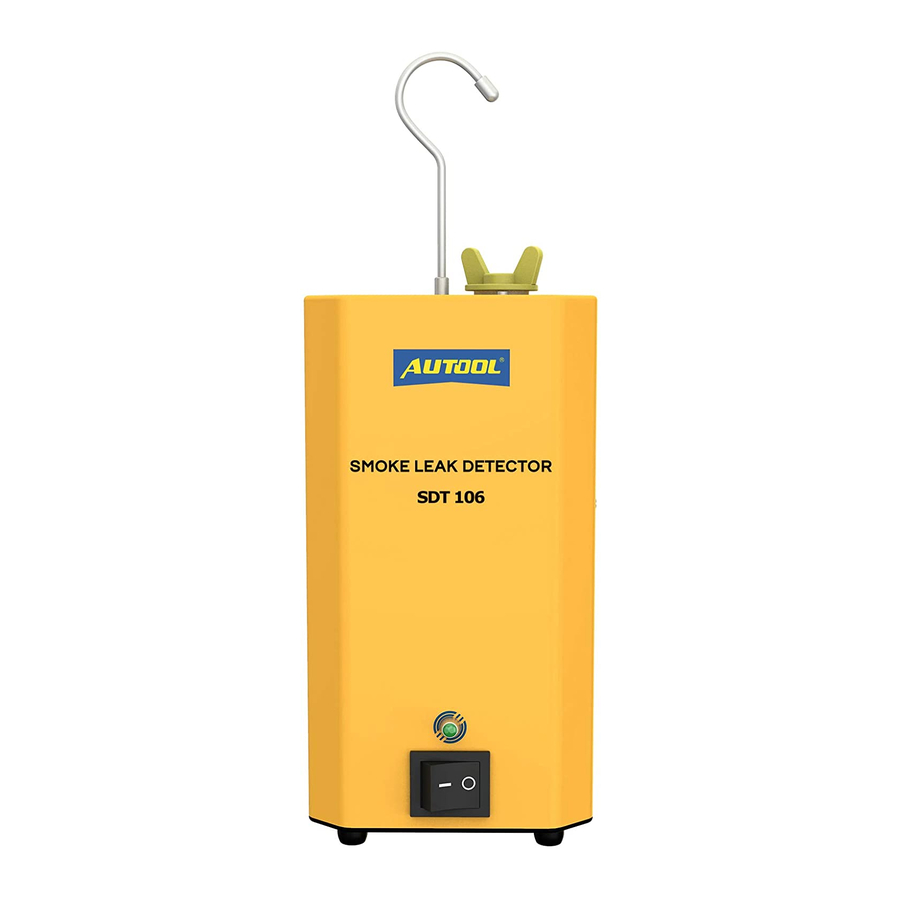

SDT-106 is designed for detecting the leakage of pipe systems on cars,

motorcycles, such as fuel pipe, air intake system and cooling tank.

SDT-106 is for all pipe systems except EVAP.

Hook: To hang the detector when detecting

Working Indicator: It is lit when the detector works

Power Switch: Power it on, and the detector works

Hook

Power switch

Oil filler

Table of Contents

Do you have a question about the SDT-106 and is the answer not in the manual?

Page 1 6. 30ml oil bottle 7. User manual II. Main Unit Structure: SDT-106 is designed for detecting the leakage of pipe systems on cars, motorcycles, such as fuel pipe, air intake system and cooling tank. SDT-106 is for all pipe systems except EVAP.
Page 2 Smoke output tube: The smoke outlet which connecting with detection port Power clip: To connect with vehicle battery. The voltage is DC12V. Cautions: 1. When you use this detector the first time, please fill 20-30ml oil, not beyond this range. 2.
Page 3 V. Product Information Power: DC12V, vehicle battery Smoke output value: 6l/min Built-in air supply...
