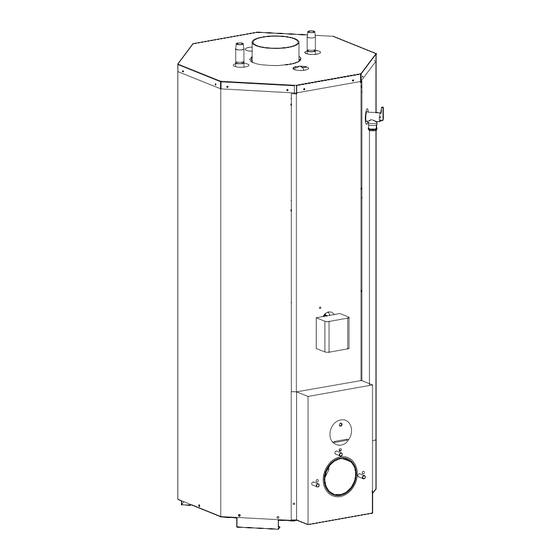

DOMESTIC WATER HEATER OIL-FIRED Models: CMO32 CMO50 DNS-1102 Rev. A CMO50 CMO32 Caution: Do not tamper with the unit or its INSTALLER / SERVICE TECHNICIAN: controls. USE THE INFORMATION IN THIS MANUAL FOR THE INSTALLATION Call a qualified service technician.
PART 1 INSTALLATION, OPERATION AND MAINTENANCE Before calling for service, be sure to have the SAFETY REGULATIONS information page of your manual close by, in SAFETY LABELING AND WARNING SIGNS order to be able to provide the contractor with the required information, such as the model and The words DANGER, WARNING AND CAUTION are serial numbers of the water heater.
Page 3
WARNING cold water inlet, as they contain a plastic sleeve inside. Pressure relief valves are installed on models CM-32, CMO32 and CMO50. An oil-fired unit shall be connected to a flue having sufficient draft at all times to assure FLUE PIPE proper operation of the unit.
Page 4
The field 5,000 BTU/h is required and must be free of any supplied wiring should be connected to the top of the obstruction. aquastat on models CM-32, CMO32 and CMO50. 20) FUEL OIL 15) INSTALLING THE OIL BURNER WARNING The nozzle is installed on the burner.
25.1) BLOCKED VENT SHUT-OFF (BVSO) NOTE: Do not attempt to start the burner when excess oil has accumulated, the combustion chamber CLEANING is full of vapour or when it is hot. For continued safe operation, the Blocked Vent Shut-Off System (BVSO) is required to be inspected and maintained annually by a WARNING qualified technician.
27) COMBUSTION CHAMBER REPLACEMENT To replace the combustion chamber, turn off the power to the unit. Remove the burner and the access panel. Cut the insulation and unscrew outer liner. Take off the insulation pad and remove the damaged chamber by sliding it out. Install the new chamber. Re-install insulation, outer liner, access panel and burner.
PART 2 INFORMATION Model: Serial number: Installation date: Service telephone - Day: Night: Dealer name and address: START-UP TEST RESULTS Stack temp.: Firing rate: Smoke: Draft - at stack: Test performed by:...
PARTS LIST Model : CMO32 B50024 Rev. D ITEM PART # DESCRIPTION COMMENTS B10373-01 TANK, REPLACEMENT B10093 REFRACTORY HEAT CHAMBER B10361 HEAT CHAMBER AND INSULATION ASSEMBLY (includes items 2, 3, 4, 5, 9 & 10) B00619-53 INSULATION B10072 FLOOR B10083...
Page 12
PARTS LIST Model : CMO50 B50025 Rev. D ITEM PART # DESCRIPTION COMMENTS B10373-03 TANK, REPLACEMENT G14G007 GASKET, 3-3/4"OD 1" ID LDPE WHITE G11F002 TEMPERATURE/PRESSURE VALVE 150 PSI 3/4" G99Z019 OVERFLOW TUBE, 3/4"NPT x 42" B10328 WELL. MODIFIED B10365-04 FRONT PANEL ASSEMBLY R02G003 DOUBLE AQUASTAT B00403...
Page 13
CHAUFFE-EAU DOMESTIQUE AU MAZOUT Modèles : CMO32 CMO50 DNS-1102 Rev. A CMO50 CMO32 Attention : Ne pas altérer votre unité ou INSTALLATEUR / TECHNICIEN : ses contrôles. Appeler un technicien qualifié. UTILISER RENSEIGNEMENTS DANS MANUEL POUR L’INSTALLATION ET L’ENTRETIEN DE L’APPAREIL ET GARDER LE Fabriqué...
SECTION 1 INSTALLATION, OPÉRATION ET ENTRETIEN e) Demander à l'installateur d'identifier et de vous 1.0 RÈGLES DE SÉCURITÉ informer sur les items suivants : SIGNALISATION DANGER, MISE EN GARDE L'interrupteur d'alimentation électrique ; ET AVERTISSMENT ii) La valve d'arrêt sur le réservoir de mazout ; iii) Le filtre de mazout sur le conduit (comment Comprenez bien la portée des mots suivants : le changer une fois par année) ;...
Page 15
48°C (120°F) et 60°C (140°F). Cette cheminée. dernière est la limite maximum pour les modèles CM- 32, CMO32 et CMO50. Si requis, ajuster le côté haute- RÉGULATEUR DE TIRE limite à une température de 20°F supérieure à celle du Le régulateur doit être installé...
Page 16
à par 5000 BTU/h libre de toute obstruction, et cette immersion pour les modèles CM-32, CMO32 et CMO50. ouverture doit être protégée par une grille sous forme de registre dans le but de prévenir la pénétration de la neige INSTALLATION DU BRÛLEUR...
7. Activer l’alimentation électrique au brûleur: le brûleur ENTRETIEN devrait fonctionner ; 1. Le chauffe-eau et le tuyau central de celui-ci 8. Purgez la ligne d'huile par la soupape de purge à la devraient être nettoyés tous les ans ; pompe (voir les instructions incluses avec le 2.
CHAMBRE DE REMPLACEMENT ÉPURATION Pour le remplacement de la chambre de combustion, 1. Ouvrez le circuit électrique de l'unité ; ouvrez le circuit électrique du chauffe-eau. Enlevez le 2. Fermez le robinet d'arrêt du réservoir d'huile ; brûleur ainsi que la porte, dévissez de chaque côté les 3.
Page 22
LISTE DE PIÈCES CMO32 B50024 Rev. D ITEM No DESS DESCRIPTION COMMENTAIRES B10373-01 PIECE REMPLACEMENT RESERVOIR B10093 CHAMBRE EN REFRACTAIRE B10361 ASS FOYER ET ISOLATION (comprend items 2, 3, 4, 5, 9 & 10) B00619-53 ISOLATION B10072 PLANCHER B10083 COLLET D'INSERTION...
Page 23
LISTE DE PIÈCES CMO50 B50025 Rev. D ITEM No DESS DESCRIPTION COMMENTAIRES B10373-03 PIECE REMPLACEMENT RESERVOIR G14G007 GARNITURE 3-3/4"OD 1" ID LDPE BLANC G11F002 VALVE TEMPERATURE/PRESSION 150 PSI 3/4" G99Z019 TUBE TROP PLEIN 3/4"NPT x 42" B10328 PUIT DE SONDE MODIFIE B10365-04 ASS PANNEAU DEVANT R02G003...
