Zamel RZB-01 Quick Manual

CAUTION: Every transmitter can cooperate with ROP-01 in a different mode,
depending on how they were added to the device. One transmitter can be added
during one programming cycle. Full memory is signalled with pulsating LED red
diode.
TIME PROGRAMMING
Press PROG push-button of ROP-01 device for a longer time till LED red diode
switches on (constant signal). Next release PROG push-button. Wait (for about 5 sec-
onds) till LED red diode switches on (first signal pulsates, next the signal is constant).
Press PROG push-button of ROP-01 device and then release it. LED red diode
switches off and then switches on (signal pulsates). Every LED diode pulse equals
1 second.
After the adjusted time is finished (the number of LED red diode flashes) press
PROG push-button and then release it - TIME IS ADDED.
Maximum time is 18 hours.
RADIO TRANSMITTERS DELETION
Press PROG push-button of ROP-01 device for a longer time.
After 5 seconds LED red diode switches on (signal pulsates) and then it switches
off.
Release the push-button in ROP-01 - MEMORY IS DELETED.
COOPERATION AND OPERATING RANGE
Symbol ROP-01 ROP-02 ROB-01 SRP-02 SRP-03 RWG-01 RWL-01 ROM-01 ROM-10 RDP-01 RTN-01
RNK-02 180 m 200 m 200 m 200 m
RNK-04 180 m 200 m 200 m 200 m
P-256/8 230 m 250 m 250 m 250 m
P-257/4 (2) 180 m 200 m 200 m 200 m
RNM-10 230 m 250 m 250 m 250 m
RNP-01 160 m 180 m 180 m 180 m
RNP-02 160 m 180 m 180 m 180 m
RNL-01 160 m 180 m 180 m lack*
RTN-01
200 m 200 m 200 m 200 m
RCR-01 160 m 180 m 180 m lack*
RTI-01 160 m 180 m 180 m 180 m
RXM-01 230 m 250 m 250 m 250 m
* 1-channel transmitters do not cooperate with roller blind controllers
CAUTION: The given range concerns open area - an ideal condition without any
natural or artificial obstacles. If there are some obstacles between a transmitter
and a receiver, it is advisable to decrease the range according to: wood and plas-
ter: from 5 to 20 %, bricks: from 10 to 40 %, reinforced concrete: from 40 to 80 %,
metal: from 90 to 100%, glass: from 10 to 20 %, Over- and underground medium
and high electrical power lines, radio and television transmitters, GSM transmit-
ters set close to a device system have also a negative influence on the range.
200 m 250 m 180 m 250 m 250 m 180 m
200 m 250 m 180 m 250 m 250 m 180 m
250 m 300 m 200 m 300 m 300 m 230 m
200 m 250 m 180 m 250 m 250 m 180 m
250 m 300 m 200 m 300 m 300 m 230 m
180 m 200 m 160 m 200 m 200 m 160 m
180 m 200 m 160 m 200 m 200 m 160 m
lack* 200 m 160 m 200 m 200 m 160 m
200 m 250 m 200 m 250 m 250 m 200 m
lack* 200 m 160 m 200 m 200 m 160 m
180 m 200 m 160 m 200 m 200 m 160 m
250 m 300 m 200 m 300 m 300 m 230 m

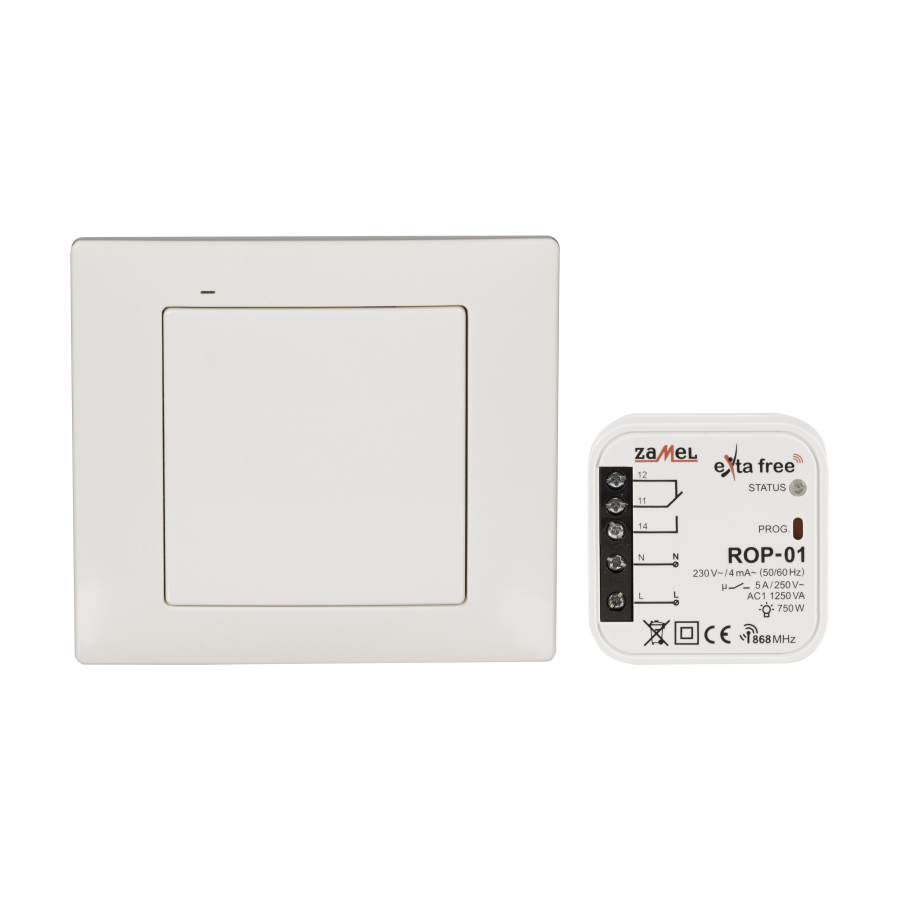

WIRELESS CONTROL SET - LIGHTING
RZB-01
TECHNICAL DATA
Input (supply) terminals:
Input rated voltage:
Battery life:
Input voltage tolerance:
Nominal frequency:
Nominal power consumption:
Number of operation modes:
Number of channels:
Transmission:
Transmission way:
Maximum number of transmitters:
Time adjustment:
Optical signalling:
Relay output clamps:
Relay contacts parameters:
250 m
Number of terminal clamps:
250 m
Section of connecting cables:
300 m
Ambient temperature range:
250 m
Operating position:
300 m
200 m
Casing mounting:
200 m
Casing protection degree:
200 m
Protection level:
250 m
Overvoltage category:
200 m
Pollution degree:
200 m
Surge voltage:
300 m
Dimensions:
Reference standard:
RNK-02
-
3 V (battery CR2032)
3 ÷ 5 years
-
-
-
-
2
radio 868,32 MHz
unidirectional
Coding: addressing transmission
-
Range: up to 250 m in the open air up to 230 m in the open air
- 1 с ÷ 18 hours (every second)
LED red diode
-
1NO/NC 5A / 250V AC AC1
-
-
-
-10 ÷ +55
free
wall plugs, double-sided
installation cable box Ø60 mm
adhesive tape
IP20 (EN 60529)
III
-
2
-
90 x 80 x 11,5 mm
Weight: 0,038 kg
PN-EN 60669, PN-EN 60950
PN-ETSI EN 300 220-1
PN-ETSI EN 300 220-2
ROP-01
L, N
230 V AC
-
-15 ÷ +10 %
50 / 60 Hz
0,29 W
5
1
32
12, 11, 14
1250 VA
5
up to 2,5 mm
2
C
o
II
II
1 kV (EN 61000-4-5)
47,5 x 47,5 x 20 mm
0,043 kg
PN-EN 61000
