Summary of Contents for Meiji Techno MC Series

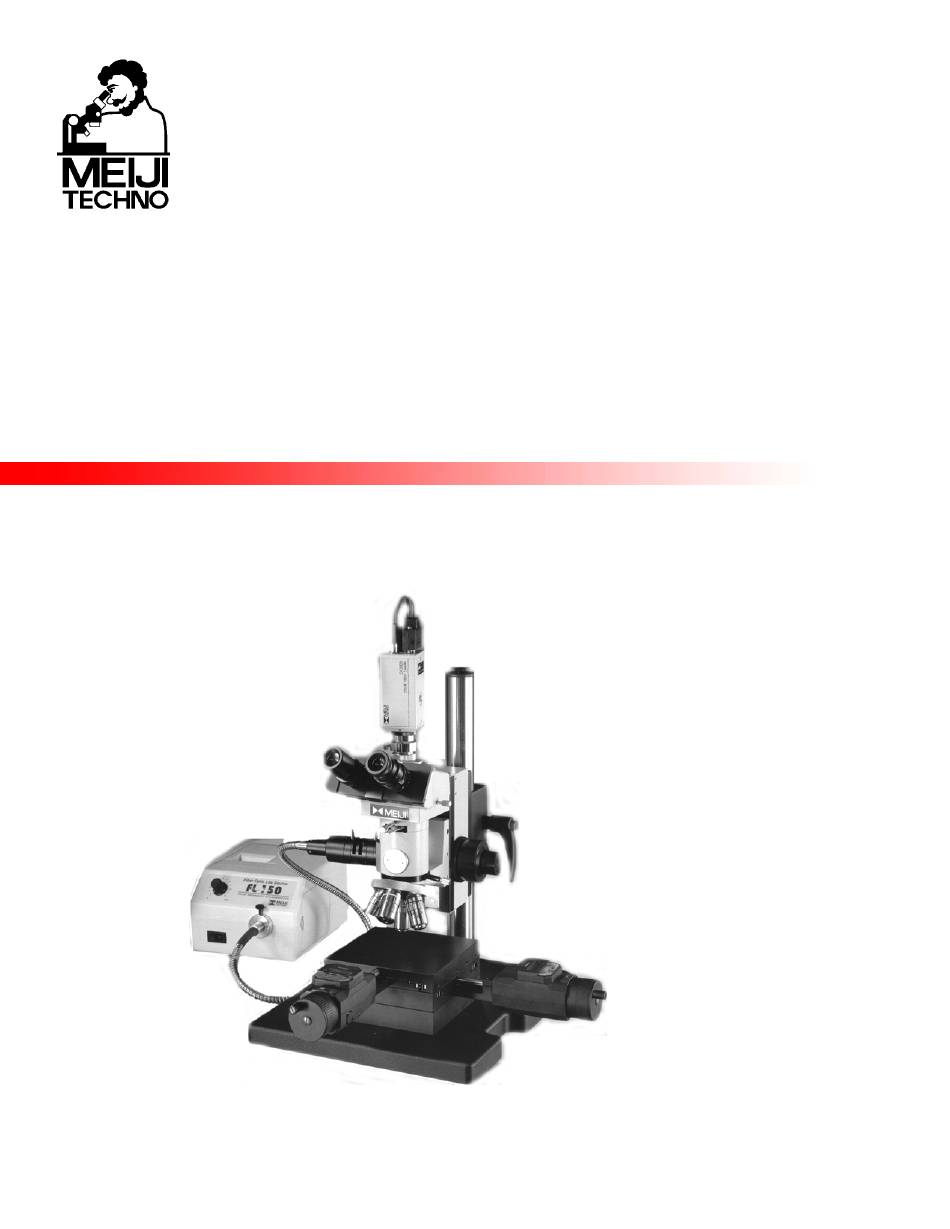

  • Page 1 MC Series Measurement Microscope Instruction Manual...

  • Page 2: Table Of Contents

    Table of Contents 1.0 Introduction 1.1 Microscope Features 1.2 General Safety Guidelines 1.3 Intended Product Use Statement 1.4 Handling the microscope 1.5 Warranty Notes 2.0 The Microscope and its Components 2.1 Installation Site 2.2 Unpacking 2.3 Microscope Set Up 2.4 Adjusting Interpupillary Distance 3.0 Microscope Operation 3.1 Incident Light Operation –...

  • Page 3: Introduction

    X and Y directions. Z-axis measurement is accomplished with another optional micrometer attached to the microscope focus block. Meiji’s MC Series is well suited for a wide variety of metallurgical or industrial observation and measurement applications as well as high resolution video microscopy.

  • Page 4: General Safety Guidelines

    In no event shall Meiji Techno be liable to any person or entity for any incidental, indirect or consequential damages, arising out of or in connection with the use or performance of a modified or altered product.
  • Page 5 No charge will be made for labor or materials with respect to defects covered by this warranty, provided all repair work is done by Meiji Techno. This warranty does not cover expenses incurred in the removal or reinstallation of any instrument or instruments, whether or not proven defective.
  • Page 6 Meiji Techno’s convenience. In some cases, requests for warranty service are received which are not justified. In these cases, Meiji Techno will provide an explanation for non- warranty action.

  • Page 7: The Microscope And Its Components

    2.0 The Microscope and its Components The image below designates the main components of the MC Series: 1. Optional Analog CCD Camera (CK3900N) 2. Optional “C-Mount” (MA151/10) 3. Eyepieces 10X (MA406 + MA413CF) 4. Phototube Control Lever 5. Trinocular Head 6.

  • Page 8: Installation Site

    2.1 Installation Site The microscope should be operated in a room with as little dust and debris as practically possible. Keep your instrument away from solvents, chemical fumes and excessive humidity. Also try to avoid big swings in ambient temperature, direct sunlight and vibration as they can affect measurements and instrument performance.

  • Page 9: Microscope Set Up

    2.3 Microscope Set Up • As a first step, remove all components from the shipping container and remove the packing materials and place the microscope frame on a stable work surface. • Loosen the clamp screw on the microscope limb and install the vertical illuminator (MA806).

  • Page 10: Adjusting Interpupillary Distance

    2.4 Adjusting Interpupillary Distance The Interpupillary Distance is essentially the distance between your two pupils expressed in millimeters. When set correctly, one will see one uniform round field of view or FOV. The adjustment is made by simply pulling apart or pushing together the eyetubes until a uniform round field is achieved. Make note of the number marked on the viewing head so you can repeat the setting later.
  • Page 11 Your MC microscope is a precision instrument designed to last a lifetime. Always handle your microscope with care and avoid abrupt motion, vibration and shock. Do not install any bulb in your instrument other than ones designated by Meiji Techno: FL150/70 21V 150W Halogen...

  • Page 12: Incident Light Operation - Brightfield

    • Incorrect components inadvertently installed • Components not mounted flush (Vertical Illuminator to microscope frame, etc.) • Dirty or smudged optics MC Series S.Plan Metallurgical Brightfield Objectives Brightfield Objectives – Plan Episcopic - Infinity Corrected - F = 200mm S.Plan M5X objective, NA: 0.10,...

  • Page 13: Using The Polarizer / Slide-In Analyzer

    3.3 Using the Polarizer Polarizer For certain specimens, the use of polarized light will enhance the contrast and facilitate viewing of difficult to see object features. The polarizing filter is engaged by dropping it into one of the filter slots located along the top of the illuminator tube as shown in the drawing below.

  • Page 14: Photomicrography With 35Mm Slr And Digital Slr Cameras

    3.4 Photomicrography with 35mm SLR and Digital SLR Cameras The MC Series microscopes can have a trinocular tube on top of the head for use in photomicroscopy. In order to secure a 35mm SLR camera body to the trinocular or photo tube, an optional camera attachment tube (MA150/50 or MA150/60) will need to be used with the corresponding T2 Adapter Ring that matches the camera to be used.

  • Page 15: Photomicrography With Digital Still Cameras

    3.5 Photomicrography with Digital Still Cameras In order to mount a consumer grade digital camera to a MC Series microscope, an optional camera adapter will be needed. The table below shows the different cameras that can be used and their corresponding adapter part number. Some adapters have three part...
  • Page 16 3000Z, 3100Z MD-M1A MD-M1A MD-M1A MD-M1A MA151/30 MA151/30 MA151/40 MA151/50 Fuji Finepix MA151/30/81 MA151/30/81 MA151/40/80 MA151/45/80 MA151/50/80 S602, 4900Z, 6900Z, S3000, S5000, S5200, S5600, S7000 (52mm) (52mm) (52mm) (52mm) HP Photo Smart AD5552FBLK AD5552FBLK AD5552FBLK AD5552FBLK 850, 945 MD-M1A MD-M1A MD-M1A MD-M1A MA151/30...
  • Page 17 MA151/50 (52mm) (52mm) (52mm) (52mm) P06366 P06366 P06366 P06366 Olympus Camedia MD-M1A MD-M1A MD-M1A MD-M1A C-5000, SP310, SP350 MA151/30 MA151/30 MA151/40 MA151/50 Panasonic (52mm) (52mm) (52mm) (52mm) DMC-FZ10 MD-M1A MD-M1A MD-M1A MD-M1A DMC-FZ15 MA151/30 MA151/30 MA151/40 MA151/50 DMC-FZ20 Sony DSC-S70 DSC-S75 MA151/30/91 MA151/30/91...

  • Page 18: Connecting A Video Or Other Camera That Uses A "C" Type Mount

    3.6 Connecting a Video or Other Camera that has a “C” type mount In order to attach a camera that employs a standard “C” type camera mount to a MC Series microscope, one will need a trinocular head model with one of the below listed “C- mount”...

  • Page 19: Maintenance And Cleaning

    4.0 Maintenance and Cleaning • Disconnect the power cord on your equipment prior to performing cleaning, maintenance or repair. • Keep electrical components away from moisture or humidity. • In warm humid climates, take special care to prevent your equipment from exposure to fungal growth by using desiccant in an airtight storage container or by other means.
  • Page 20 Use a soft brush or lint-free cotton cloth to removed dust and loose particles. For tough dirt, use a soft lint-free cotton cloth moistened with distilled water. If that fails, try using medical or reagent grade isopropyl alcohol. Cleaning the Objectives Objectives should NEVER be disassembled for cleaning or for any other reason! We do not advise cleaning the inside surfaces of objectives or eyepieces.

  • Page 21: Troubleshooting

    5.0 Troubleshooting Meiji Techno products are manufactured exclusively in Japan under ISO9001 manufacturing standards. However, if you ever have any difficulty with any Meiji product, feel free to contact us at: MEIJI TECHNO CO., LTD. Phone: 049-259-0111 322-1, Chikumazawa, Fax:...
  • Page 22 5.1 Replacing the mains fuse on the illuminator power supply ALWAYS DISCONNECT YOUR EQUIPMENT BEFORE DOING ANY REPAIR. Location of Mains Fuse The mains fuse of the FL150 Fiber Optic Illuminator s is located on the back panel of the device as shown. The mains fuse of the FT190 Fiber Optic Illuminator s is located on the back panel of the device as shown.
  • Page 23 Instructions to replace the mains fuse: • Turn the power switch to the off position. • Unplug the box from the wall outlet. • Use a small screwdriver to pry open the fuse cap from the fuse holder. • Remove the blown fuse from the fuse cap. •...
  • Page 24 5.3 Replacing the Halogen Lamp ALWAYS DISCONNECT YOUR EQUIPMENT BEFORE DOING ANY REPAIR. Do not touch the glass envelope of the lamp during installation. Keep the protective sleeve or bag of the lamp during installation and remove it right after installation. LAMP AND LAMP HOUSING MAY BE HOT TO THE TOUCH.

  • Page 25: Storage

    6.0 Storage • Protect your microscope from dust after each use by covering your instrument with the protective dust cover that came with your microscope. • Store your microscope in a cabinet that has a stable temperature and low humidity. •...

  • Page 26: Accessories And Replacements Parts

    Techno products are available through our dealer network. Feel free to contact us a call so we may direct you to the closest authorized Meiji Techno Dealer in your area. Or call us toll free (800) 832-0060 Monday through Friday 9am – 5pm PST.
  • Page 27 MA279 Cross-line reticle, 19mm diameter MA280 10mm divided into 100 units, 19mm diameter MA281 5mm divided into 100 units, 19mm diameter MA282 10mm square divided into 400 units, 0.5mm square, 19mm diameter MA283 10mm square divided into 100 units, 1.0mm square, 19mm diameter MA539 Cross-line reticle with 0.1mm graduations, 19mm diameter MA253...

  • Page 28: Technical Descriptions

    8.0 Technical Descriptions Filters and Applications Filter Application ND50 Neutral Filter or ND Filter. Grey filters or neutral density filters are used to attenuate all frequencies of light equally resulting in preservation of color temperature. The ND50 filter would indicate a reduction of light transmission by 50 percent or a passage of light of 50 percent.
  • Page 29 Meiji Techno Co. Ltd. 100 Lauman Lane, Suite A, Hicksville, NY 11801 Tel: (877) 877-7274 | Fax: (516) 801-2046 Email: Info@nyscopes.com www.microscopeinternational.com...

This manual is also suitable for:

Mc-50Mc-45Mc-60Mc-40Mc-75
