Summary of Contents for Meiji Techno ML 8500 Series
- Page 1 JAPAN...

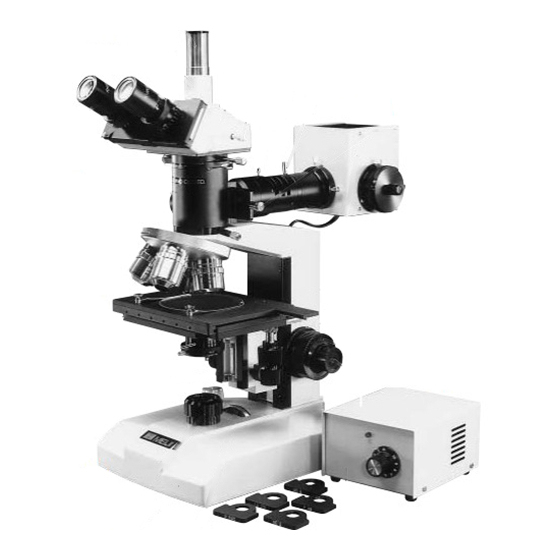

- Page 2 BINOCULAR BODY, INCLINED 30 PHOTO TUBE BEAM-SPLITTER LEVER ADJUSTMENT RING (a) Field Iris Control Lever (b) Filter slots DIOPTER ADJUSTMENT RING (c) Aperture Iris Control Lever ILLUMINATION EYEPIECES, SERECTOR KHW10X ANALYZER CONTROL LEVER VERTICAL ILLUMINATOR LIGHT SOURCE OBJECTIVE NOSEPIECE HOUSING FOR REFLECTED LIGHT OBJECTIVES ILLUMINATOR...
- Page 3 UNPACKING, ASSEMBLY, PREPARATION FOR USE UNPACKING All MEIJI TECHNO Microscopes are usually supplied in an expanded polystyrene, 2-part case and this should be used for storage, possible transport in the future, etc. If your order includes a wooden storage cabinet, release the fixing screws holding the limb and base from the cabinet and withdraw.
-
Page 4: Operating Instructions
OPERATING INSTRUCTIONS OPTICAL SET-UP AND BRIGHTFIELD ILLUMINATION After connecting the illuminator plug to the receptacle at the back of the microscope base, please follow as indicated below: [1] Turn on the illuminator. Place the specimen slide you wish to examine on the microscope stage and rotate the nosepiece to bring the 10X objective into position for focus. - Page 5 [7] After you have focused on the specimen, proceed as follows:- Field of view Move the sliders on which the two binocular eyepiece tubes are mounted in and out until the distance between them is exactly the same as the distance between the pupils of the observers eyes.
- Page 6 DARKFIELD ILLUMINATION SET UP The reflective Darkfield Illuminator is designed as shown here: As the above illustrates, the light does not pass the objective directly and illuminate the specimen with the light bundle inclined against the light axis, and observation is made possible only through scattered or refracted light.
-
Page 7: Transmitted Light Illumination
SLIDE-IN ANALYZER The Analyzer is mounted in an in-tube slider which moves the analyzer in and out of the optical path and rotates between 0 and 90 by the lever . When “in” and at 45 position, and with the Polarizing filter in position, these elements are said to be “crossed”... -
Page 8: Photography And Television
TENSION CONTROL The tension control knob is provided to allow the individual user to adjust the focus tension to his/her own preference. Tension may be increased by turning the knob with a counterclockwise motion. A lighter tension may be set by turning clockwise. PHOTOGRAPHY AND TELEVISION PHOTOGRAPHY Photographic documentation of microscope visual images is most conveniently achieved by using the... -
Page 9: Maintenance And Care
[3] Rotate the adjustment ring on the straight tube so as to set correctly for optimum conditions of simultaneous visual observation and photography. TELEVISION For television the MA151/10 C Mount should be used, threaded into your TV camera, then placed and adjusted on straight tube of your trinocular body. - Page 10 BULB REPLACEMENT ON TRANSMITTED LIGHT [1] Remove the socket block from the microscope base by unscrewing the two screws and pulling the backing plate clear of the instrument. Socket Block [2] After making certain the old bulb is cool to the touch, remove it by pulling straight out of its socket.
