Summary of Contents for Blaupunkt Honolulu CD50

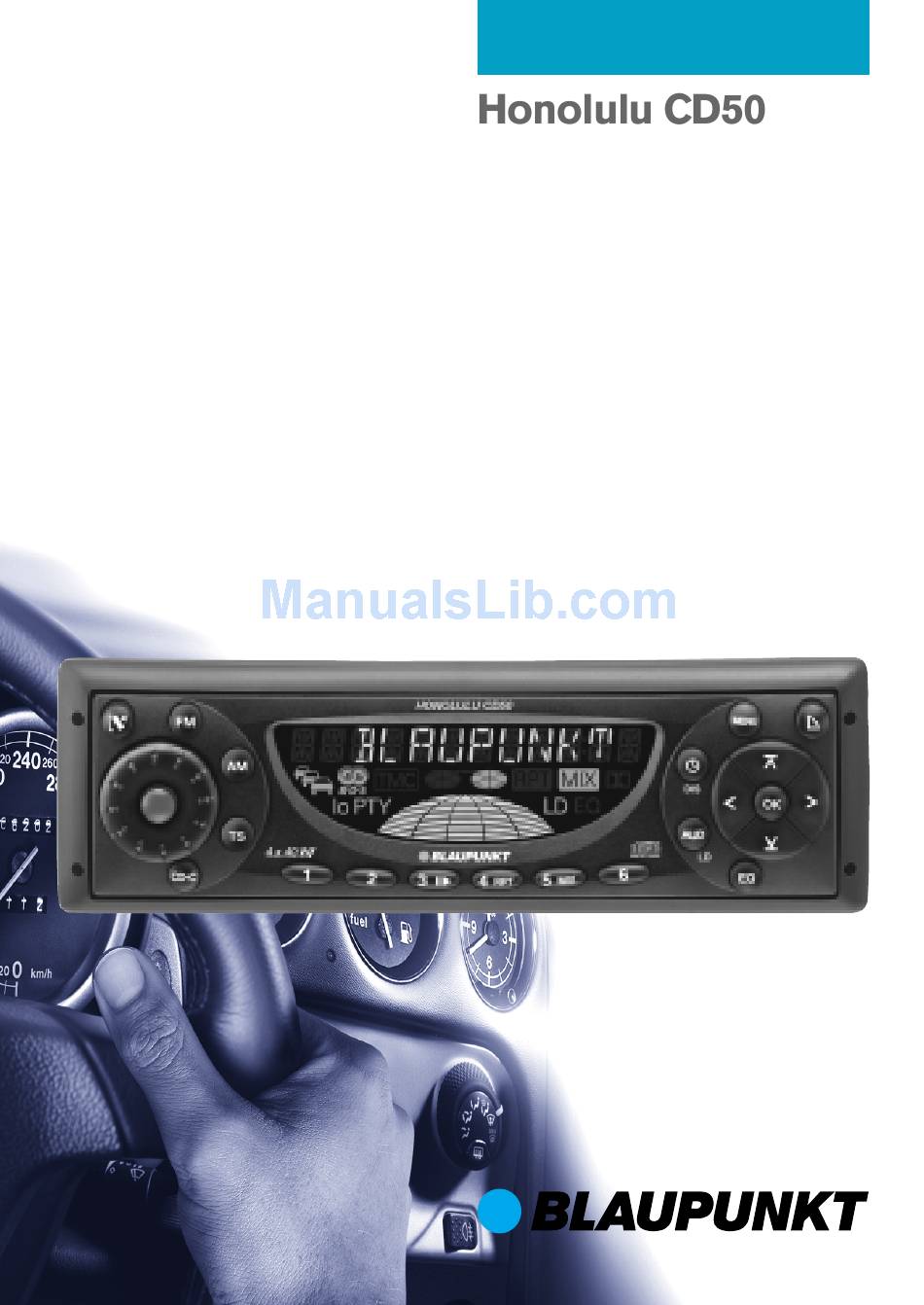

  • Page 1 Radio / CD Operating instructions...
  • Page 3 button to unlock release panel Volume control ON button, switches the unit on/off, mute FM button, selects the FM memory bank AM button, selects the AM waveband Display button, displays the time DIS, changes display contents MENU button, accesses the menu for basic settings button, opens the flip release panel...

  • Page 4: Table Of Contents

    Important information ... 6 Traffic safety ... 6 Installation ... 6 Accessories ... 6 Guarantee ... 6 International telephone information ... 6 Removable front panel ... 7 Theft protection system ... 7 Removing the operating panel ... 7 Replacing the operating panel ... 7 Switching the car audio system on/off ...

  • Page 5: Traffic Safety

    All Blaupunkt amplifiers can be used. The following CD changers can be con- nected directly: CDC A 06, CDC A 08, CDC A 072 and IDC A 09.
  • Page 6 To prevent your car audio system from being stolen, it has been equipped with a removable front panel (flip release panel). Without the front panel, the car audio system is useless to thieves. Protect your car audio system against theft and take the operating panel with you each time you leave the vehicle.
  • Page 7 The car audio system can be switched on/off in a number of ways. If the car audio system has been con- nected to your vehicle ignition, it is pos- sible to switch it on and off with the igni- tion. You can also switch the car audio sys- tem on when the ignition is switched off.

  • Page 8: Volume Control

    The car audio system volume can be adjusted to levels from 0 (off) to 66 (max- imum). To increase the volume, turn the volume control knob 2 to the right. To decrease the volume, turn the volume control knob 2 to the left. It is possible to adjust the volume at which the car audio system switches on.
  • Page 9 For a number of functions you will hear a beep if you press a key for longer than 2 seconds, e.g. if you want to store a radio station on a station preset. You can adjust the volume level of this beep. Press MENU 8.
  • Page 10 It is also possible to adjust the sensitiv- ity of the seek tuning function to tune the radio into stations with strong recep- tion signals only, or to those with weak- er reception signals as well. Press MENU 8. : repeatedly until Press “SENS”...
  • Page 11 SCAN will begin. “SCAN” will appear briefly in the display, followed by the flashing frequency of the radio station currently being scanned. Press OK ;. SCAN will end and the last station scanned will continue playing. Press MENU 8. : repeatedly until Press “SCANTIME”...

  • Page 12: Adjusting The Scan Time

    The CD player in this car audio system can be used to play conventional mu- sic CDs with a diameter of 12 cm. Danger of damage to the CD player! CD singles with a diameter of 8 cm and contour CDs (shape CDs) are not suitable for use with this CD play- We assume no liability for any dam- age done to the CD player resulting...
  • Page 13 To stop the SCAN function, press OK ;. The track currently scanned will contin- ue playing. To repeat the track currently play- ing, press 4 RPT >. “REPEAT TRCK” will appear briefly in the display, the RPT symbol will light up in the display.
  • Page 14 To repeat the track currently play- ing, press 4 RPT > briefly. “REPEAT TRCK” will appear briefly in the display, RPT will light up in the dis- play. To repeat the entire CD currently playing, press 4 RPT > again. “REPEAT DISC”...

  • Page 15: Clock

    To display the time briefly, press / DIS 7 briefly. To set the time, press MENU 8. “MENU” will appear in the display. : until “CLOCKSET” ap- Press pears in the display. Press The time will appear in the display. The minutes will flash and can be altered.
  • Page 16 To adjust the bass, press AUD / LD =. “BASS” will appear in the display. : to alter the bass. Press To adjust the treble, press AUD / LD =. “BASS” will appear in the display. : until “TREBLE” ap- Press pears in the display.

  • Page 17: Bass Center Frequency Adjustment

    The bass center frequency adjustment allows you to adjust the bass mid-fre- quency to suit the sound system in your automobile (50 Hz or 100 Hz). To set the bass mid-frequency, press EQ <. “BASS CENTER” will appear in the dis- play.
  • Page 18 In place of the CD changer it is also possible to connect other external au- dio sources to the line output. These sources can include a portable CD play- er, MiniDisc player or MP3 player. You must activate the AUX output in the menu.
  • Page 19 01-6 10 39-0 015 762 241 026 130 04 41 800-266 25 28 006 535 054 47 042 175 873 212 Blaupunkt-Werke GmbH Bosch Gruppe K7/VKD 8 622 402 211 Fax: 0 51 21 49 40 02 0 25 25 54 48...

  • Page 20: Installation Instructions

    Radio / CD Installation instructions Notice de montage Instrucciones de instalación Instruções de montagem...

  • Page 21: Safety Instructions

    - Do not connect the vehicle’s plug connectors to the radio! - You can obtain the adapter cable required for your vehicle type from any BLAUPUNKT dealer. Consignes de sécurité Respecter les consignes de sécurité suivantes pendant la durée du montage et du branchement.

  • Page 22: Instruções De Segurança

    - Los cables adaptadores necesarios para su vehículo los encontrará en el comercio especializado en artículos de la marca BLAUPUNKT. Instruções de segurança Durante a montagem e a ligação do aparelho, queira respeitar as seguintes instruções de segurança. - Separar o pólo negativo da bateria ! Respeitar ao mesmo tempo as instruções de segurança do...
  • Page 23 1 2 V 7 607 621 . . . Car-specific adapter cable which is available at your dealer. Câble adaptateur spécifique au véhicule, disponible dans le commerce. Adaptador específico del vehículo, el cual se puede adquirir en el comercio especializado. Cabo de adaptação específico do automóvel que pode ser adquirido no comércio especializado.

  • Page 24: Remote Control

    Line Out LR Line Out RR Line Out GND Line Out LF Line Out RF +12V Amplifier Equalizer Telefon Mute Permanent +12V Aut. antenna Kl.15/Ignition Ground RC +12V Remote Control RC - GND Amplifier Remote Control Speaker out RR+ Speaker out RR- Speaker out RF+ Speaker out RF- Speaker out LF+...
  • Page 25 Telefon Mute (low) This information is subject to change without notice! Sous réserve de modifications! Modificaciones reservadas! Sob reserva de alterações! (max. 150 mA) 4 Ohm 4 Ohm 4 Ohm 4 Ohm 1 3 5 Relais Kl. 15 +12V 1 2 V...
