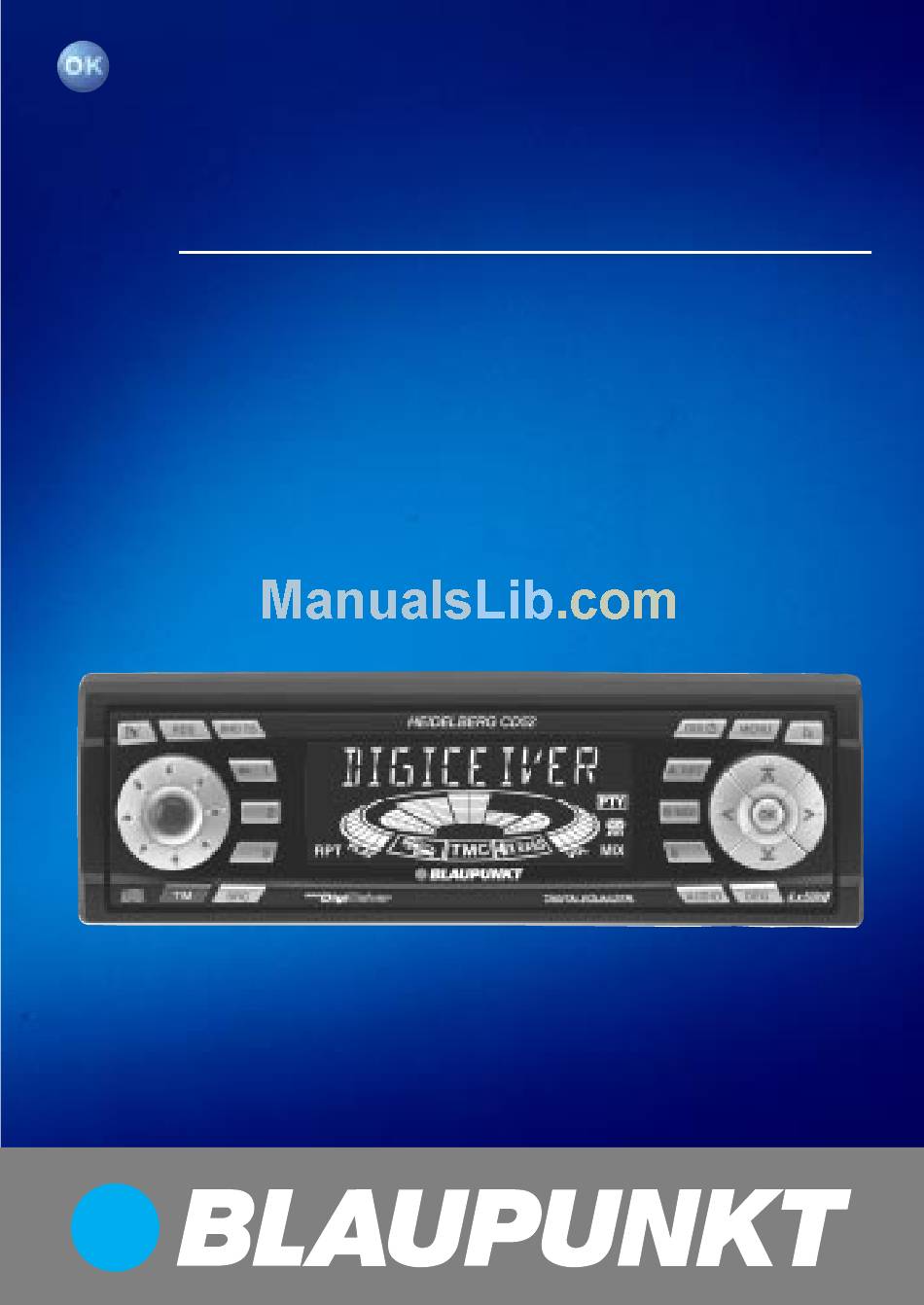

- Page 1 Radio / CD Radio / CD Heidelberg CD52 Operating instructions 7 642 280 310 http://www.blaupunkt.com http://www.blaupunkt.com...
- Page 2 Open here...
- Page 4 button - unlatches the flip/ release panel Volume control Button - switches the radio and mute function on/off RDS button - switches RDS con- venience function on/off (radio data system). Selects variable radio texts. BND button (band), source se- lection for radio mode, selection of FM memory levels and the wavebands MW and LW TS, starts the Travelstore func-...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Notes and accessories ... 35 Flip/release panel ... 37 Switching on/off ... 38 Volume adjustment ... 38 Radio mode ... 40 Setting the tuner ... 40 Switching to radio mode ... 40 RDS function (AF, REG) ... 40 Selecting the waveband/memory ... -
Page 6: Notes And Accessories
RC 08, RC 10 or RC 10H (available as an optional ex- tra). The radio cannot be switched on/off via remote control. Amplifiers All Blaupunkt amplifiers are suitable for use with the radio. - Page 7 You can find out for which vehicles such an interface is available from your Blau- punkt dealer or from the Blaupunkt tel- ephone hotline.
-
Page 8: Flip/Release Panel
Flip/release panel Theft protection Your car radio is fitted with a flip/release panel to guard against theft. Without this panel, the unit is worthless to the thief. Protect your unit from theft by taking the flip/release panel with you every time you leave the car. -
Page 9: Switching On/Off
SWITCHING ON/OFF Switching on/off There are various ways of switching the car radio on and off, as described be- low. Switching on/off using the ignition If the car radio is correctly connected to the ignition and has not been switched off using the button 3, it is switched on/off simultaneously with the ignition. - Page 10 For this, you need adapter cable Blaupunkt no. 7 607 001 503. To find out which navigation systems are compatible with your car radio, please consult your Blaupunkt dealer.
-
Page 11: Radio Mode
RADIO MODE Radio mode This unit is equipped with an RDS radio receiver. Many of the receivable FM sta- tions transmit a signal that not only car- ries the programme but also additional information such as the station name and programme type (PTY). The station name appears on the dis- play as soon as it is received. -
Page 12: Selecting The Waveband/Memory
Switching the RDS convenience function on/off To use the RDS functions AF and REG, press the RDS button 4. The RDS convenience functions are active when RDS lights up on the dis- play with a symbol. When the RDS con- venience functions are activated, “REG ON”... -
Page 13: Storing Stations
RADIO MODE buttons : to set the Use the desired degree of sensitivity. When you have completed the set- tings, press the MENU button 8 or the OK buttons ;. Storing stations Storing stations manually Select the required FM memory level, FM1, FM2, FMT or either waveband MW or LW. -
Page 14: Programm-Typ (Pty)
Programm-Typ (PTY) Besides transmitting the station name, some FM stations also provide informa- tion on the type of programme they are currently broadcasting. This information can be received and displayed by your car radio. For example, the programme types can CULTURE TRAVEL SPORT... -
Page 15: Optimising Radio Reception
RADIO MODE Storing the programme type on the preset station buttons button : to select Use the a programme type. Hold down the desired preset sta- tion button 1 - 6 > for more than two seconds. The programme type is now stored on the selected preset station button 1 - 6 >. -
Page 16: Setting The Display
RADIO MODE Note: If you tune into an already stored sta- tion using a different means (e.g. using SCAN or by searching), the “scrolling texts” will be displayed. Setting the display In radio mode you can choose between the continuous display of the time or the continuous display of the station name/ frequency. -
Page 17: Traffic Information Memo (Tim)
TRAFFIC INFORMATION Setting the traffic announcement volume Press the MENU button 8. button : repeatedly Press the until “TA VOLUME” appears on the display. button : to set the Use the desired volume. Once the setting is completed, press the MENU button 8 or OK Note: You can also adjust the volume during a traffic announcement for its duration... - Page 18 Playback of recorded traffic announcements When the TIM function is activated, all incoming traffic announcements of the last station listened to are automatical- ly saved. If the last station listened to is no longer receivable, the unit automati- cally retunes to a new station. Press the TIM button @.
-
Page 19: Cd Mode
CD MODE CD Mode You can use this unit to play audio CDs, CD-Rs and CDRWs with a diameter of 12 cm. Risk of damage to CD drive! Single CDs with a diameter of 8 cm and CDs which are not circular (“shape CDs”) should not be used. -
Page 20: Scanning Tracks (Scan)
Scanning tracks (SCAN) You can briefly listen in to all the tracks on a CD. Hold down the OK button ; for more than two seconds. The next track starts to play. Note: The scanning time is adjustable. Read about setting the scanning time in the section “Setting the scanning time”... -
Page 21: Displaying Cd Text
CD MODE Entering/altering CD names Listen to the desired CD. Press the MENU button 8. buttons : to select Use the “CD NAME”. button : twice. Press the You are now in the edit mode. If the CD you have selected is still unnamed, eight underlines appear on the display. -
Page 22: Cd Changer Mode
CD changer mode Note: Information on handling CDs, inserting CDs and operating the CD changer can be found in the operating instructions accompanying your CD changer. Starting CD changer mode Press the SRC button ? repeat- edly until “CHANGER” appears on the display. -
Page 23: Scanning All Tracks On All Cds (Scan)
CD CHANGER MODE Stopping MIX Press the button 5 MIX > until “MIX OFF” appears briefly on the display and MIX goes out. Scanning all tracks on all CDs (SCAN) To listen in briefly to all the tracks on all inserted CDs in ascending order, hold down the OK button ;... -
Page 24: Clock - Time
CD CHANGER MODE Press the OK button ; to return to the menu. Clearing all CD names All CD names saved are deleted. Listen to a CD. Press the MENU button 8. buttons : to select Use the “CDC NAME”. button :. -
Page 25: Tone And Volume Balance
CLOCK - TIME The time appears on the display. The minutes flash and can now be set. Set the minutes using the tons :. Once the minutes have been set, button :. The hours press the now flash. Set the hours using the tons :. - Page 26 Setting the X-BASS X-BASS means that the bass is raised to a comfortable level at lower volume levels. You can adjust the X-BASS func- tion individually for all audio sources. When X-BASS is activated, the X-BASS symbol lights up on the display. Press the AUDIO button =.
-
Page 27: Equalizer
EQUALIZER Equalizer This car radio is fitted with three para- metric digital equalizers, which can be set individually. This means you have the means to save and request differ- ent equalizer settings for different situ- ations (eg only driver, driver and front passenger or vehicle occupants in front and back). -
Page 28: Setting The Equalizer
Setting the equalizer Press the DEQ button <. Select “DIGITAL EQ” using the button :. Select the equalizer “USER EQ1”, “USER EQ2” or “USER EQ3”, which you would like to set by pressing the or the Select the filter using the button :. -
Page 29: Setting Aid For The Equalizer
EQUALIZER Setting aid for the equalizer Commence settings at mid and treble section and complete them in the bass section. Sound impression/problem Bass reproduction too weak Impure bass Booming Disagreeable pressure Sound very dominant, aggressive, no stereo effect Muffled reproduction Low transparency No instrumental brilliance What to do... -
Page 30: External Audio Sources
Your car radio has one TMC output for connection to Blaupunkt navigation systems. Your Blaupunkt dealer will tell you which nav- igation systems can be used with your car radio. When a navigation system is connect- ed and a TMC station received, “TMC”... -
Page 31: Technical Data
TECHNICAL DATA Technical data Amplifier Output power: 4 x 26 watts sine in accordance with DIN 45 324 at 14.4V, 4 x 50 watts max. power Tuner Frequency ranges: FM : 87.5 - 108 MHz MW : 531 - 1 602 kHz LW : 153 - 279 kHz FM transmission range:... - Page 32 09-435 99236 01-4010 7320 01-89583 8394 01-4598830 02-369 6464 40 2085 023-565 6331 66-817 157 01-2185 11111 916-467952 08-7501810 01-8471650 02-6130 0514 01-324 8756 022-8771260 0212-3460040 708-6817188 +55-19 3745 2773 +604-6413 640 Blaupunkt GmbH CM/PSS 8 622 403 156 WWW: http://www.blaupunkt.com...
