Intended use
The unit is the supplementary root-canal treatment device, which
can assist the dentists to operate more standard root-canal in the
process of root-canal treatment.
Construction and installation
This product is consist of main unit, foot switch, test wire, handle,
file holder, lip hook, handle base and so on.
Main unit
Foot switch
Test wire

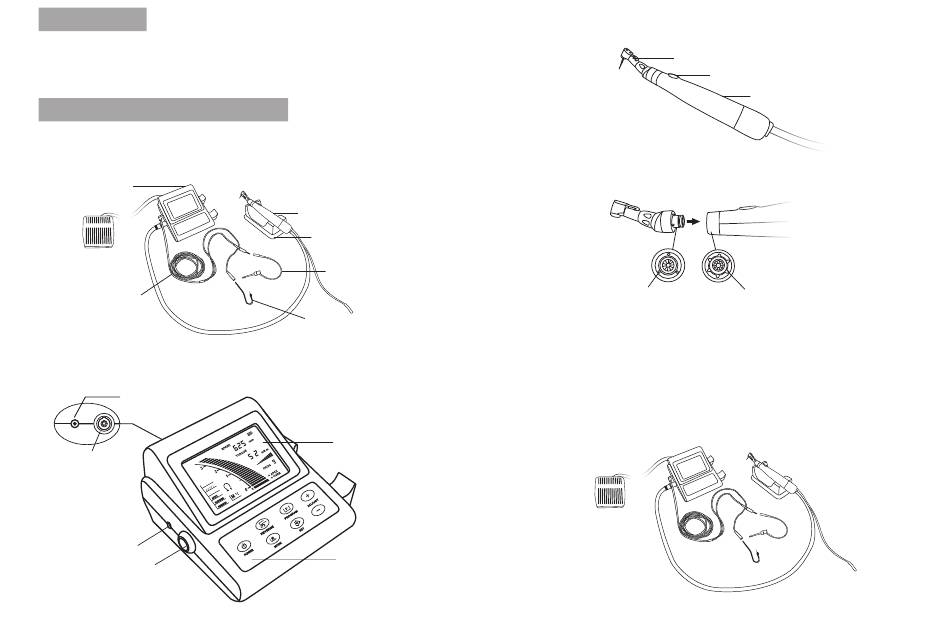

Structure and theory — main unit
Adaptor jack
Foot switch jack
Test wire jack
Endo motor jack
Handle
Handle base
File holder
Lip hook
LCD
Operation panel
3
Structure and theory — motor handle
Contra angle
Install the contra angle
Contra angle's
interface
locating points
1. Please clean all the parts that have contacted to patient before using.
2. Aim the anchor points on the connector of the contra angle to
the slot inside the unit to connect both parts, there is click after
the correct installation.
3. Six directions of contra angle are available, between each
direction is 60°.
Install the main unit
Start button
Motor handle
Handle's
interface
locating slot
4
