Ikelite 0591.4 Instruction Manual

Battery cover

0591. 4 B a t t e r y C o v e r

I n s t r u c t i o n M a n u a l

Compatible with Ni-Cad Battery Pack 4066, NiMH Battery Pack 4066.5 and

Li-ion Battery Pack 4067 used on DS125, DS160 and DS161 strobes.

The Battery Cover is designed to keep dirt and debris out of the Battery

Pack contact points when the Battery Pack is removed from the Strobe

Head. The Battery Cover DOES NOT create a waterproof seal.

Note: The Battery Cover should be attached to the Battery Pack whenever

traveling or when storing the battery pack separate from the strobe head.

Table of Contents

Need help?

Do you have a question about the 0591.4 and is the answer not in the manual?

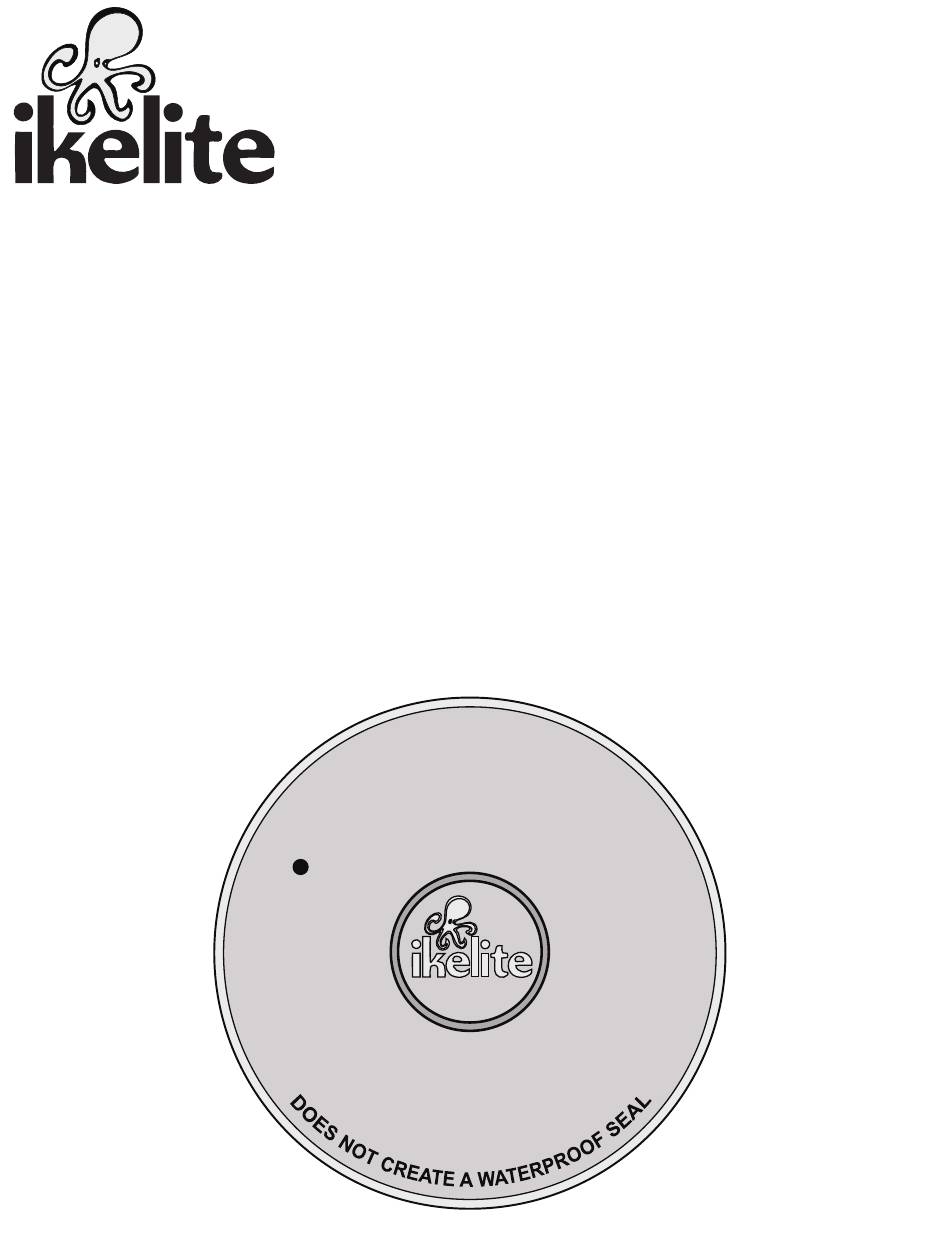

Page 1 0591. 4 B a t t e r y C o v e r I n s t r u c t i o n M a n u a l Compatible with Ni-Cad Battery Pack 4066, NiMH Battery Pack 4066.5 and Li-ion Battery Pack 4067 used on DS125, DS160 and DS161 strobes.
Page 2 Battery Cover Attachment and Removal 1. If the Battery Pack is connected to a Strobe Head, turn the strobe OFF. Place the strobe face down on a flat surface. The Battery Pack (rear section of the strobe) does NOT remain waterproof when removed from the strobe.
Page 3 Attachment and Removal - continued Diagram 2 Charging Socket Index Tab Charging Socket Battery Pack Battery Cover Diagram 3 Toggle (in the open position) Batt w/Lite w/Lite...
Page 4 Battery Pack while locking w/Lite Toggle Push Toggle up to Lock Ikelite Customer Support Email: ikelite@ikelite.com Phone: 317-923-4523 Fax: 317-924-7988 Ikelite Underwater Systems 50 West 33rd Street Indianapolis, IN 46208 USA www.ikelite.com © 2014 Ikelite Underwater Systems 0591.4_Battery_Cover_01-0614...
